Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

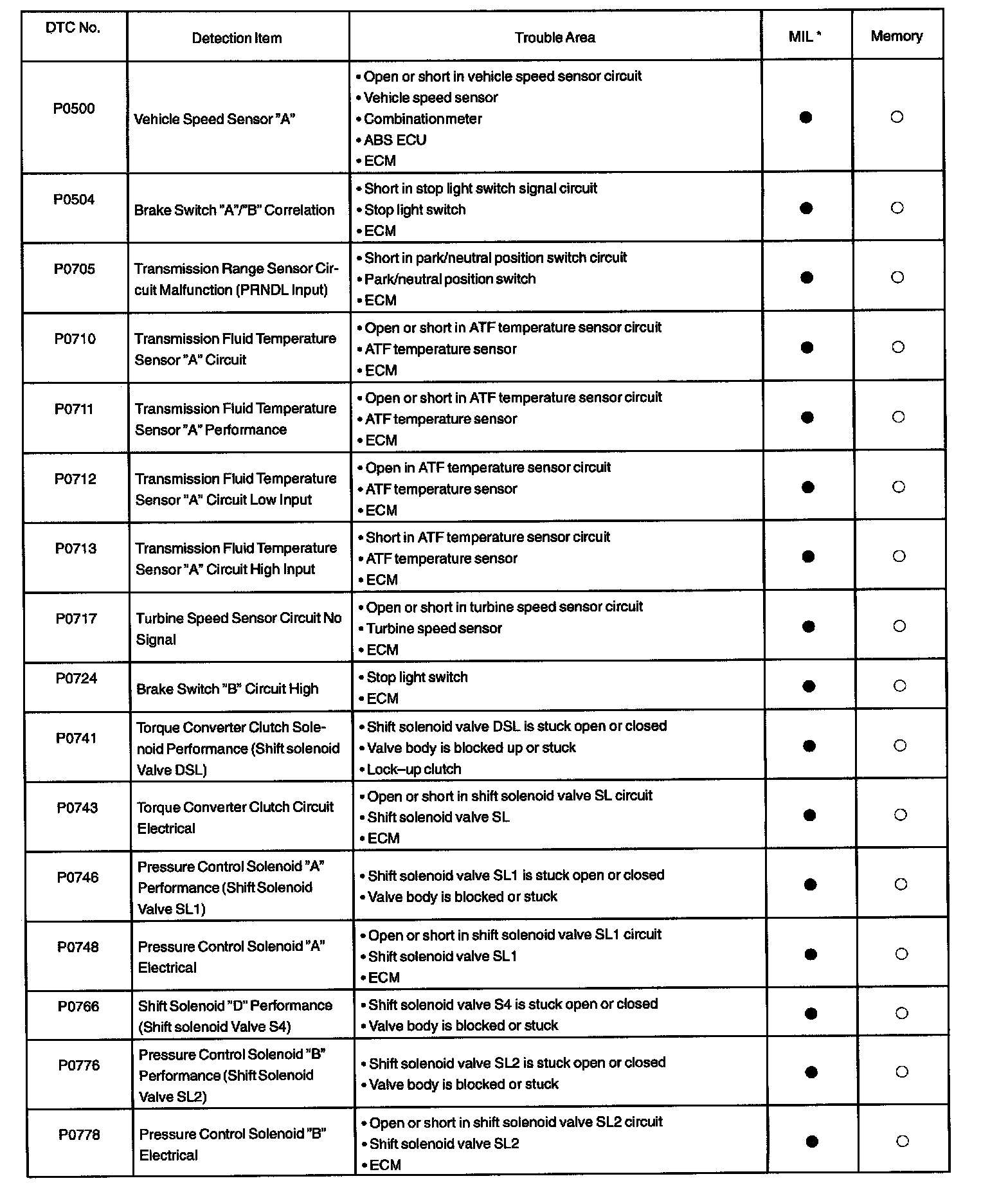

DTC P0500 - P0778:

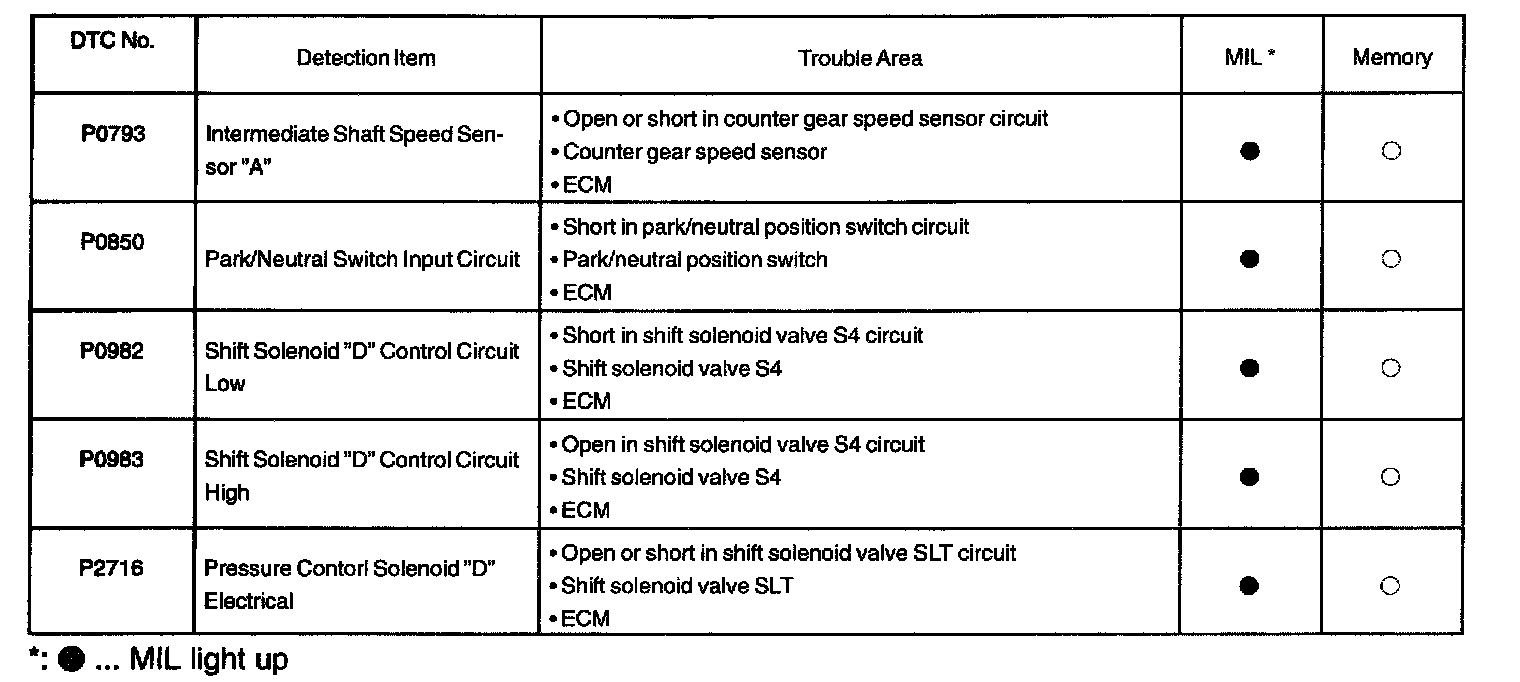

DTC P0583 - P2716:

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table and proceed to the corresponding troubleshooting.
