Multiple Junction Connector: Application and ID

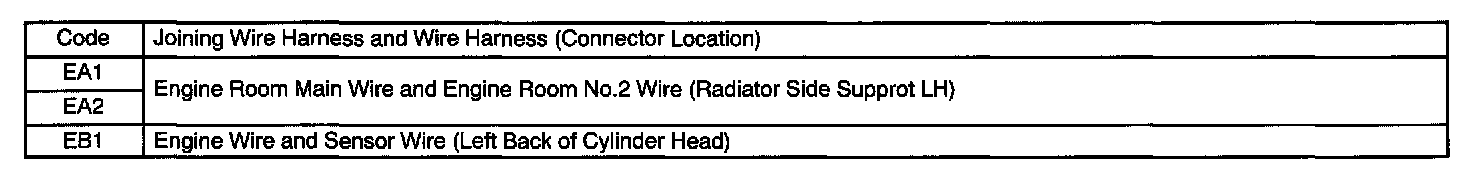

EA1 - EB1:

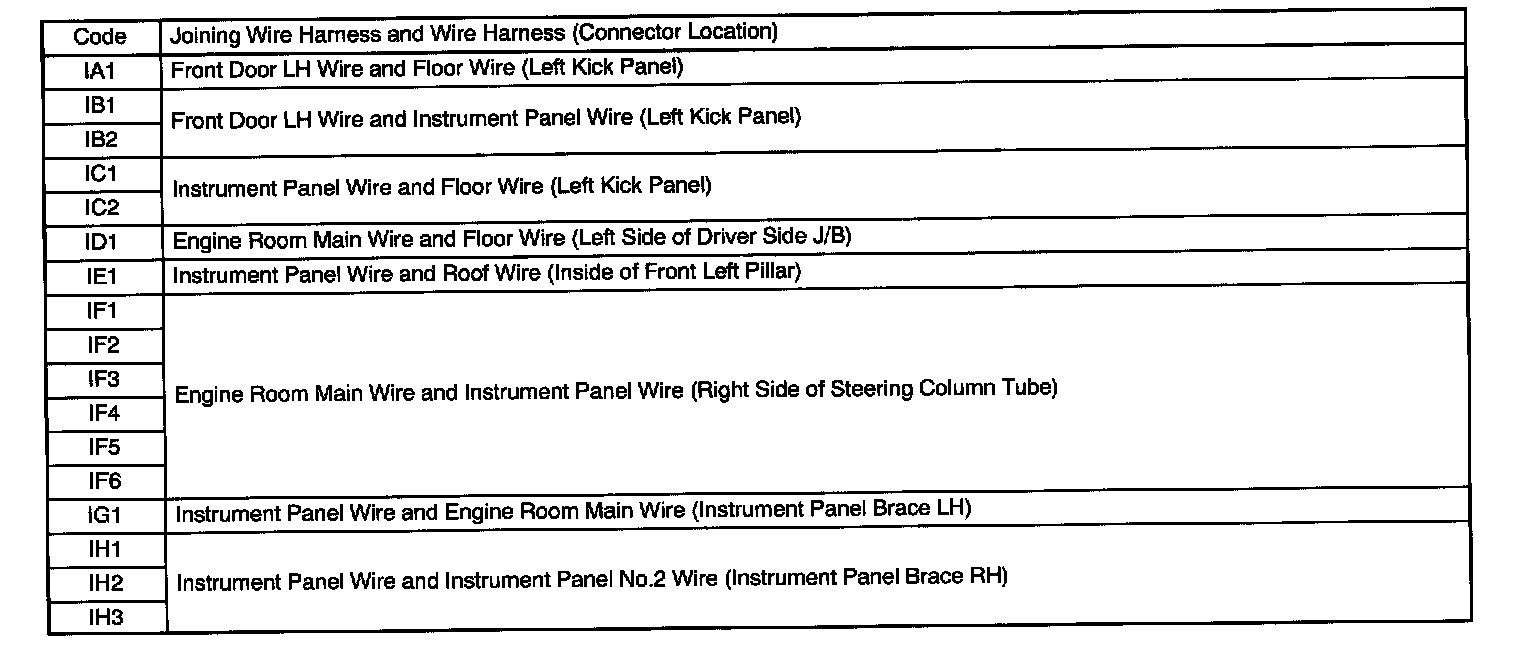

IA1 - IH3:




II1 - IN4:




BA1 - BC1:

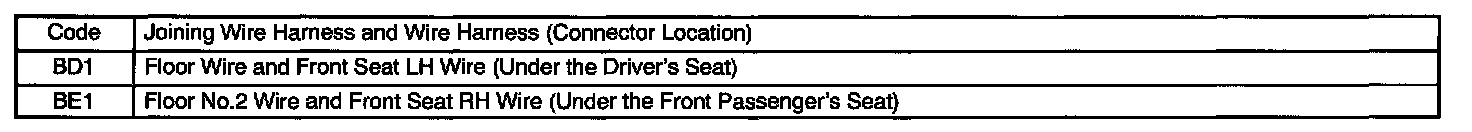

BD1 - BE1:
