Oil Filter: Service and Repair
REPLACEMENT1. REMOVE ENGINE UNDER COVER RH
2. REMOVE OIL FILTER SUB-ASSY

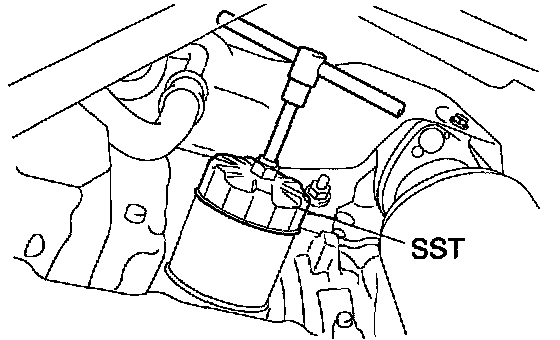

a. Using SST, remove the oil filter.
SST 09228-07501
3. INSTALL OIL FILTER SUB-ASSY
a. Check and clean the oil filter installation surface.

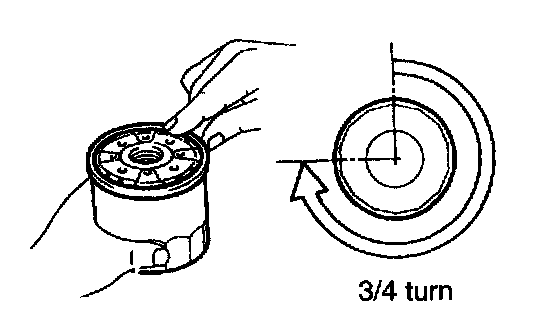

b. Apply clean engine oil to the gasket of a new oil filter.
c. Lightly screw the oil filter into place, and tighten it until the gasket contacts the seat.
d. Using SST, tighten it an additional 3/4 turn.
SST 09228-07501
4. ADD ENGINE OIL
a. Add new oil.
Oil capacity:
Drain and refill w/ oil filter change: 4.7 liters (5.0 US qts, 4.1 Imp. qts)
Drain and refill w/o oil filter change: 4.5 liters (4.8 US qts, 4.0 Imp. qts)
Dry fill: 5.5 liters (5.8 US qts, 4.8 Imp. qts)
b. Install the oil filler cap.
5. INSPECT OIL LEAK
