Dashboard / Instrument Panel
Dashboard / Instrument Panel

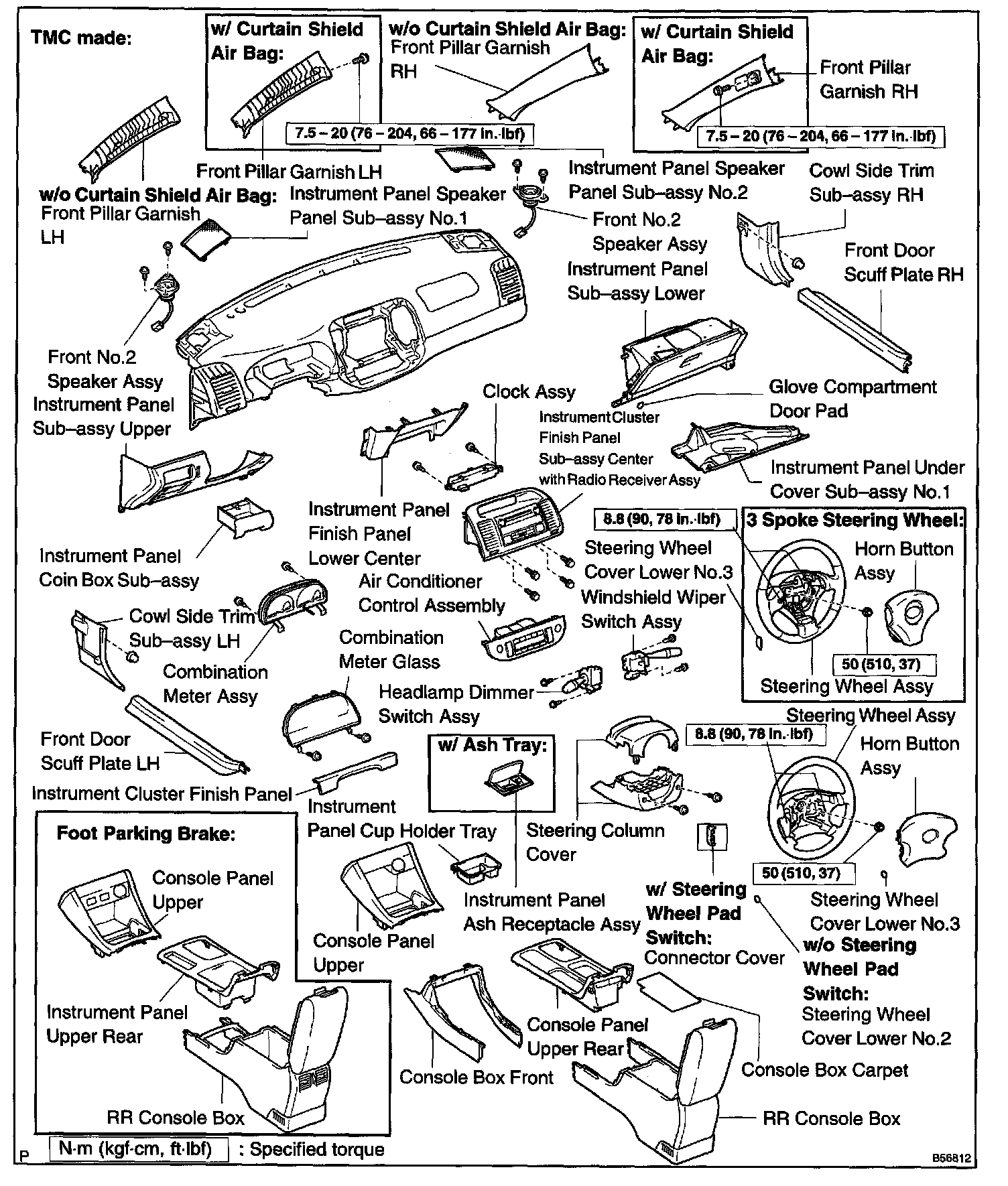

INSTR PNL Pass L/Door Air Bag Assy (Part 1):
INSTR PNL Pass L/Door Air Bag Assy (Part 2):

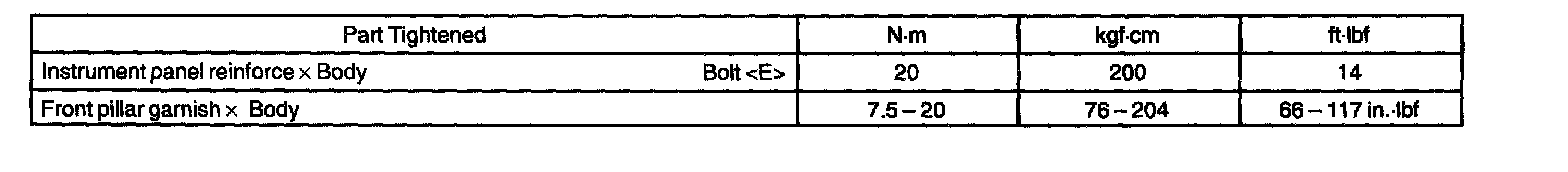

Instrument Panel/Meter - Torque Specification:
