Component Tests and General Diagnostics

INSPECTION

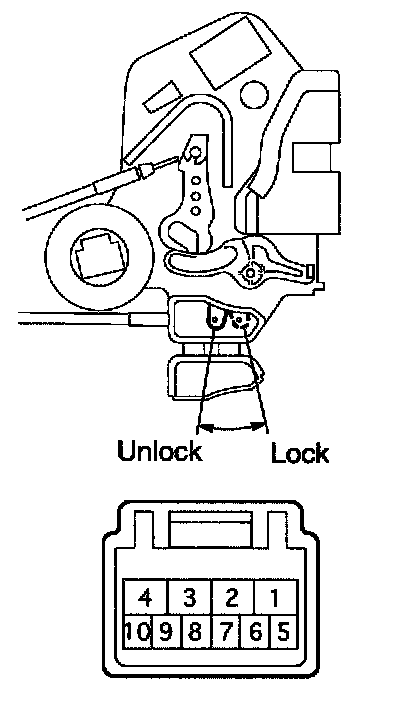

1. INSPECT FRONT DOOR W/MOTOR LOCK ASSY RH

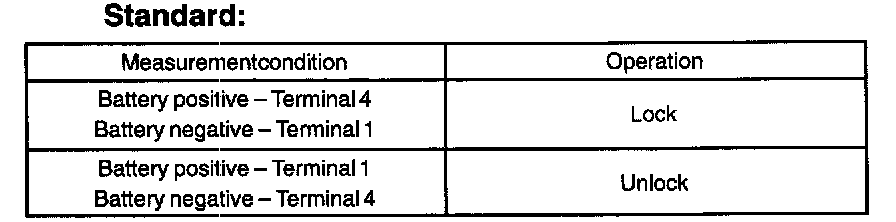

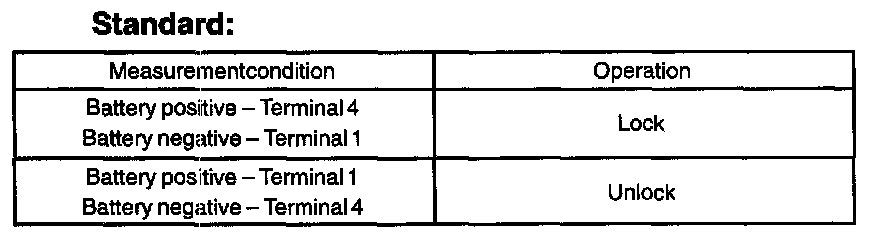

a. Inspect operation of the door lock motor.
If the operation is not as specified, replace the door lock assembly.

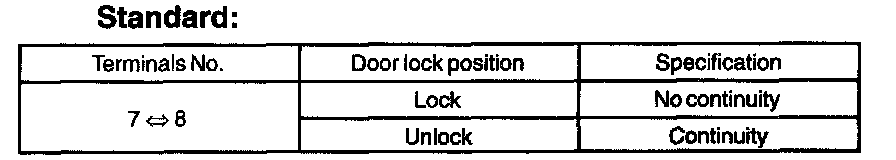

b. Inspect the position switch continuity.
If the continuity is not as specified, replace the door lock assembly.

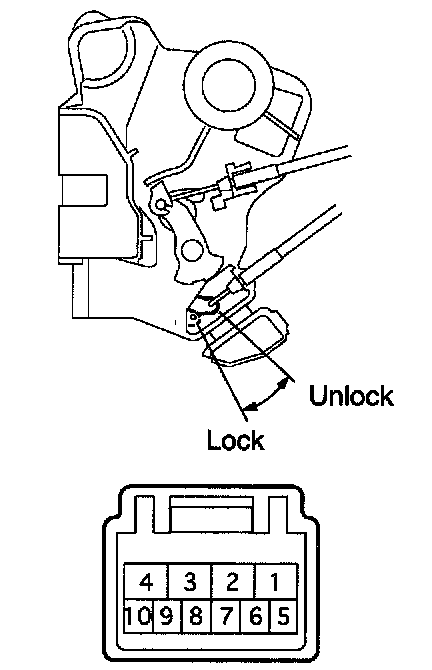

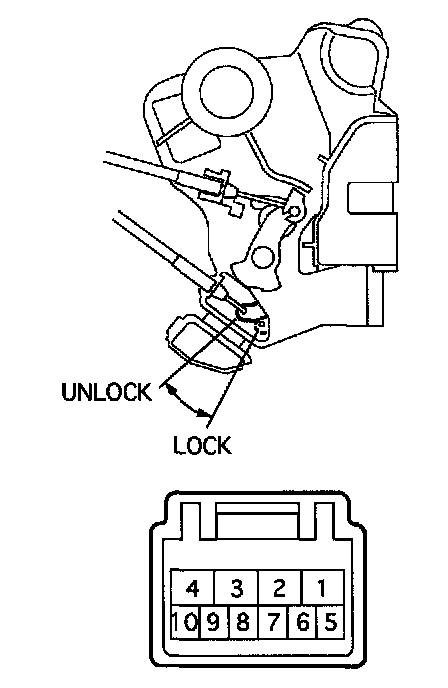

2. INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH







a. Inspect the door lock assembly continuity.
If the operation is not as specified, replace the door lock assembly.

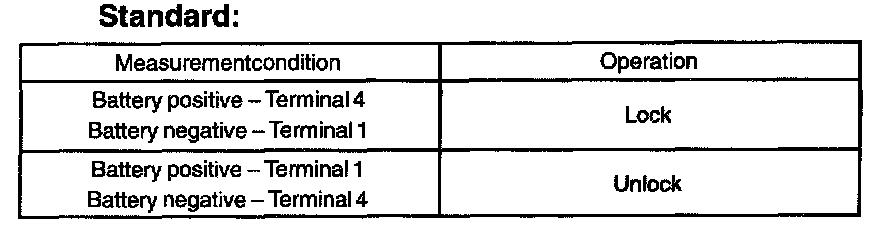

b. Inspect the door lock motor operation.
If the operation is not as specified, replace the door lock assembly.

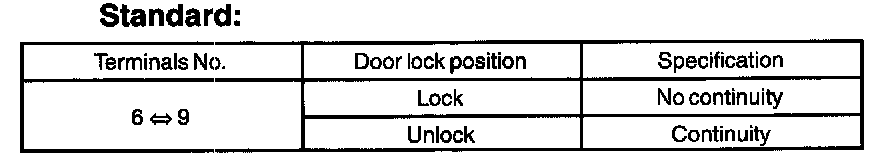

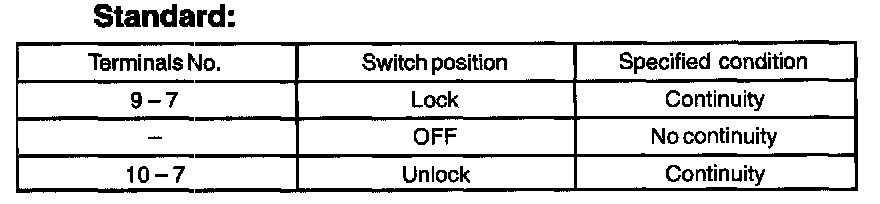

c. Inspect the position switch continuity.
If the operation is not as specified, replace the door lock assembly.

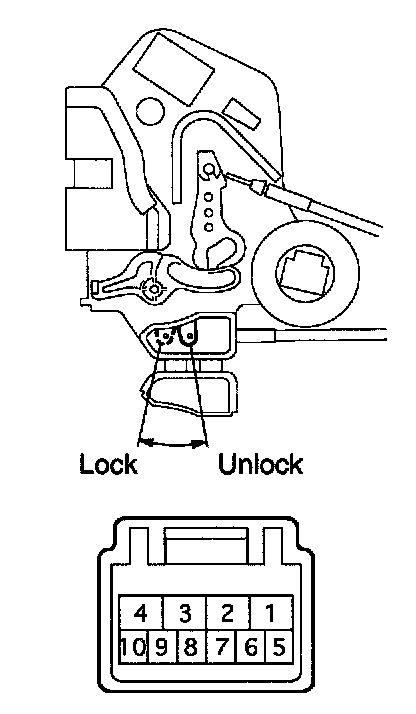

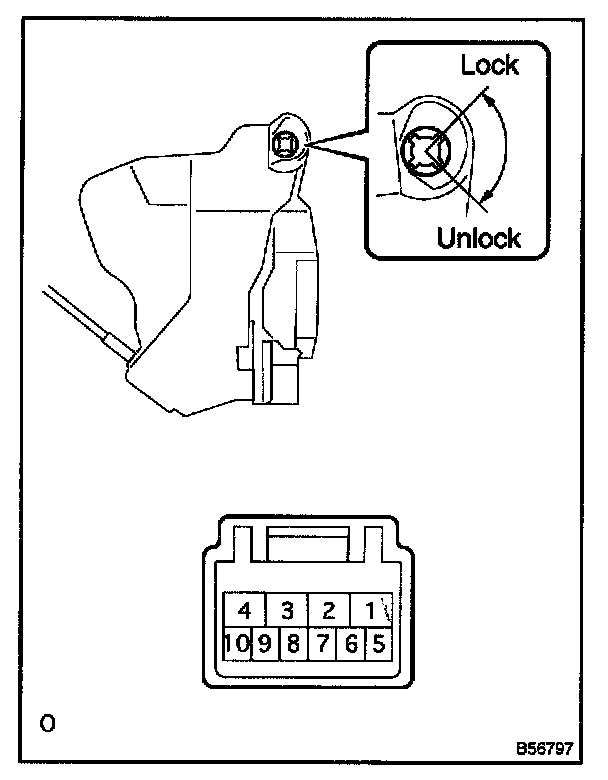

3. INSPECT REAR DOOR W/MOTOR LOCK ASSY RH

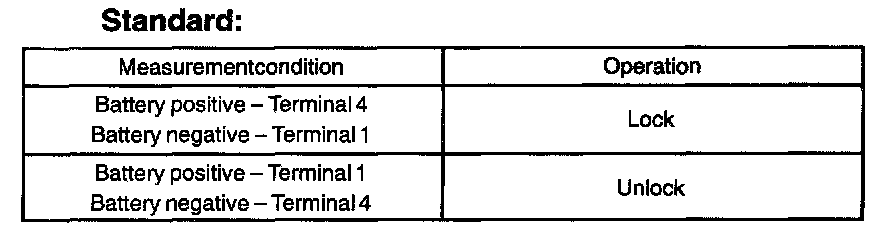

a. Inspect the door lock motor operation.
If the operation is not as specified, replace the door lock assembly.

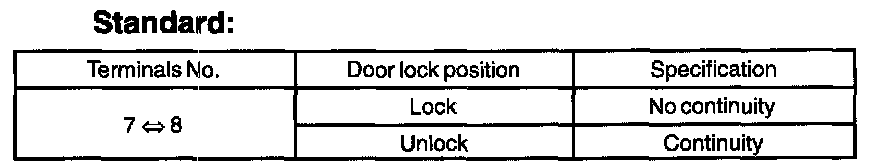

b. Inspect the position switch continuity.
If the operation is not as specified, replace the door lock assembly.




4. INSPECT REAR DOOR W/MOTOR LOCK ASSY LH




a. Inspect the door lock motor operation.
If the operation is not as specified, replace the door lock assembly.




b. Inspect the position switch continuity.
If the operation is not as specified, replace the door lock assembly.

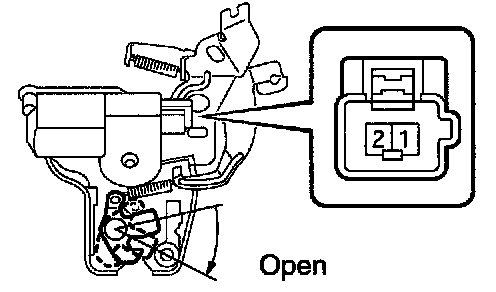

5. LUGGAGE COMPARTMENT DOOR LOCK ASSY

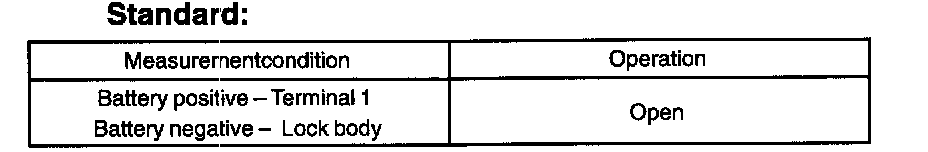

a. Inspect the door lock motor operation.
If the operation is not as specified, replace the door lock assembly.
