Troubleshooting
DTC P2196 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1)CIRCUIT DESCRIPTION
DTC Detecting Condition:
HINT:
This DTC is recorded when A/F sensor is in a malfunction, although the caption is oxygen sensor. To obtain a high purification rate of the CO, HC and NOx components of the exhaust gas, a three-way catalytic converter is used. For the most efficient use of the three-way catalytic converter, the air-fuel ratio must be precisely controlled so that it is always close to the stoichiometric air-fuel ratio.
The A/F sensor has the characteristic that it provides output voltage* being approximately proportional to the existing air-fuel ratio. The A/F sensor output voltage* is used to provide feedback for the ECM to control the air-fuel ratio.
By the A/F sensor output, the ECM can determine the deviation amount from the stoichiometric air-fuel ratio and control the proper injection time immediately. If the A/F sensor is out of order, ECM is unable to perform the accurate air-fuel ratio control.
The A/F sensor is equipped with a heater which heats the zirconia element. The heater is controlled by the ECM. When the intake air volume is low (the temperature of the exhaust gas is low), the current flows to the heater to heat the sensor for the accurate oxygen concentration detection.
*: The voltage value changes at the inside of the ECM only.
HINT:
- DTCs P2195 and P2196 means malfunction related to bank 1 A/F sensor circuit.
- DTCs P2197 and P2198 means malfunction related to bank 2 A/F sensor circuit.
- Bank 1 refers to the bank that includes cylinder No. 1.
- Bank 2 refers to the bank that includes cylinder No. 2.
- Sensor 1 refers to the sensor closest to the engine body.
- After confirming DTC P2195, P2196, P2197 and P2198 use the OBD II scan tool or the hand-held tester to confirm voltage output of A/F sensor (AFS B1S1/AFS B2S1) from the "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL DATA".
- The A/F sensor's output voltage and the short-term fuel trim value can be read using the OBD II scan tool or the hand-held tester.
- The ECM controls the voltage of the AFR+, AFL+, AFR- and AFL- terminals of the ECM to the fixed voltage. Therefore, it is impossible to confirm the A/F sensor output voltage without the OBD II scan tool or the hand-held tester.
- The OBD II scan tool (excluding hand-held tester) displays the one fifth of the A/F sensor output voltage which is displayed on the hand-held tester.
Wiring Diagram:
CONFIRMATION DRIVING PATTERN
Confirmation Driving Pattern:
1. Connect the hand-held tester to the DLC3. (*1)
2. Switch the hand-held tester from the normal mode to the check mode.(*1)
3. Start the engine and warm it up with all the accessory switches OFF.(*2)
4. Drive the vehicle at 60 - 120 km/h (38 - 75 mph) and engine speed at 1,400 - 3,200 rpm for 3 - 5 min.(*3)
HINT: If a malfunction exists, the MIL will light up during step (*3)
NOTE:
If the conditions in this test are not strictly followed, detection of the malfunction will not be possible.
If you do not have a hand-held tester, turn the ignition switch OFF after performing steps (*2) and (*3), then perform steps (*2) and (*3) again.

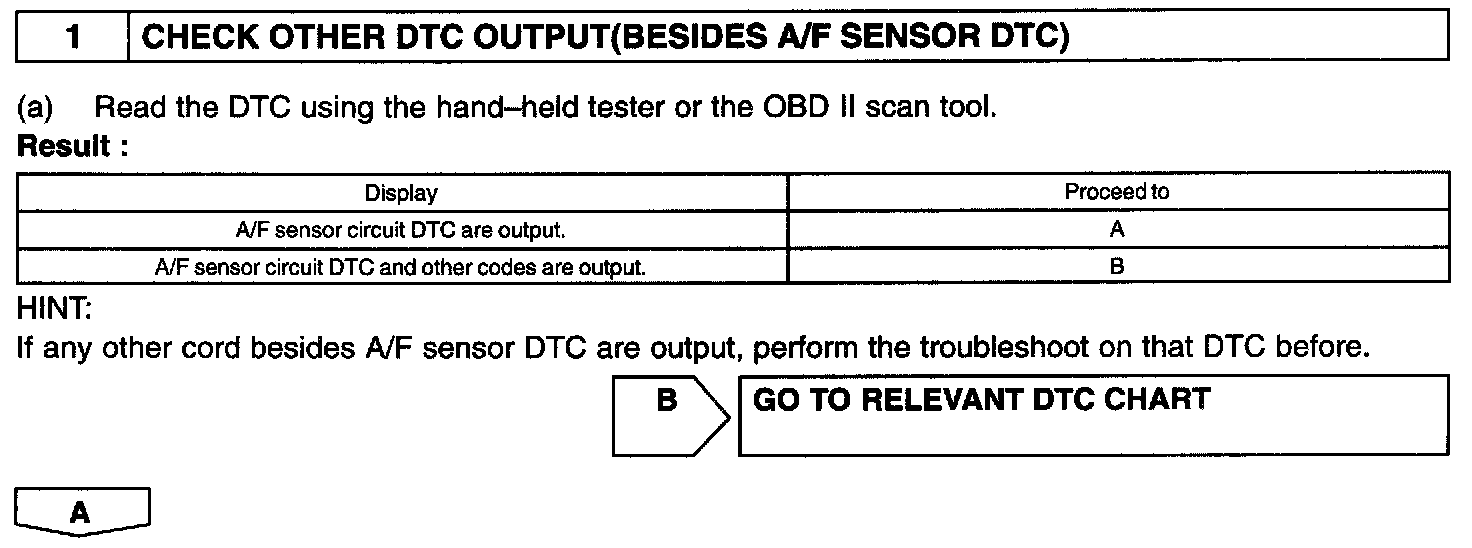

Step 1:

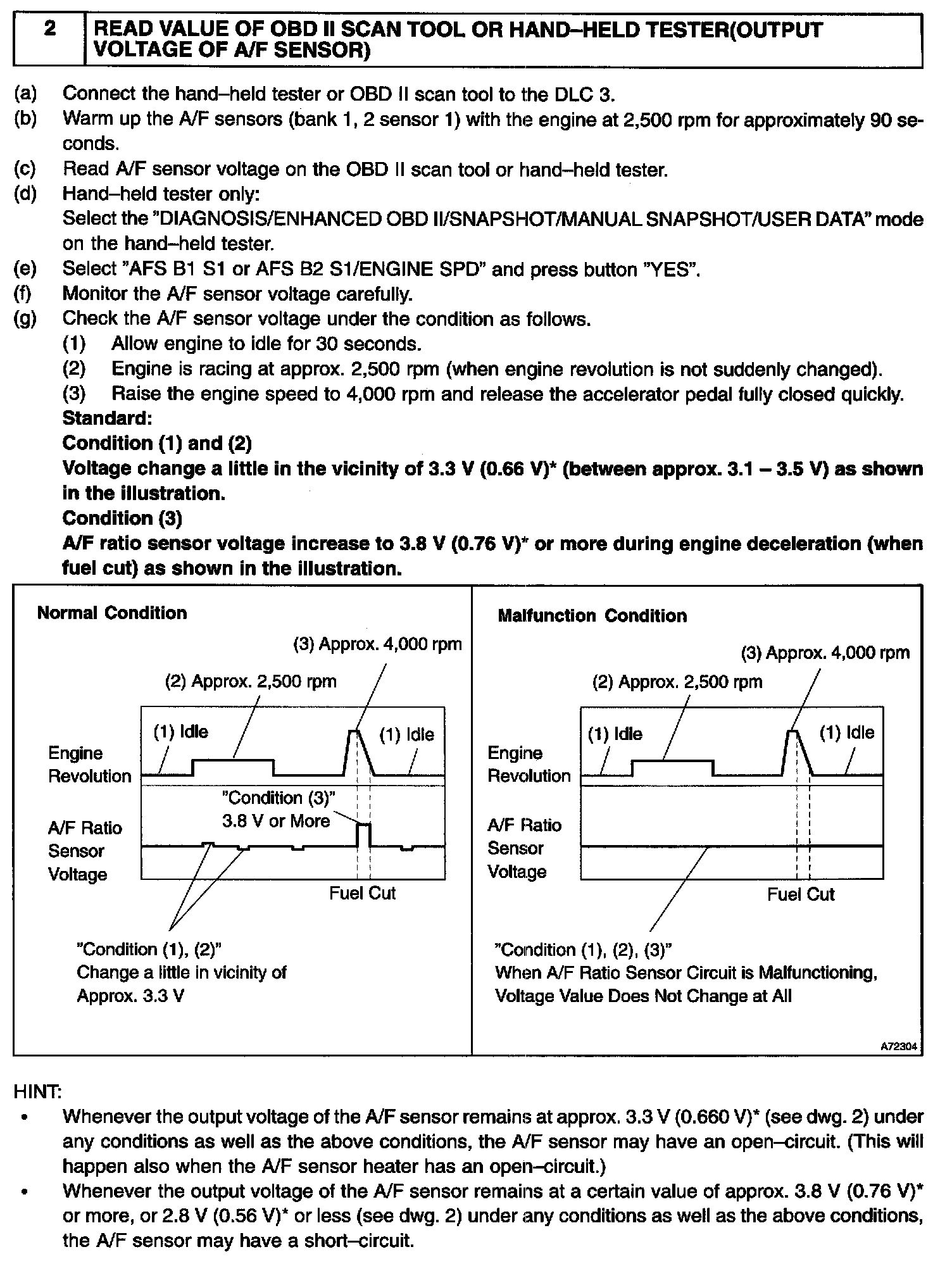

Step 2:
Step 2 (continued) - 4:

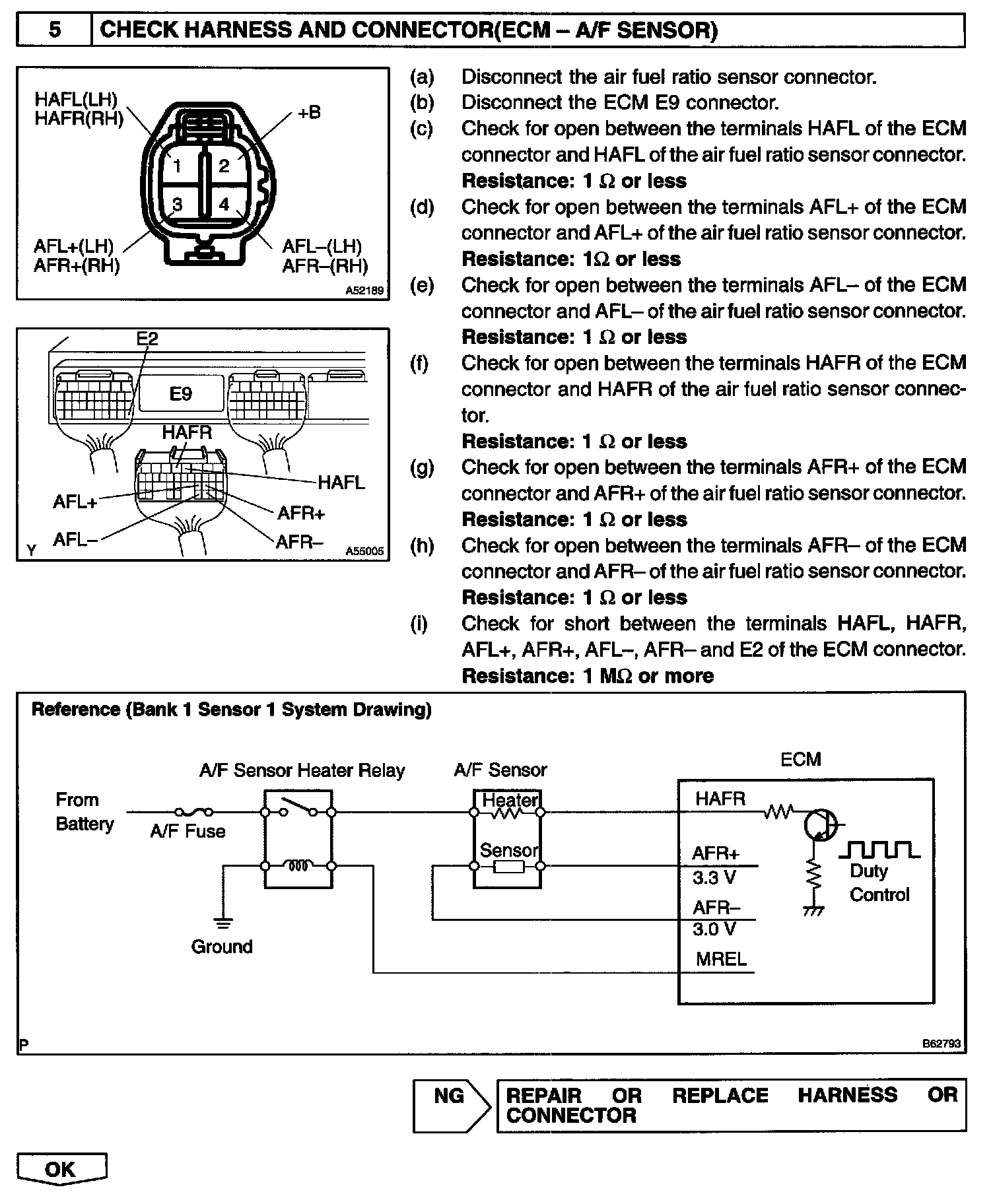

Step 5:

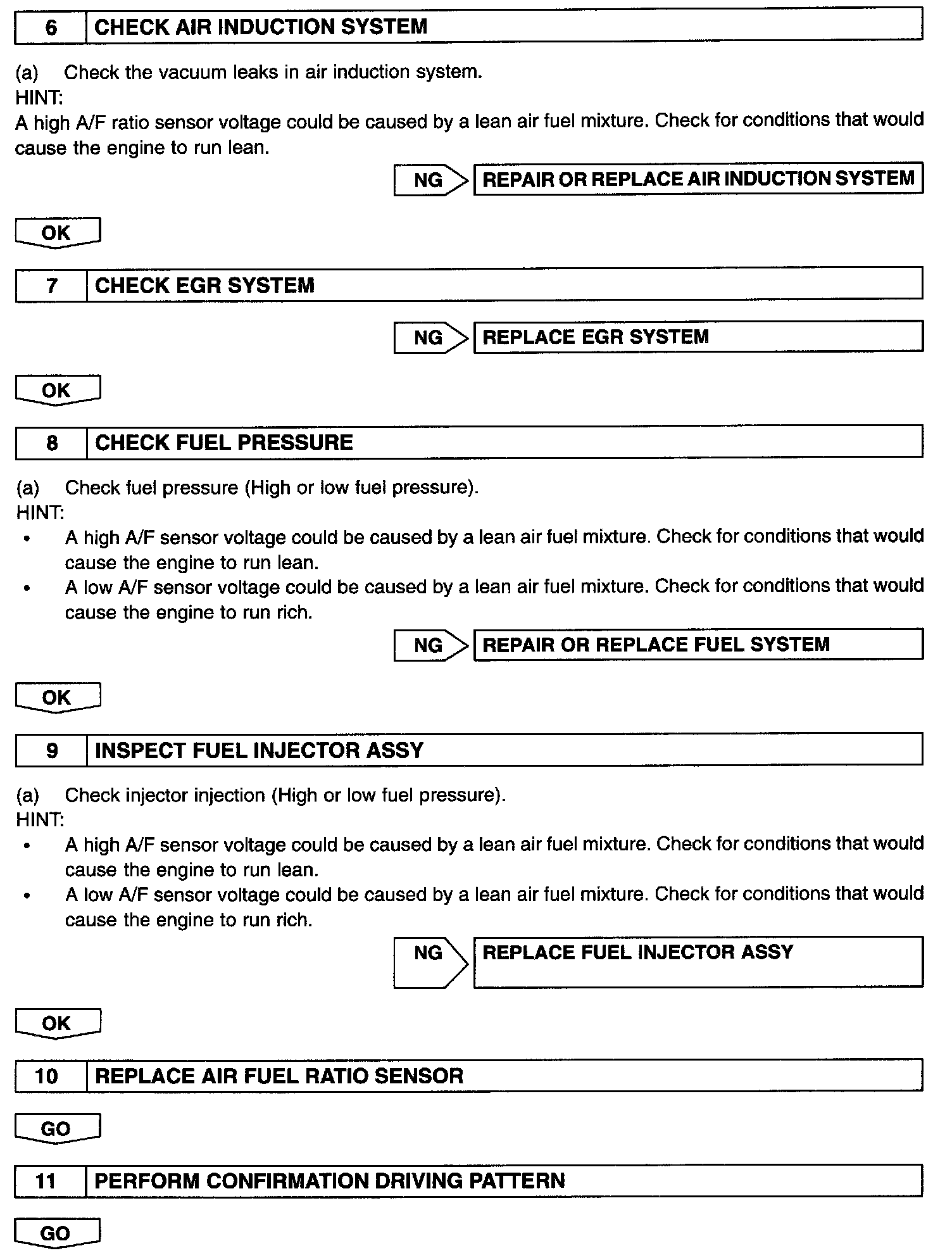

Step 6 - 11:

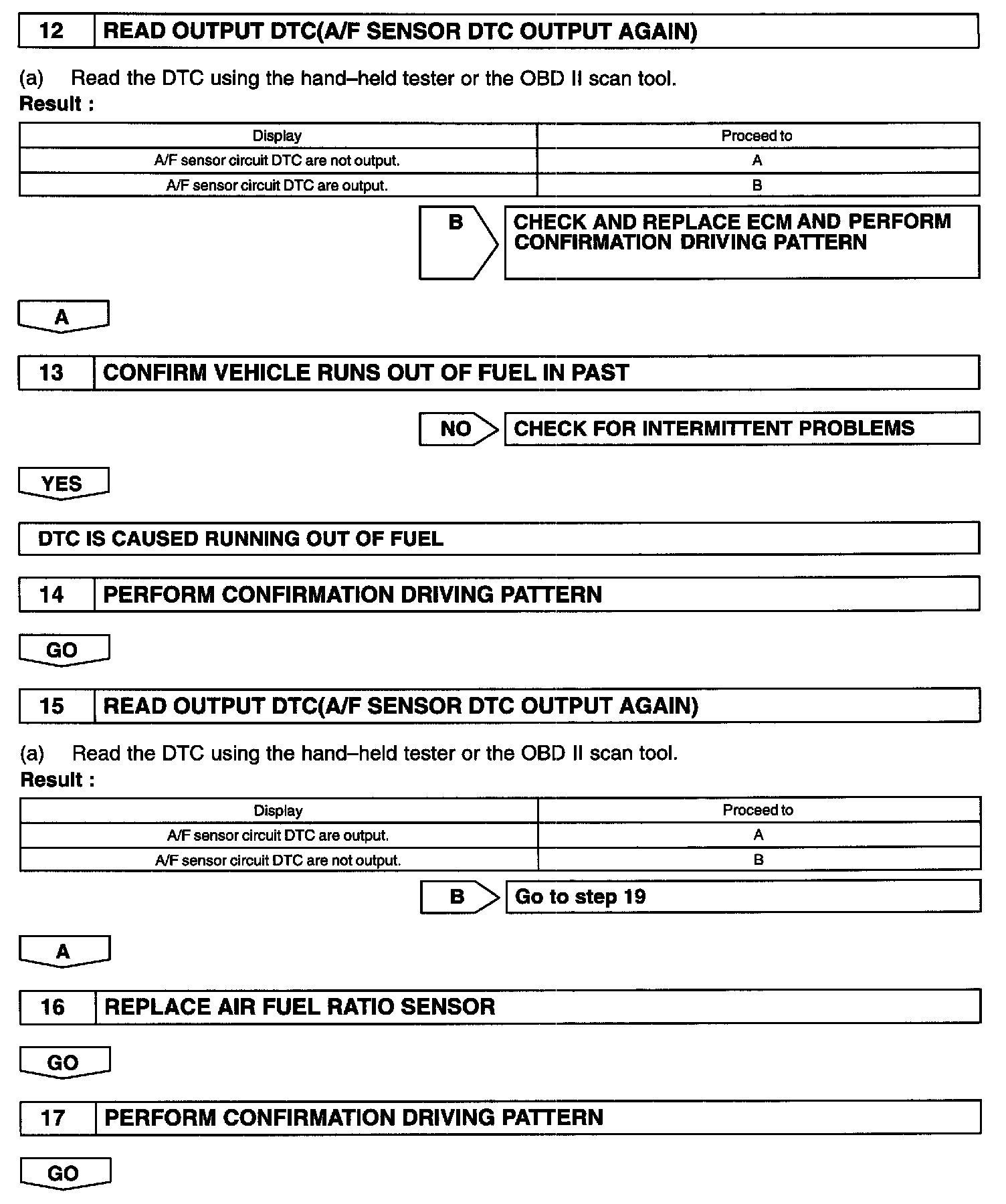

Step 12 - 17:

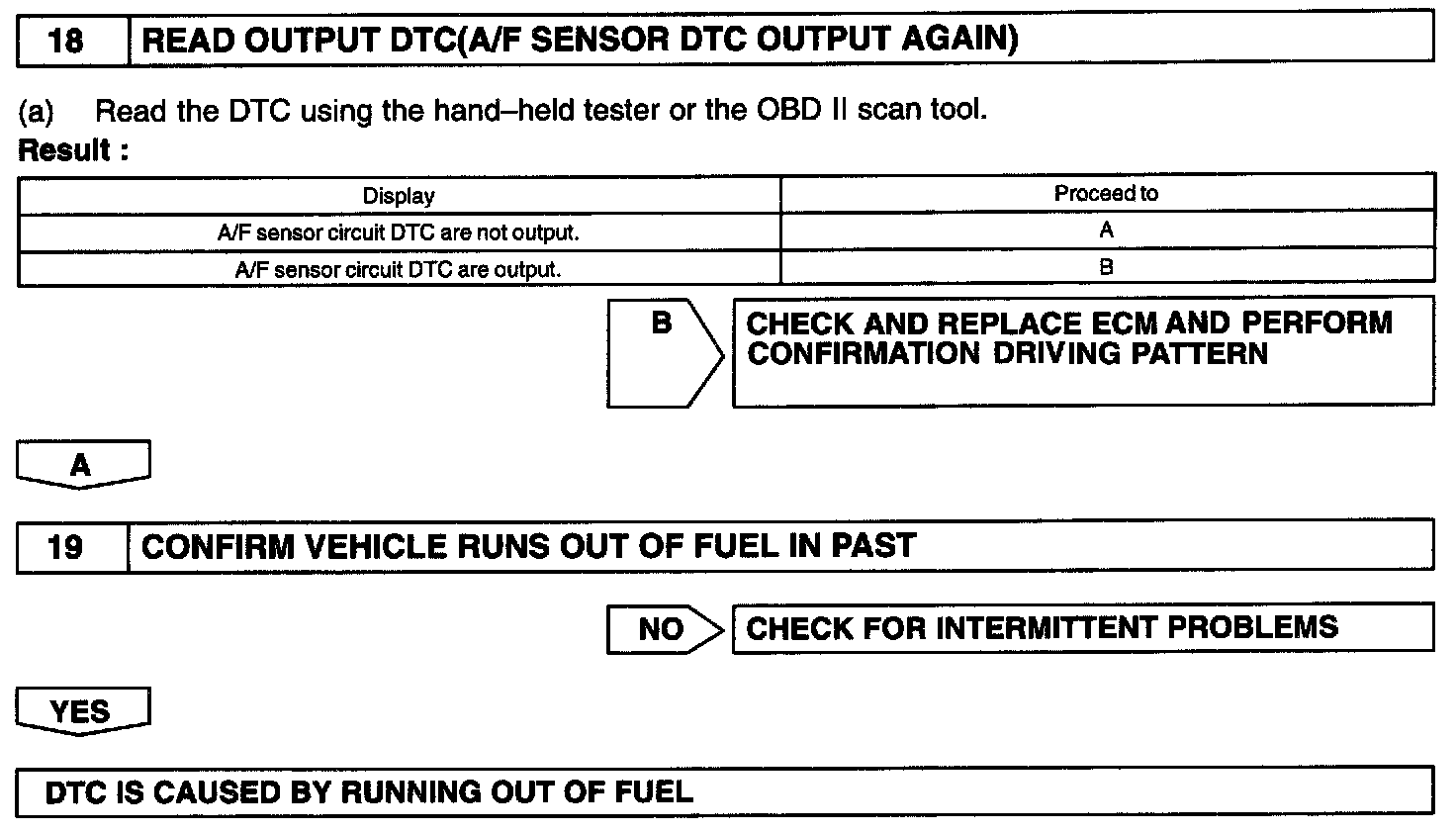

Step 18 - 19:
INSPECTION PROCEDURE
HINT:
- If DTC P2195 or P2196 is displayed, check bank 1 sensor 1 circuit.
- If DTC P2197 or P2198 is displayed, check bank 2 sensor 1 circuit.
- Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich. etc. at the time of the malfunction.
CHECK FOR INTERMITTENT PROBLEMS
Hand-held tester only:
By putting the vehicle's ECM in the check mode, the 1 trip detection logic is possible instead of the 2 trip detection logic and the sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.
1. Clear the DTC (See step 2.)
2. Set the check mode (See step 3.)
3. Perform a simulation test.
4. Check the connector and terminal.
5. Handle the connector.
