Brakes - Front Brake Vibration

BRAKES
BR006-02

Title:
FRONT BRAKE VIBRATION

Models:
'02 - '03 Camry (V6 XLE & V6 SE)

December 24, 2002

Introduction

Under certain usage conditions, some 2002 - 2003 model year Camry vehicles may exhibit front brake vibration. The roter and pad have been improved to correct this condition. The new rotor and pad must be installed as a set. The revised parts have been introduced into production.

Applicable Vehicles

^ 2002 - 2003 model year Camry V6 XLE and V6 SE vehicles produced before the VINs shown below.

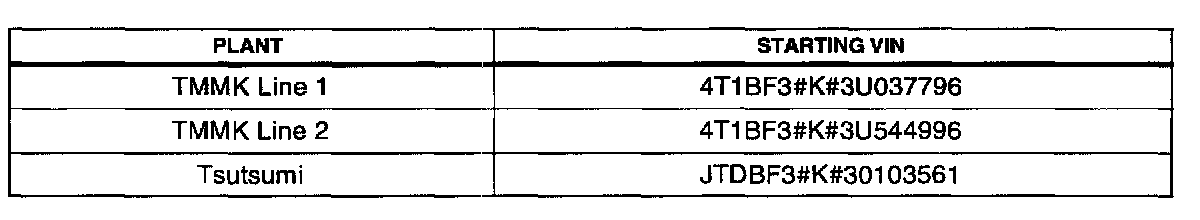

Production Change Information

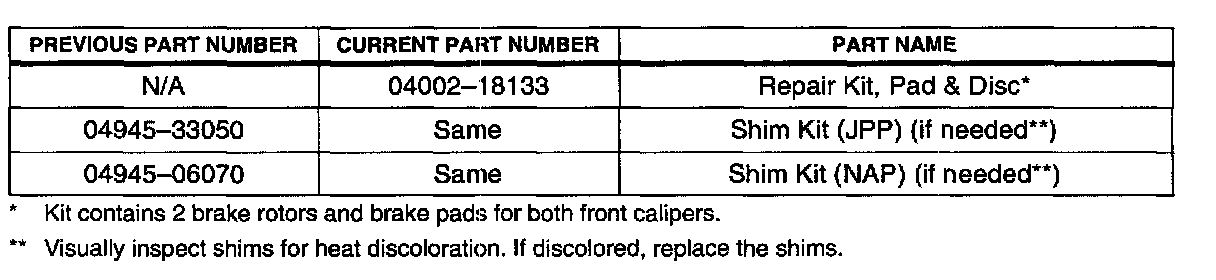

Parts Information

Repair Procedure

1. R & R the brake pads and rotors to lowing the procedures outlined in the applicable Camry Repair Manual.

2. Road test the vehicle.

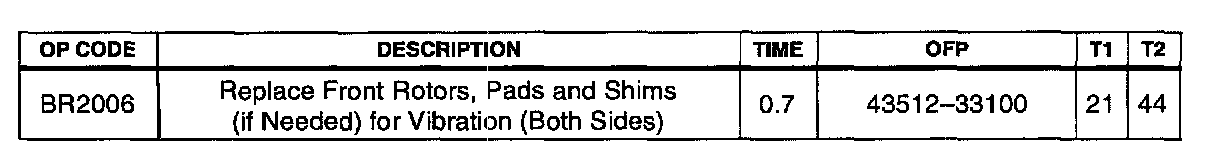

Warranty Information

Applicable Warranty *:

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
