Fuel Pump Relay: Testing and Inspection

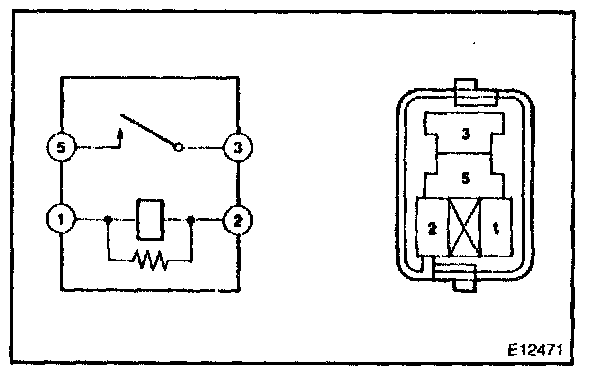

E.F.I. CIRCUIT OPENING RELAY ASSY
a. Continuity inspection.
1. Using an ohmmeter, check that continuity exists between each terminal.

Specified condition:
Between terminal 1 and 2 Continuity
GBetween terminal 3 and 5 No continuity

2. Using an ohmmeter, check that continuity exists between terminals 3 and 5 when the battery voltage is applied across terminals 1 and 2.
