Tail Lamp: Service and Repair

REAR COMBINATION LAMP ASSY LH

REPLACEMENT




1. REMOVE REAR COMBINATION LAMP ASSY LH
a. Remove the service hole cover.

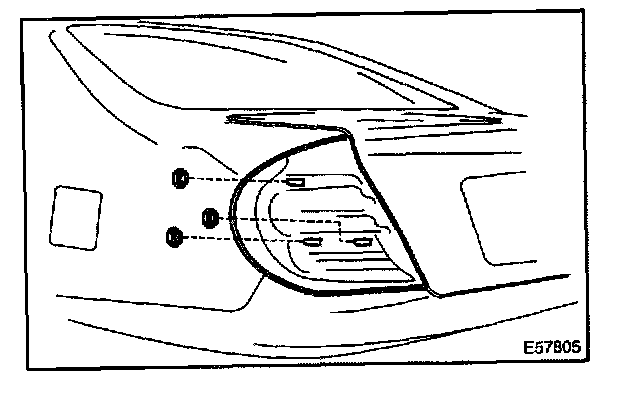

b. Remove the 3 nuts and disconnect the connector of rear combination light.
c. Pull the rear combination light assy to the back of the vehicle, and remove the rear combination light assy.
