License Plate Lamp: Service and Repair

REPLACEMENT

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
2. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE




3. REMOVE LICENSE PLATE LAMP ASSY

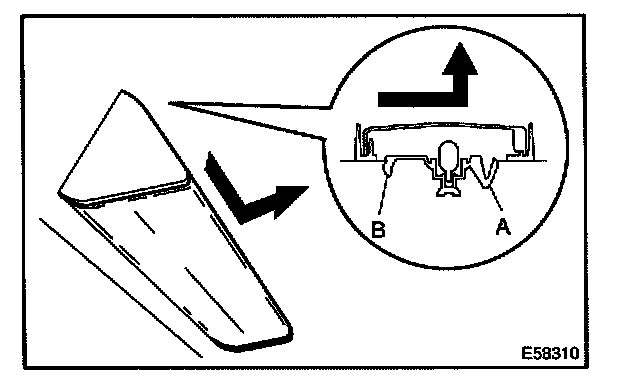

a. Pull the license plate light assy to the side of vehicle as shown in the illustration and release the claw, then disconnect the connector.
