Center Mounted Brake Lamp: Service and Repair

CENTER STOP LAMP ASSY

REPLACEMENT




1. REMOVE CENTER STOP LAMP ASSY(W/O REAR SPOILER LED)

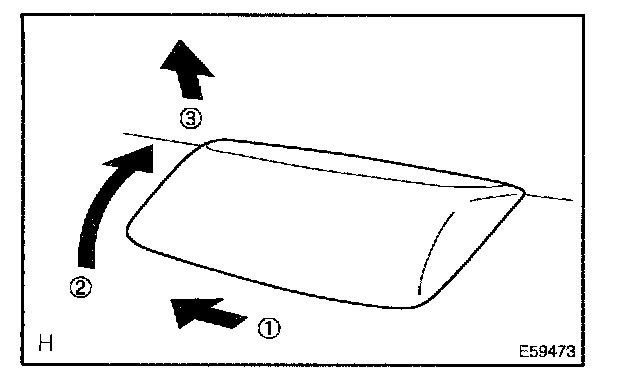

a. Pull out the center stop light assy shown in the illustration.
b. Disconnect connector.

2. REMOVE LUGGAGE COMPARTMENT DOOR COVER(W/ REAR SPOILER LED)
3. REMOVE REAR SPOILER SUB-ASSY(W/ REAR SPOILER LED)




4. REMOVE CENTER STOP LAMP ASSY(W/ REAR SPOILER LED)

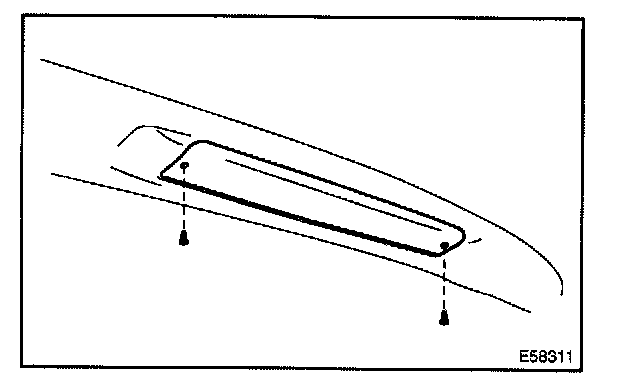

a. Remove the 2 screws and center stop light assy.

5. INSTALL REAR SPOILER SUB-ASSY(W/ REAR SPOILER LED)
