Clock: Service and Repair

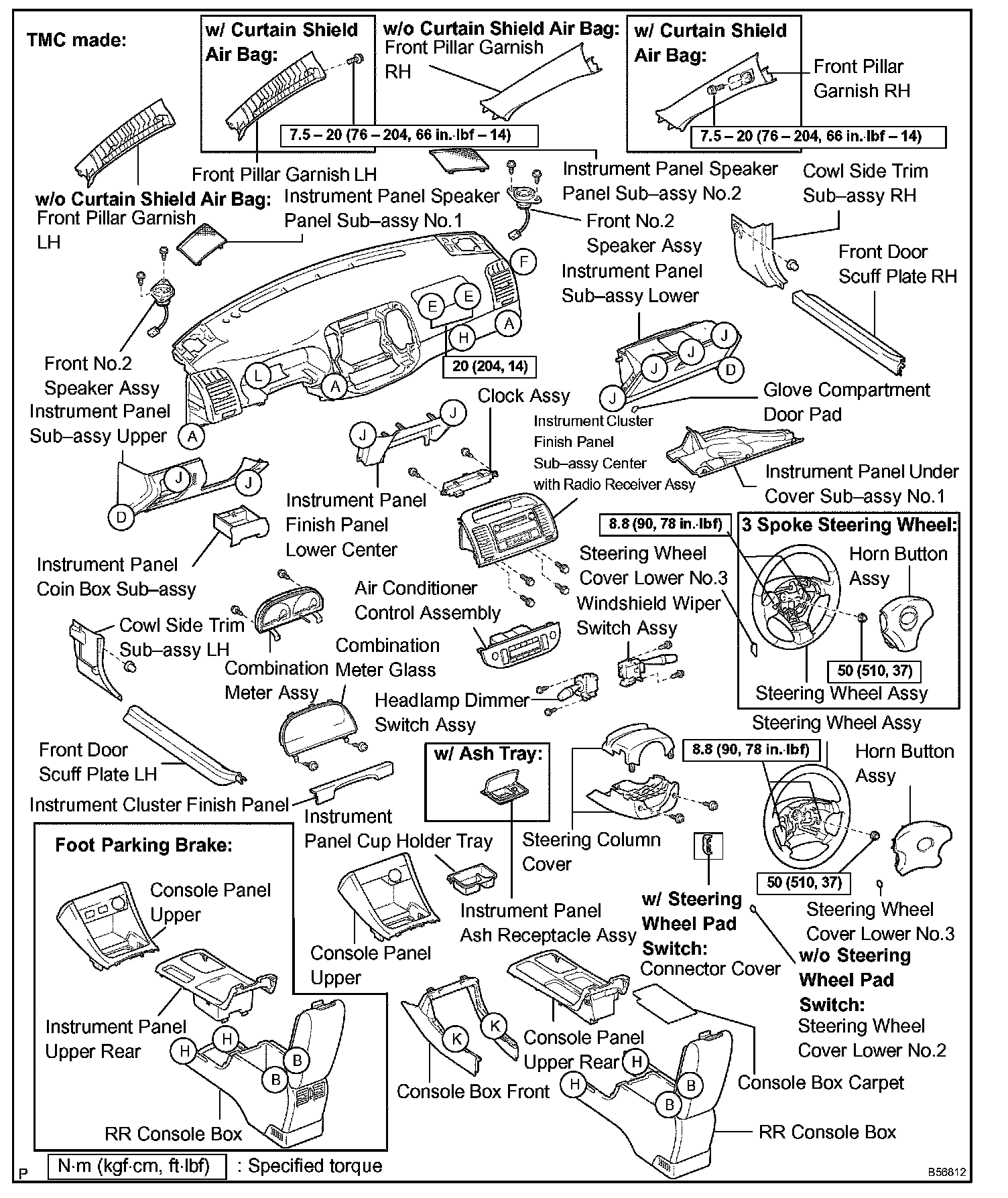

Instrument Panel/Meter - Part 1:

REPLACEMENT

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER

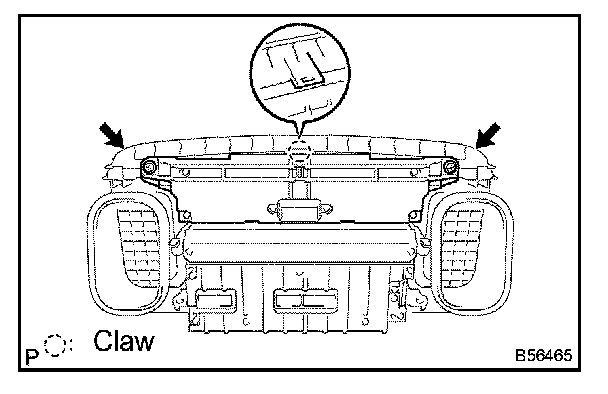

3. REMOVE CLOCK ASSY
a. Remove the 2 screws.
b. Disengage the claw and remove the clock assy.
