Blower Motor: Service and Repair

Blower Assy:

OVERHAUL

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
2. REMOVE HEATER TO FOOT DUCT NO.1
3. REMOVE BLOWER ASSY
4. REMOVE AIR REFINER ELEMENT




5. REMOVE COWL WIRE NO.2

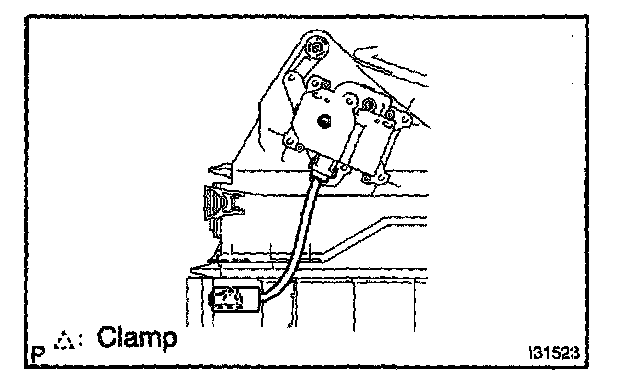

a. Remove the clamp and cowl wire No.2.




6. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSY

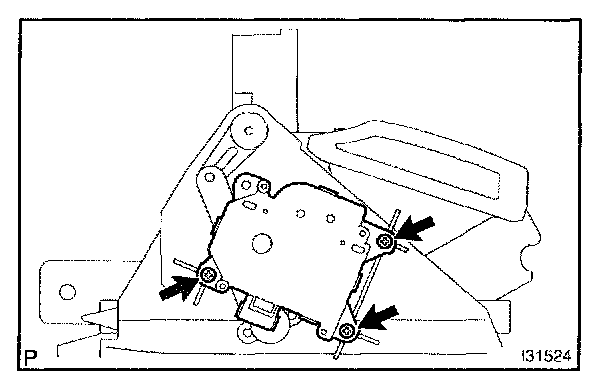

a. Remove the 3 screws and recirculation damper servo sub-assy.




7. REMOVE INSTRUMENT PANEL WIRE NO.3
a. Manual A/C model:

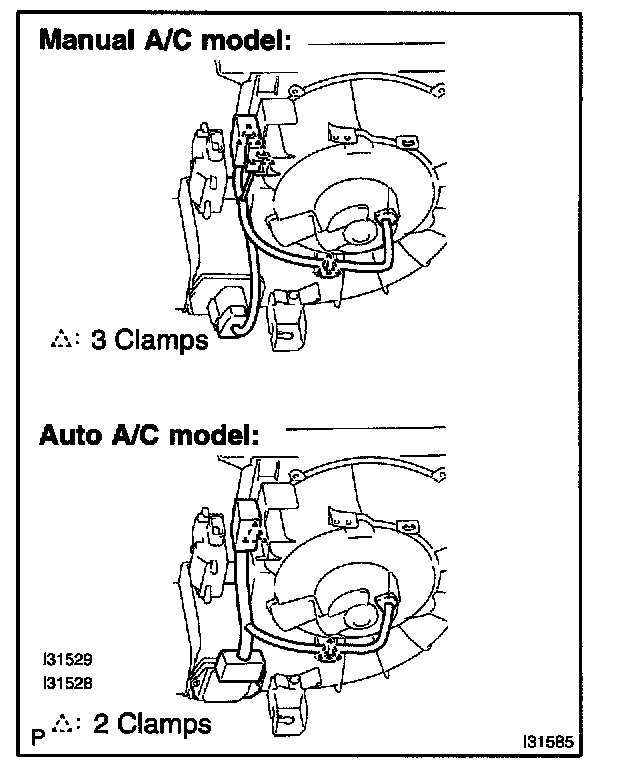

Disconnect the connectors, remove the 3 clamps and instrument panel wire No.3.
b. Auto A/C model:
Disconnect the connectors, remove the 2 clamps and instrument panel wire No.3.




8. REMOVE BLOWER RESISTOR (MANUAL AIR CONDITIONER)

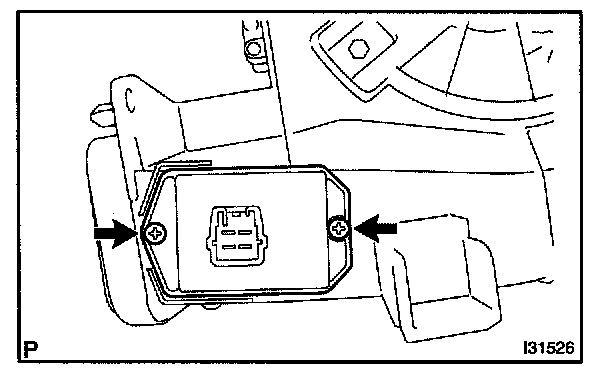

a. Remove the 2 screws and blower resistor.




9. REMOVE BLOWER MOTOR CONTROL (AUTO AIR CONDITIONER)

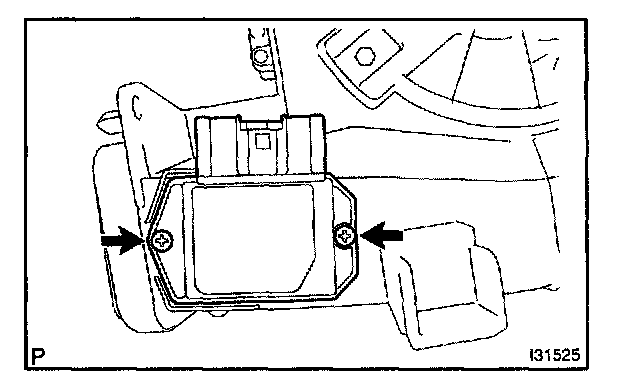

a. Remove the 2 screws and blower motor control.




10. REMOVE BLOWER W/FAN MOTOR SUB-ASSY

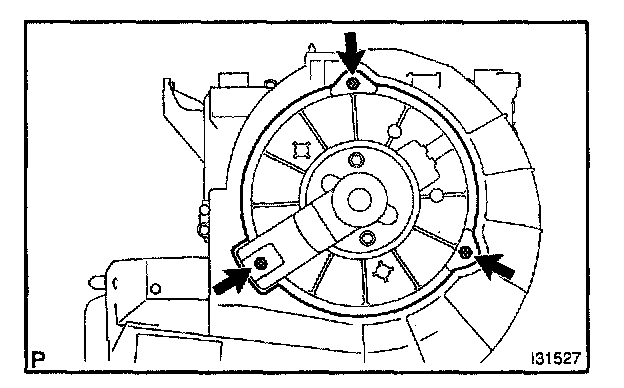

a. Remove the 3 screws and blower w/fan motor sub-assy.

11. INSTALL BLOWER ASSY
12. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY
