Crankshaft Main Bearing: Specifications

Installation:

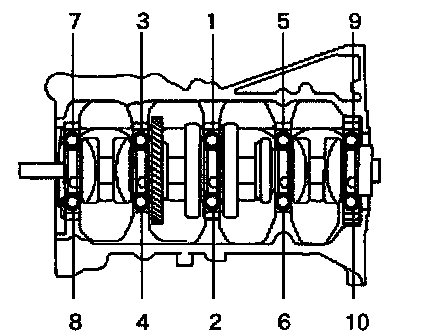

Crankshaft bearing cap x Cylinder block
1st 20 Nm (204 kgf-cm, 15 ft. lbs.)
2nd 40 Nm (408 kgf-cm, 29 ft. lbs.)
3rd 90°

Crankshaft bearing cap cap set bolt diameter
Standard 7.5 - 7.6 mm (0.295 - 0.299 inch)
Minimum 7.2 mm (0.283 inch)
