Radiator: Testing and Inspection

ON-VEHICLE INSPECTION
1. INSPECT FINS BLOCKAGE

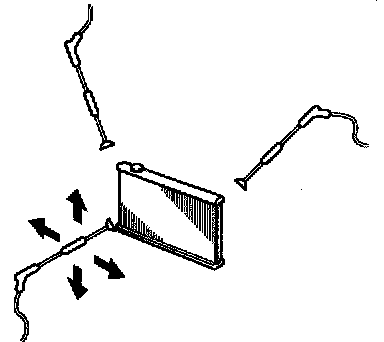

a. If fins are clogged, wash them with water or a steam cleaner and dry with compressed air.





NOTICE:

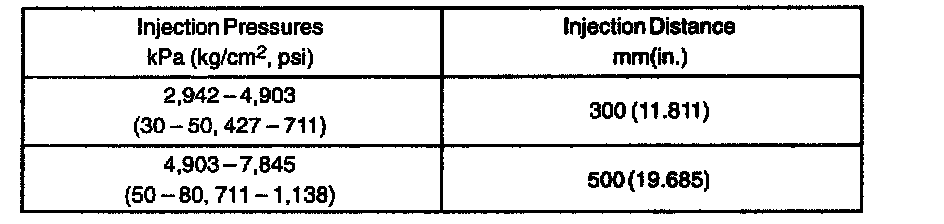

^ If the distance between the steam cleaner and the core is too close, there is a possibility of damaging the fins, so keep the following Injection distance.
^ If the fins are bent, straighten them with a screwdriver or pliers.
^ Never apply water directly onto the electronic components.
