ABS W/EBD, BA, TRAC & VSC Systems

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the brake warning light while prohibiting ABS control. At this time, the ECU records a DTC in memory.

Connect terminals Tc and CG of the DLC3 to make the brake warning light blink and output the DTC.

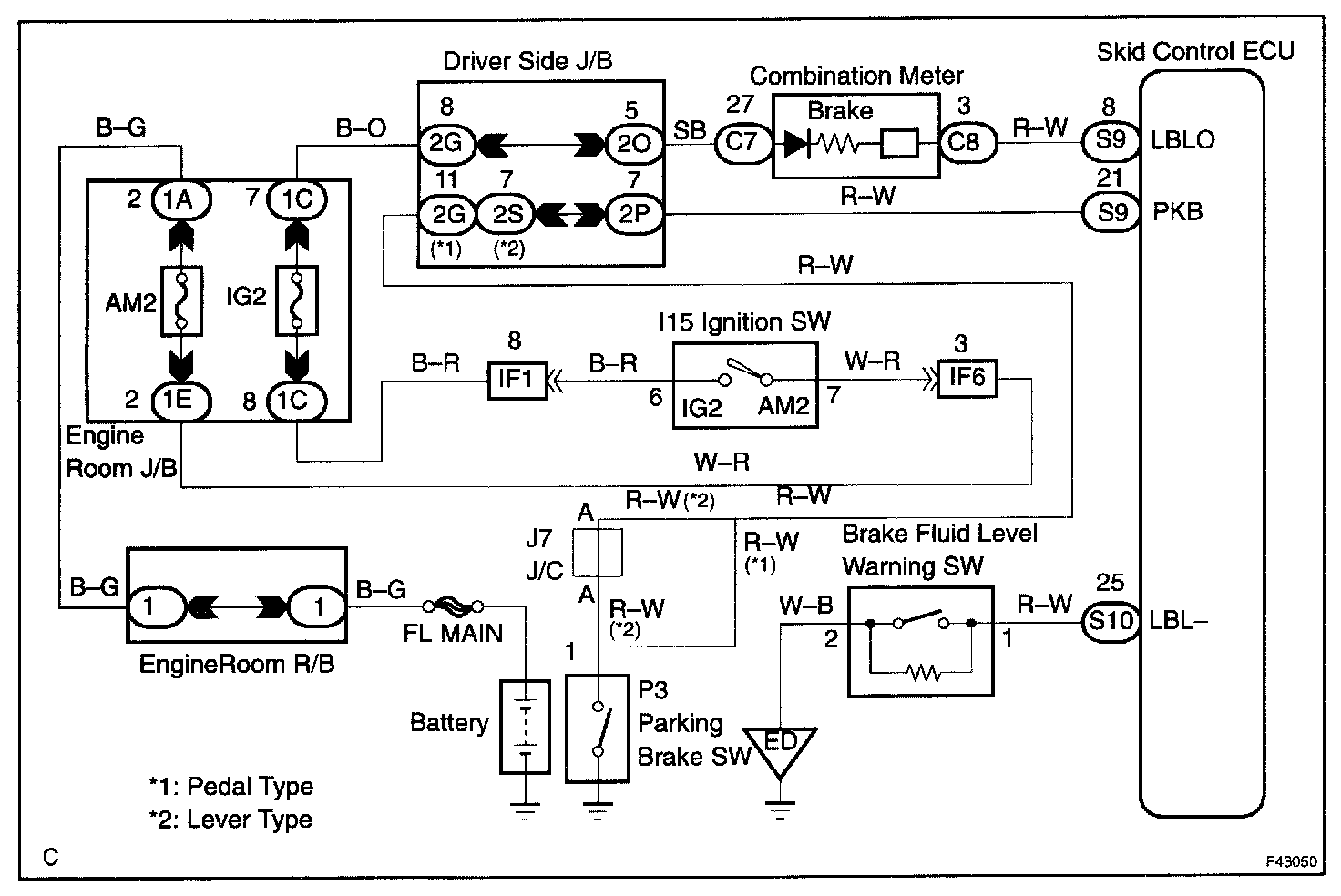

Wiring Diagram:

Step 1 - 2:

Step 3 - 5:

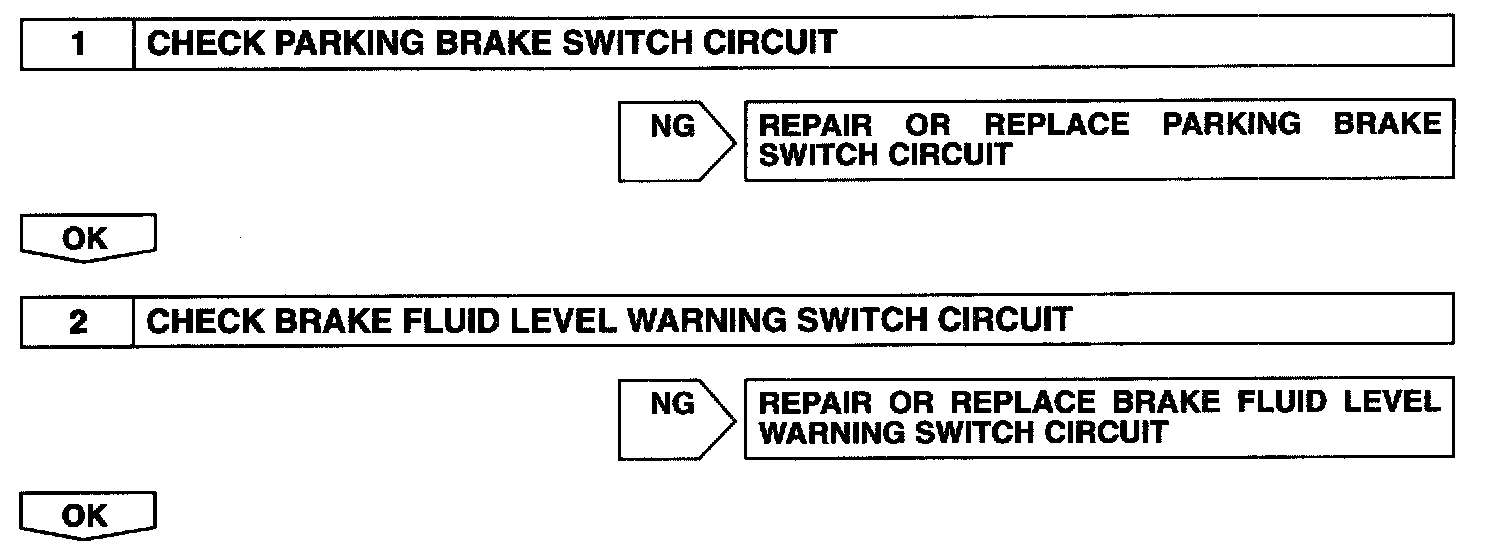

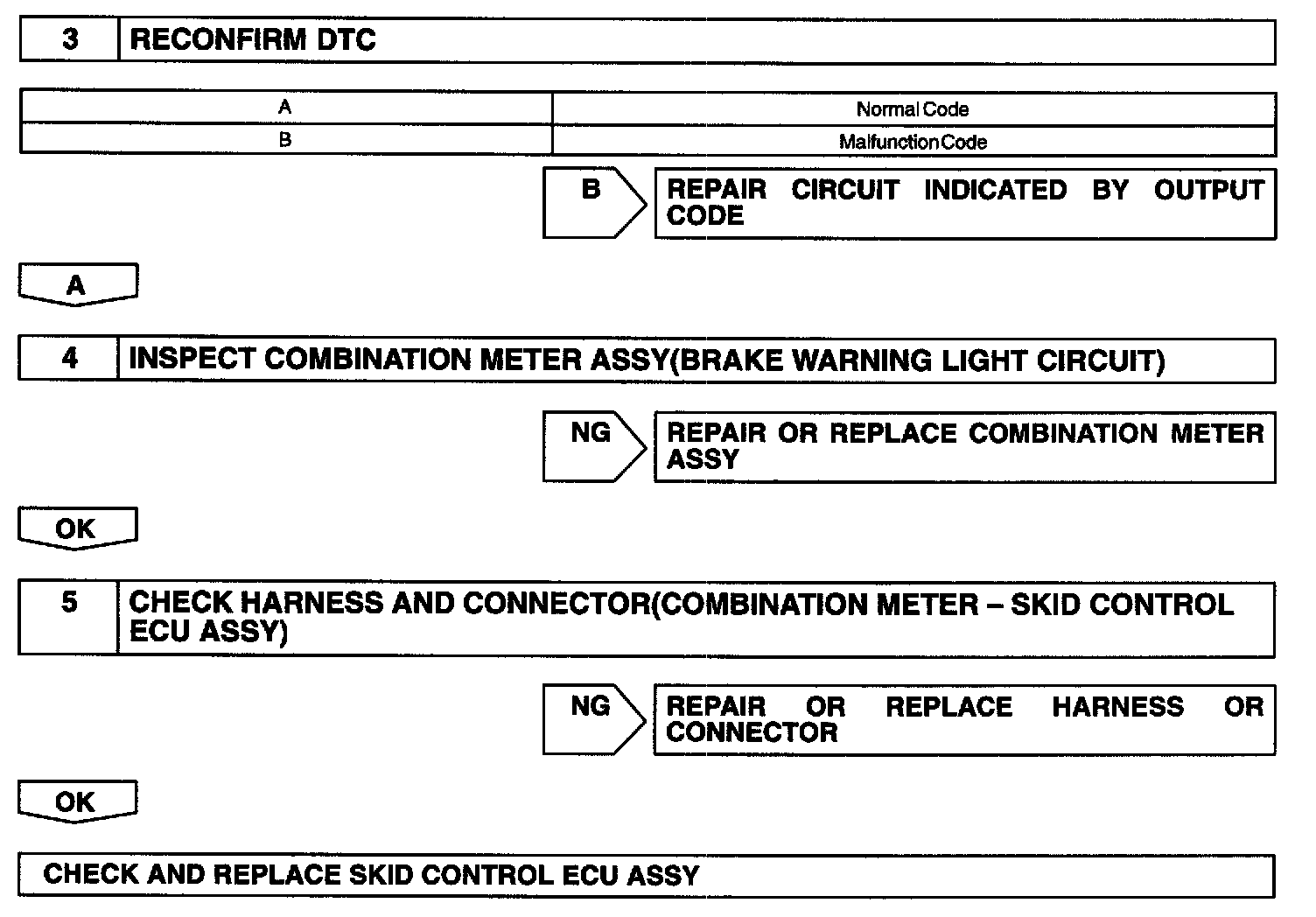

INSPECTION PROCEDURE
