Power Seat Switch: Testing and Inspection

1. INSPECT FRONT POWER SEAT SWITCH LH
a. Inspect the front power seat switch continuity.

Slide Switch:

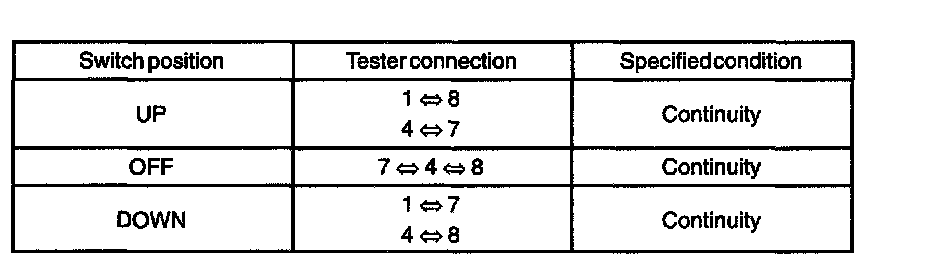

Standard (Slide switch):

Front Vertical Switch:

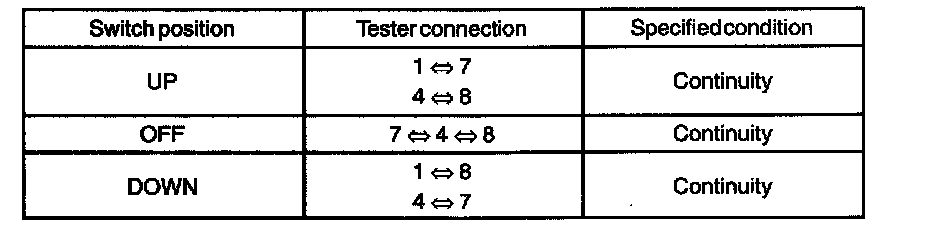

Standard (Front vertical switch):

Rear Vertical Switch:

Standard (Rear vertical switch):

Reclining Switch:

Standard (Reclining switch):
If the result is not as specified, replace the front power switch.




2. INSPECT FRONT POWER SEAT SWITCH RH
a. Inspect the front power seat switch continuity.

Slide Switch:

Standard (Slide switch):

Front Vertical Switch:

Standard (Front vertical switch):

Rear Vertical Switch:

Standard (Rear vertical switch):

Reclining Switch:

Standard (Reclining switch):
If the result is not as specified, replace the front power seat switch.
