Screen Cannot be Dimmed, Light Control Switch in TAIL Position

SCREEN CANNOT BE DIMMED WHEN LIGHT CONTROL SWITCH IS TURNED TO "TAIL" POSITION

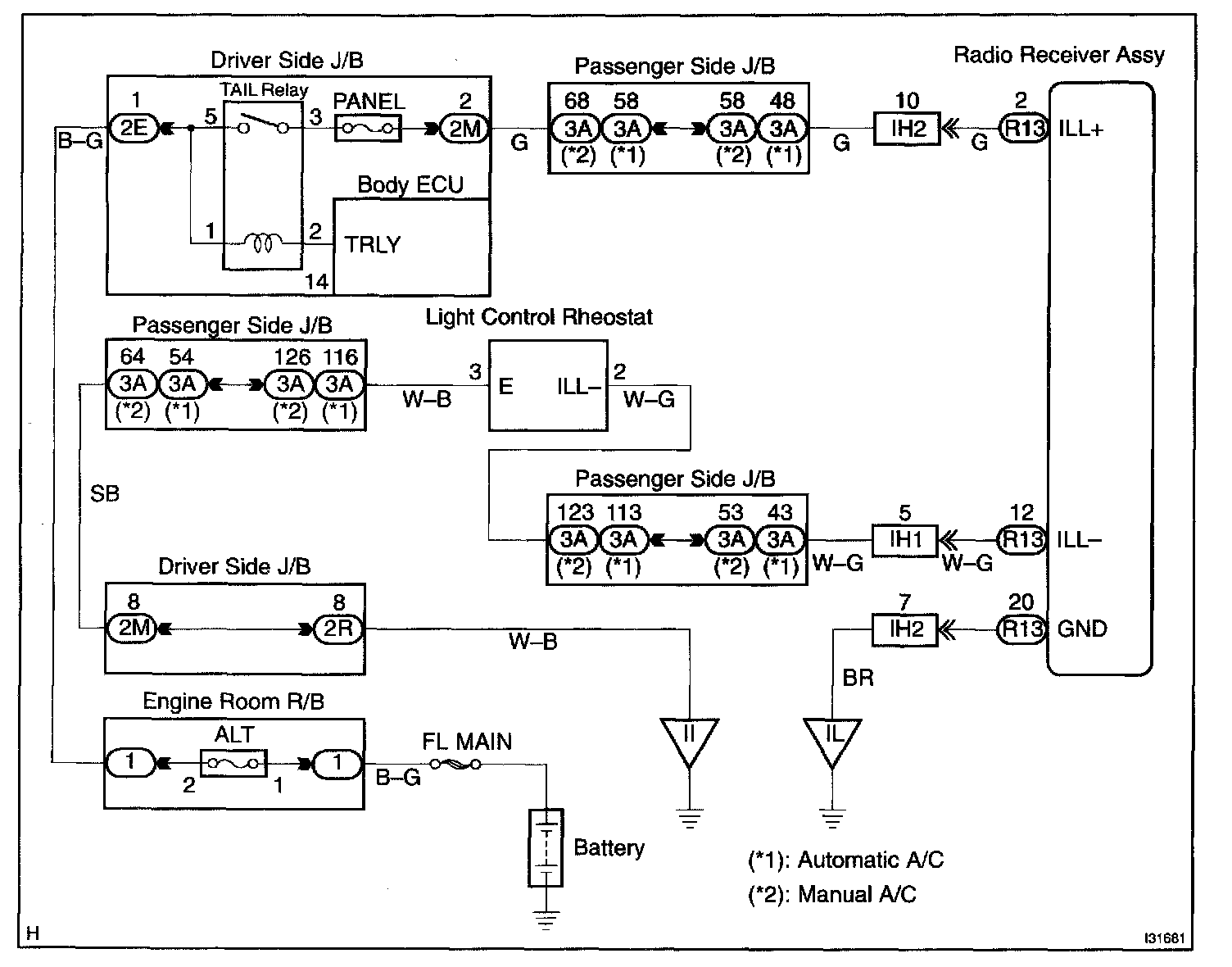

Wiring Diagram:

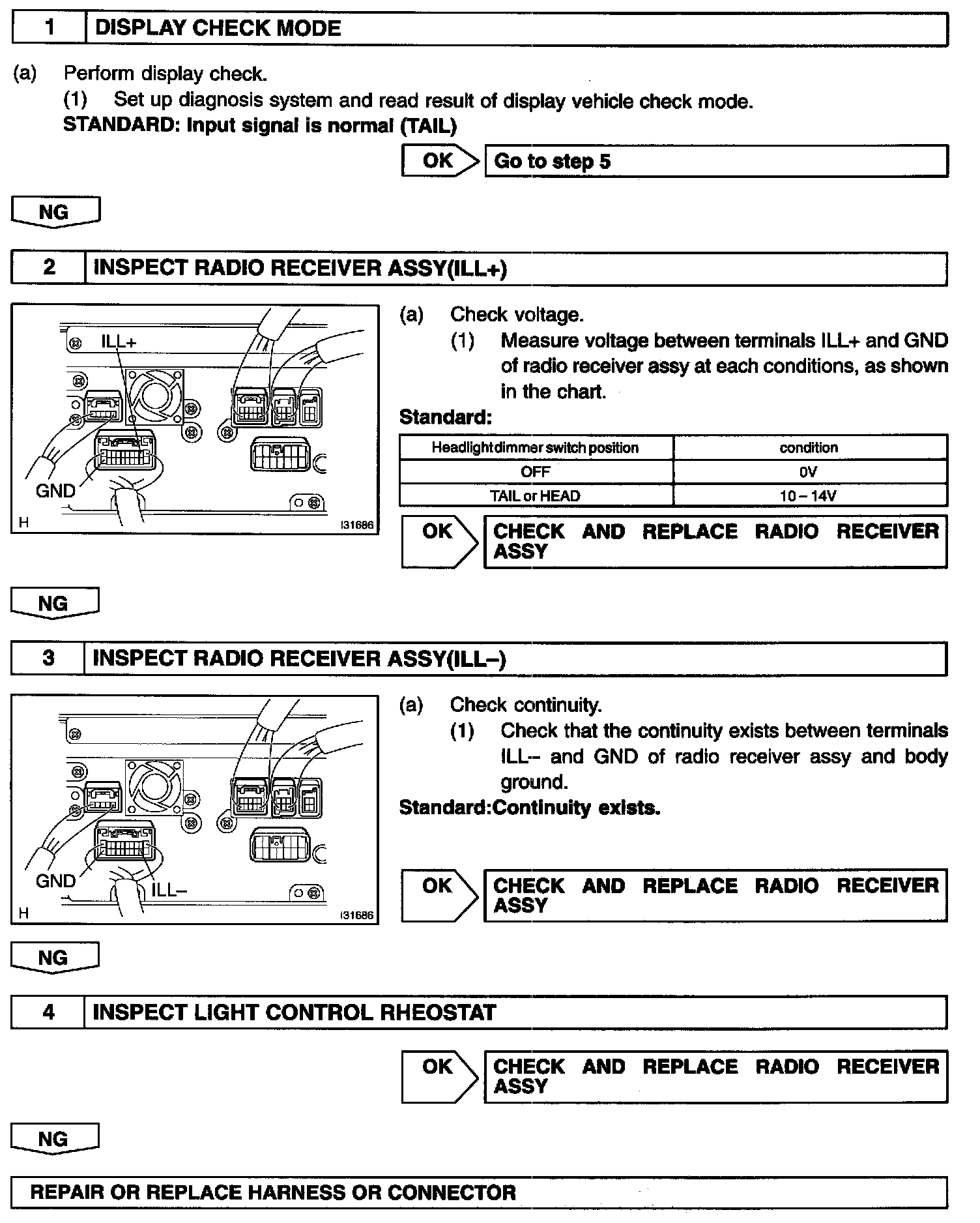

Step 1 - 4:

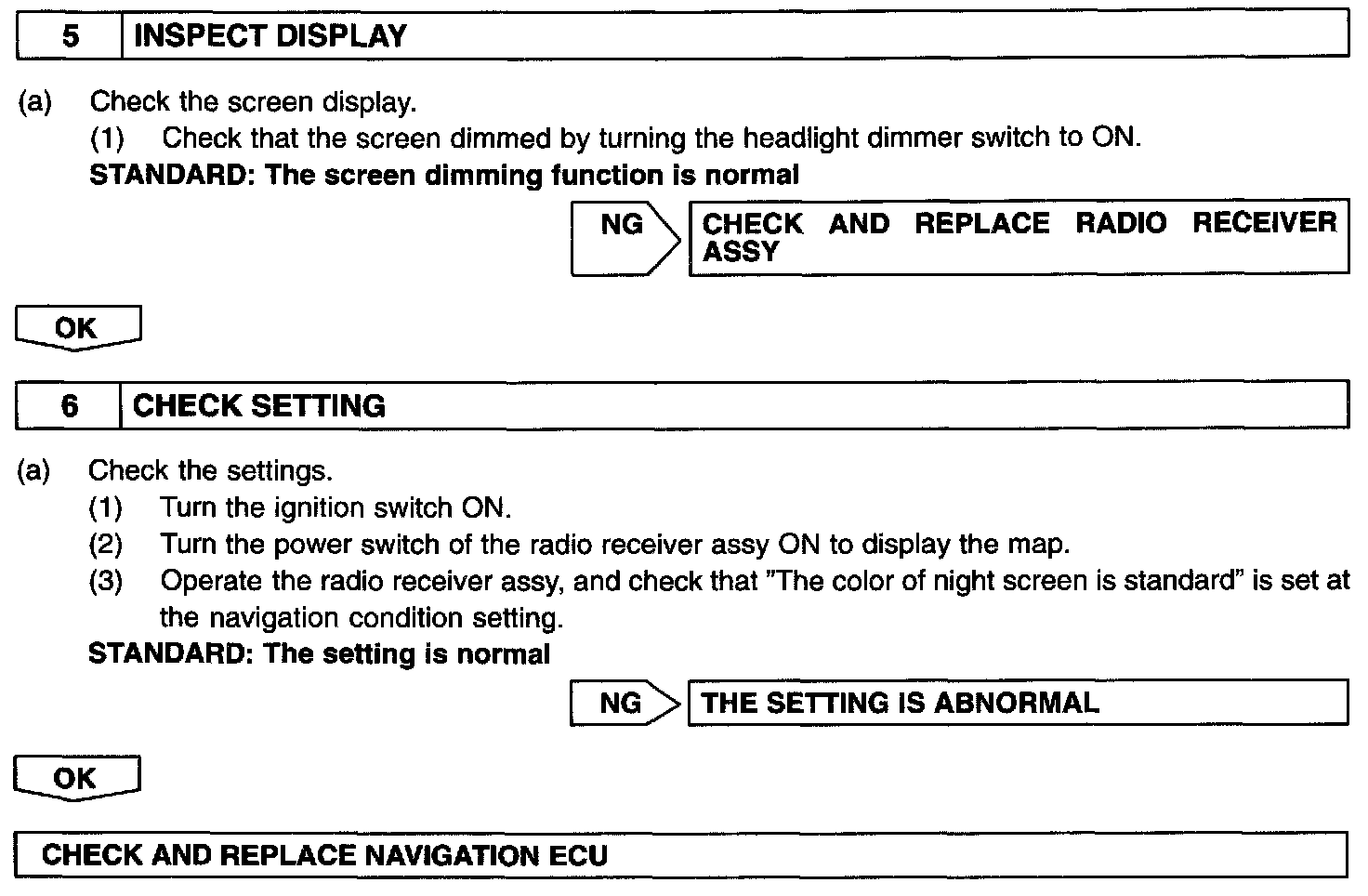

Step 5 - 6:




INSPECTION PROCEDURE
