No Nav Screen Displayed When MAP/VOICE/NAVI/DEST Switch Pressed

No Navigation Screen Displayed When "MAP/VOICE", "NAVI" or "DEST" Switch Pressed. (Screen Cannot Be Switched.)

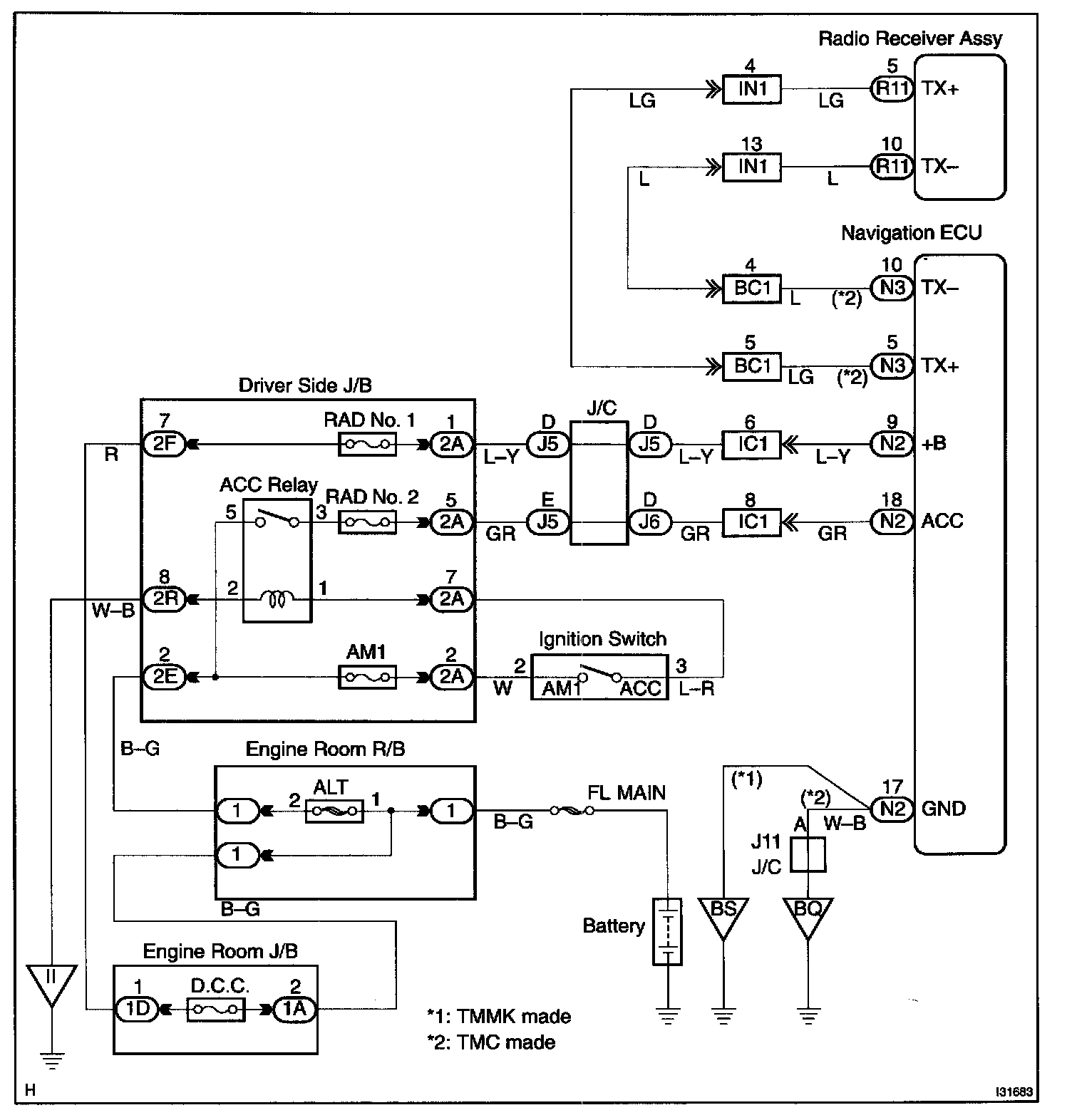

Wiring Diagram:

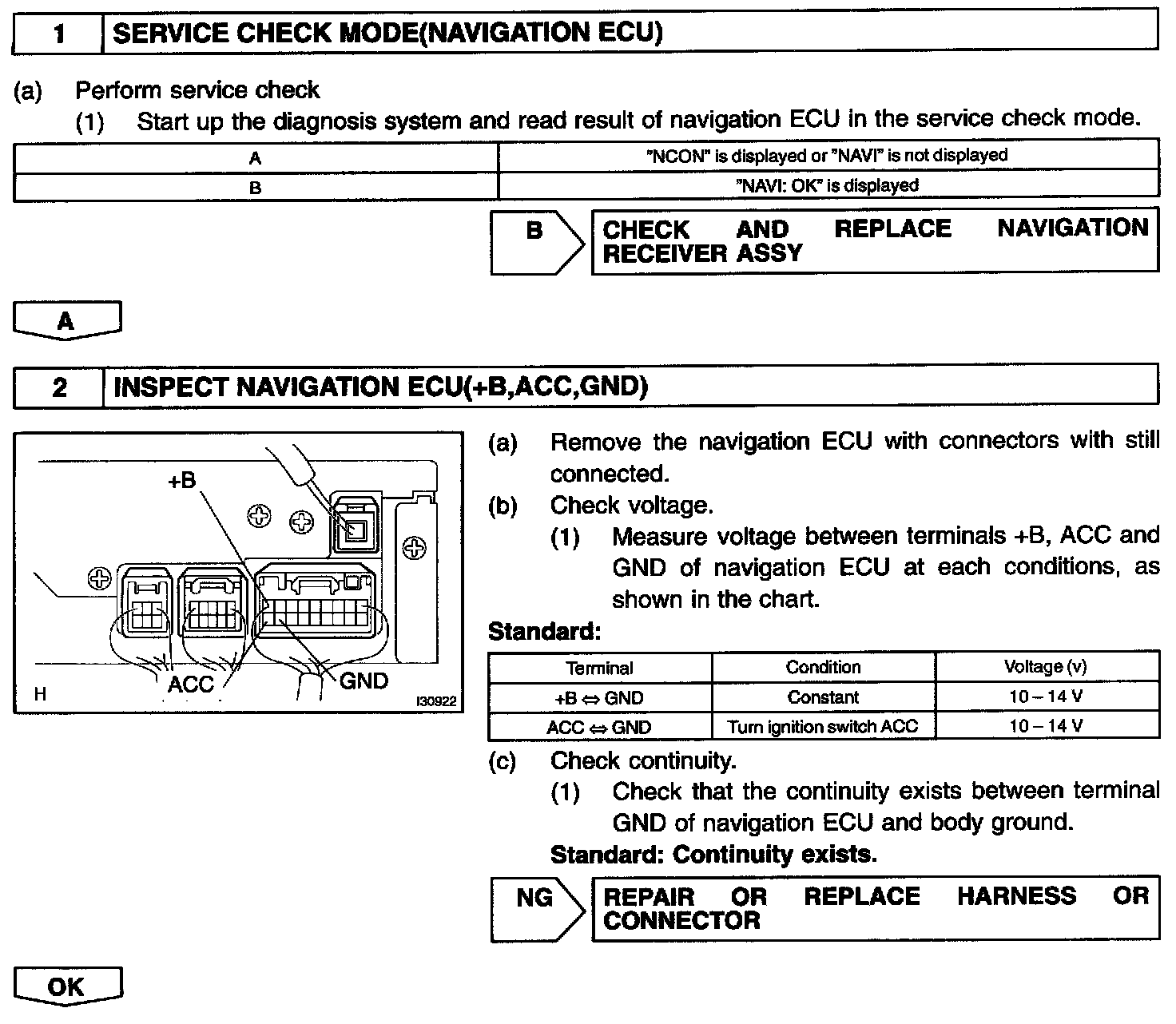

Step 1 - 2:

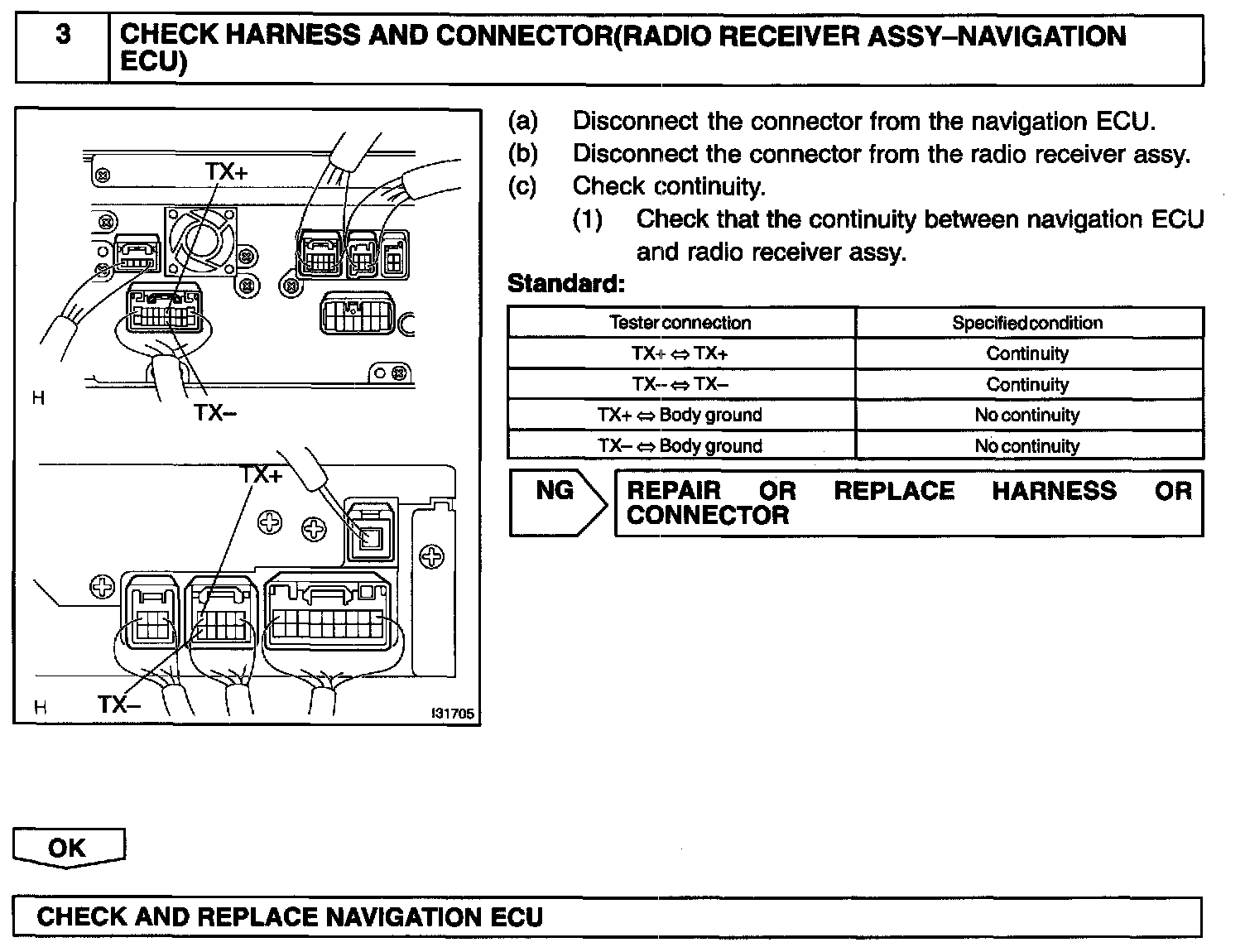

Step 3:




INSPECTION PROCEDURE
