Transmission Control System

DTC P0705 TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT)

CIRCUIT DESCRIPTION

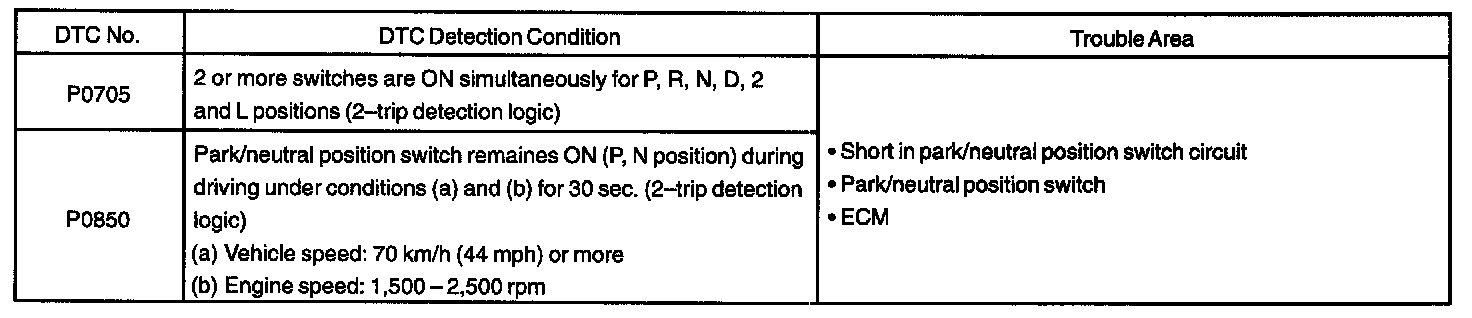

DTC Detection Condition:

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

The ECM receives signals (REVERSE, DRIVE, 2ND and LOW) from the park/neutral position switch.

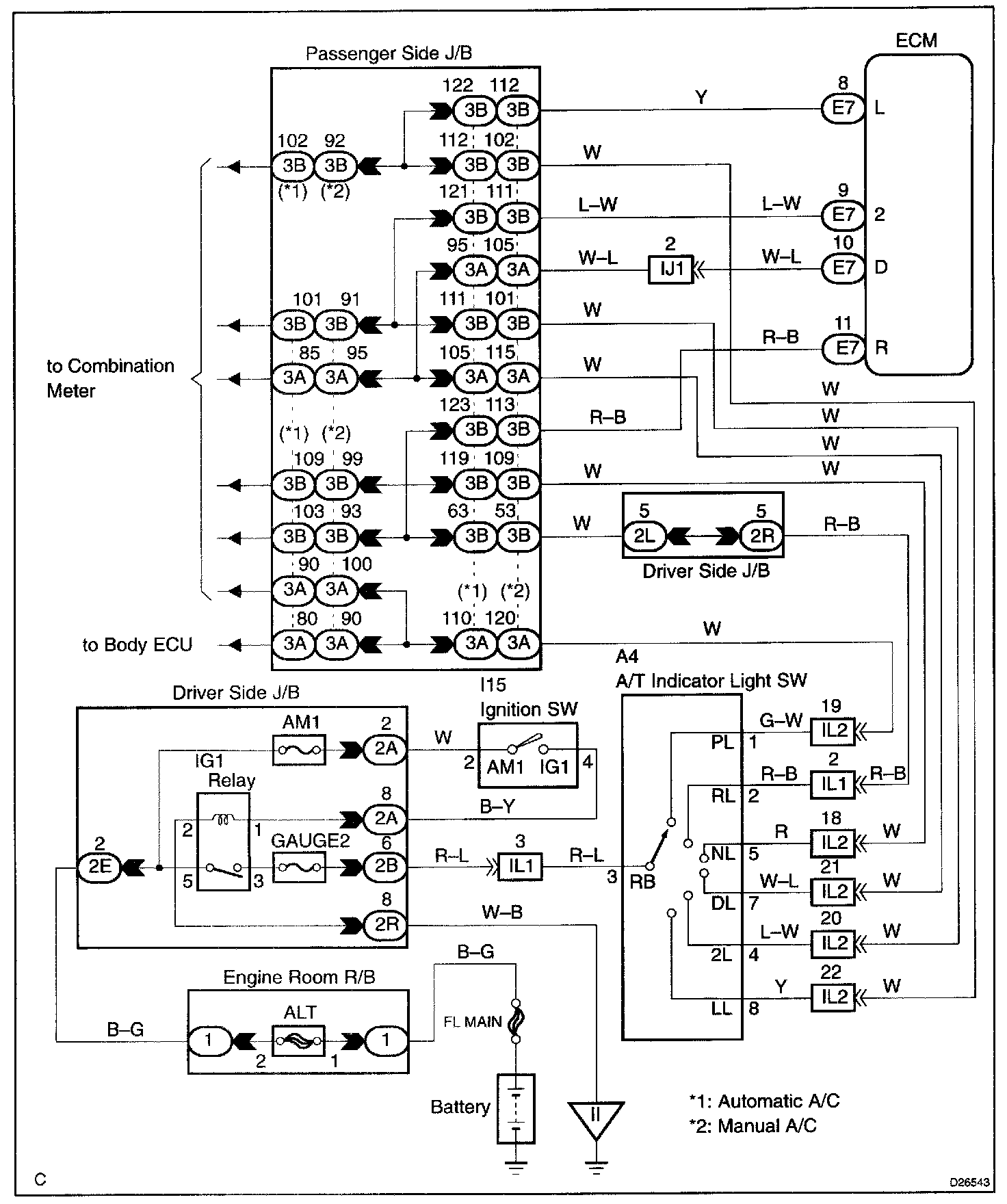

Wiring Diagram:

Step 1 - 2:

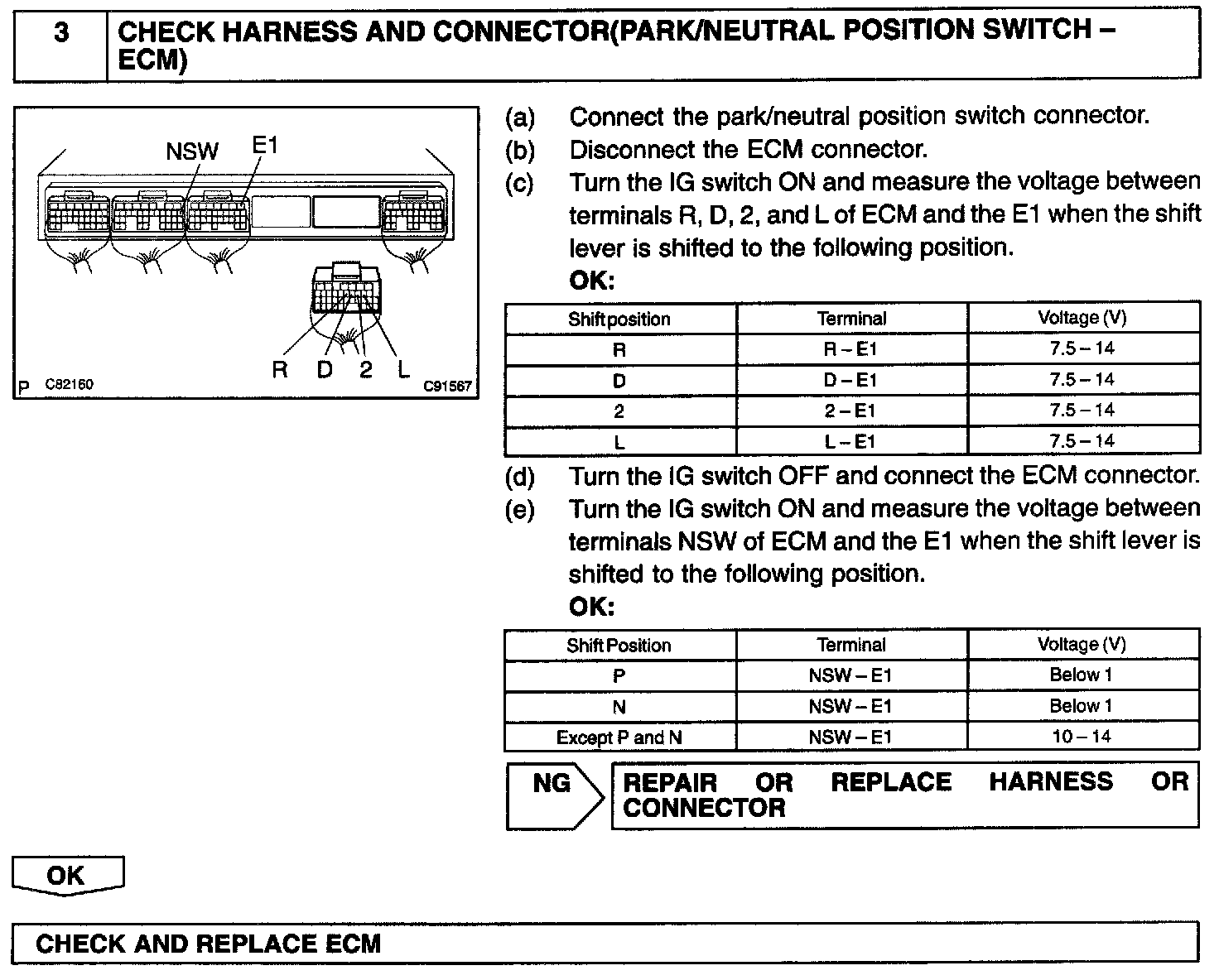

Step 3:

INSPECTION PROCEDURE
