Air Conditioning System

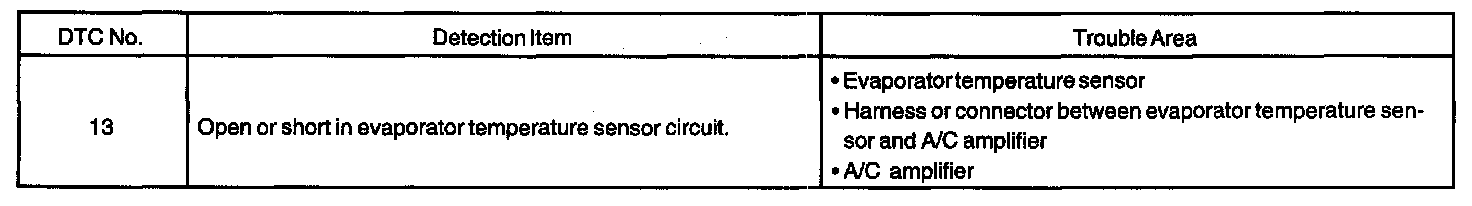

DTC 13 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION




This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C amplifier.

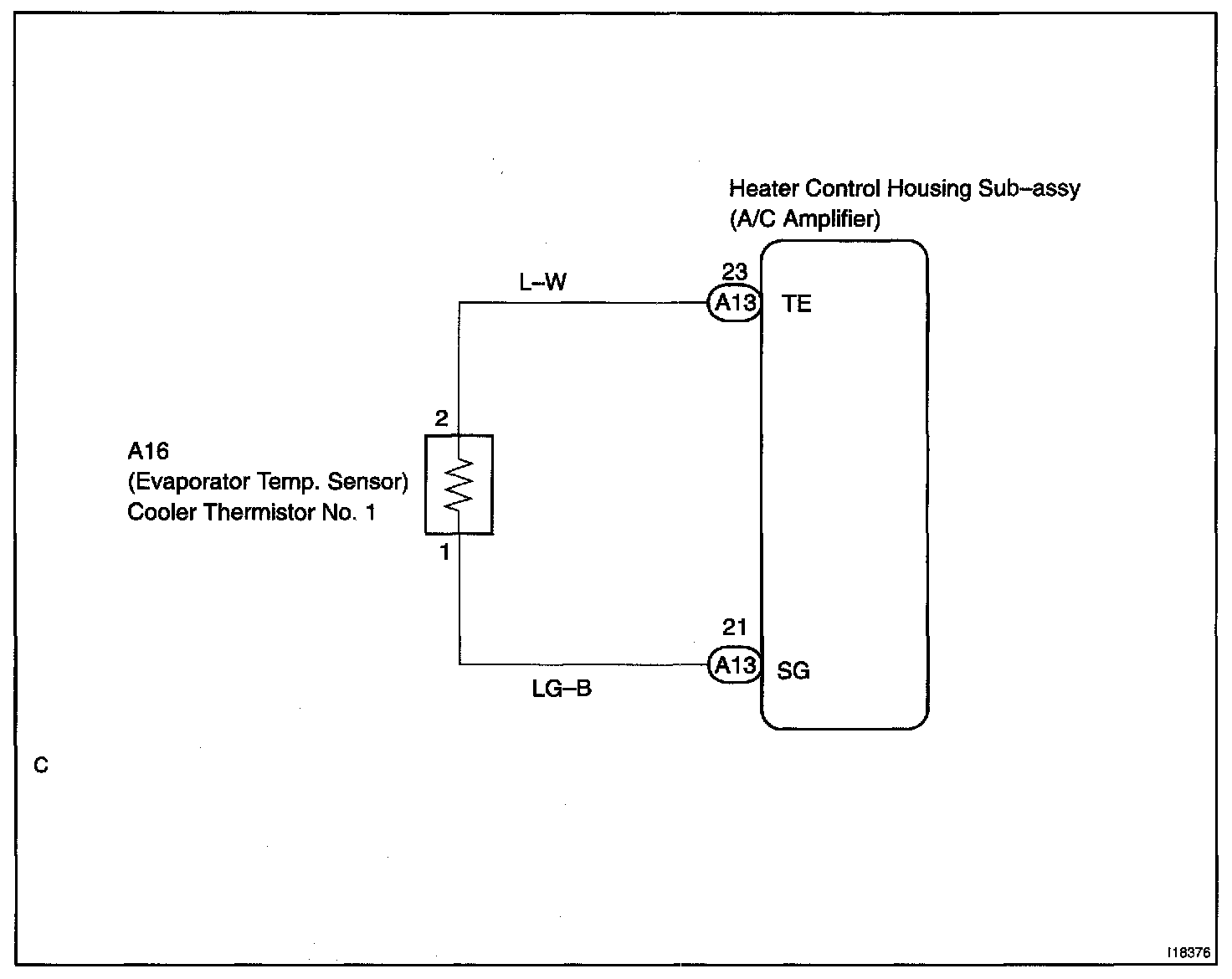

Wiring Diagram:

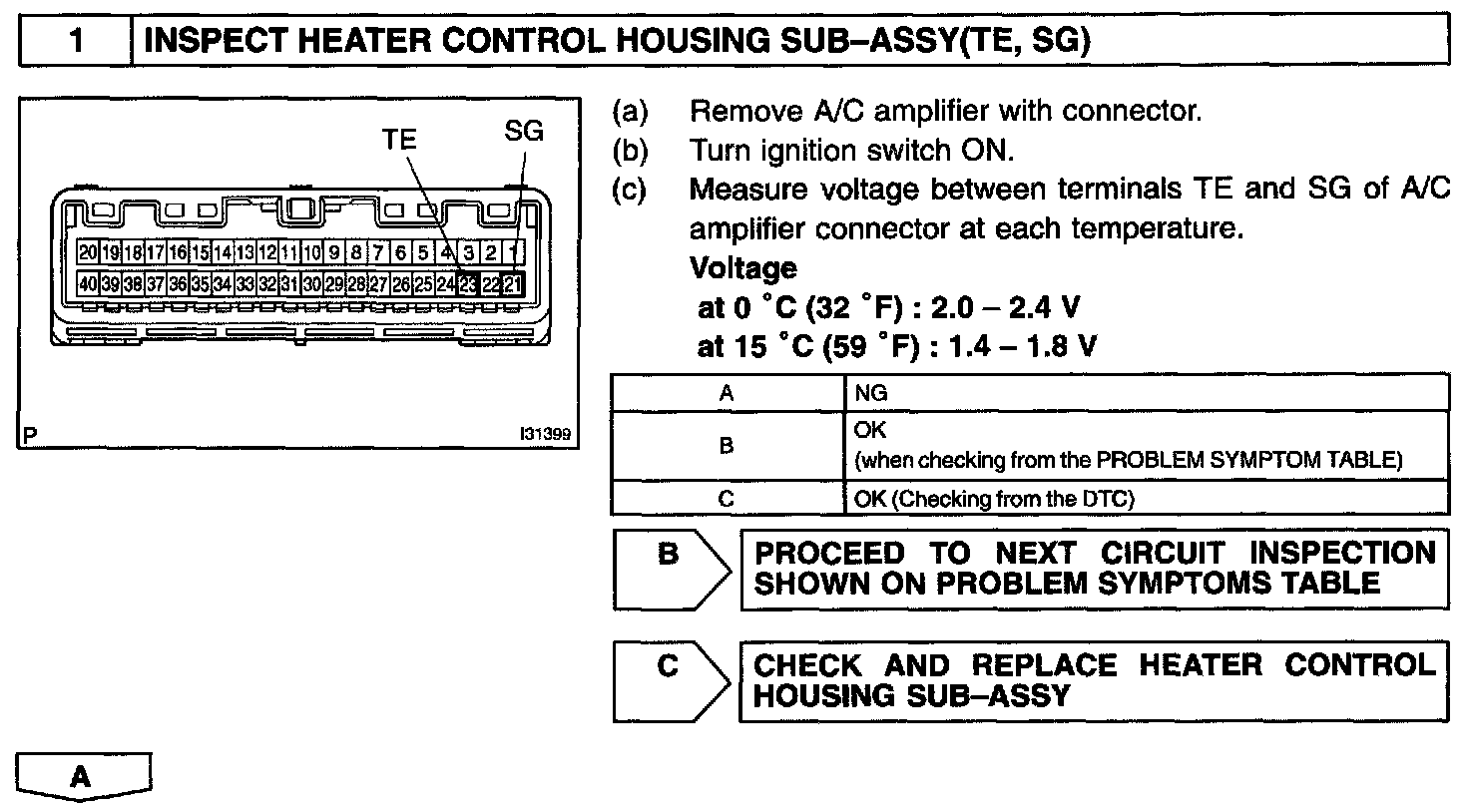

Step 1:

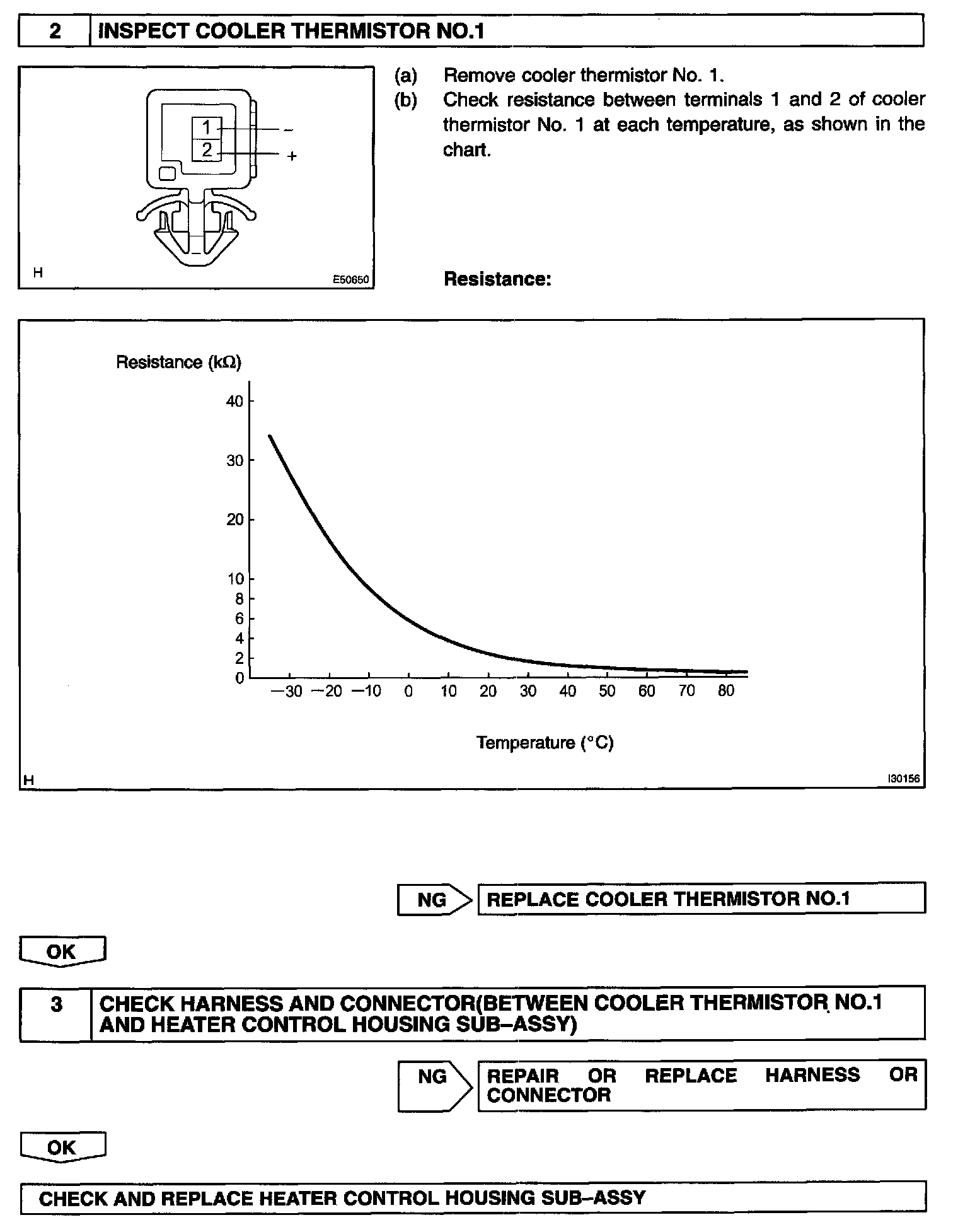

Step 2 - 3:

INSPECTION PROCEDURE
