Air Conditioning System

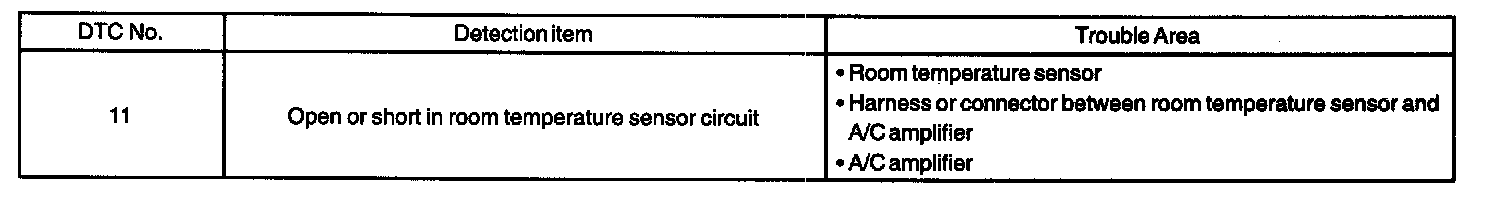

DTC 11 ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION




This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C amplifier.

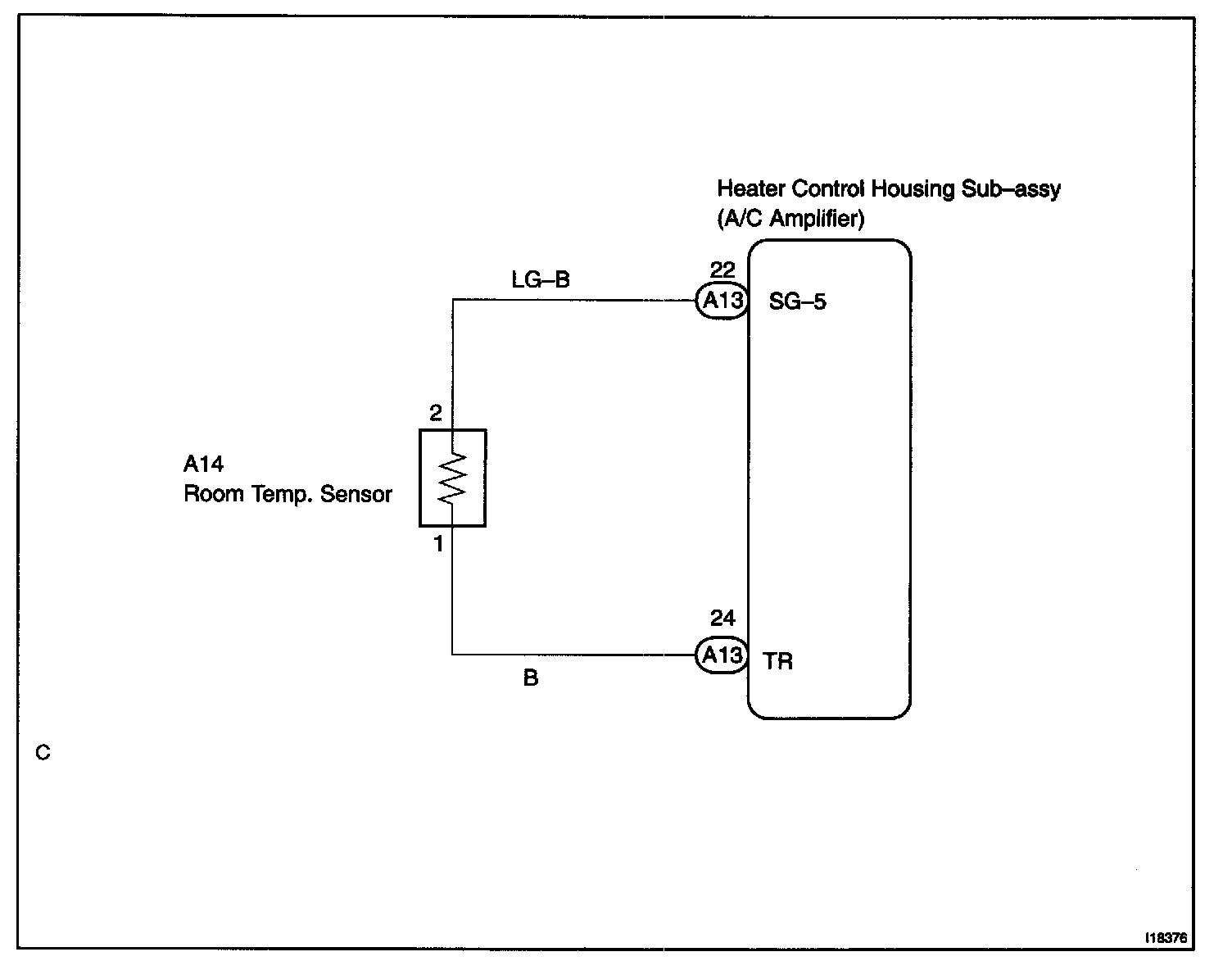

Wiring Diagram:

Step 1 - 3:

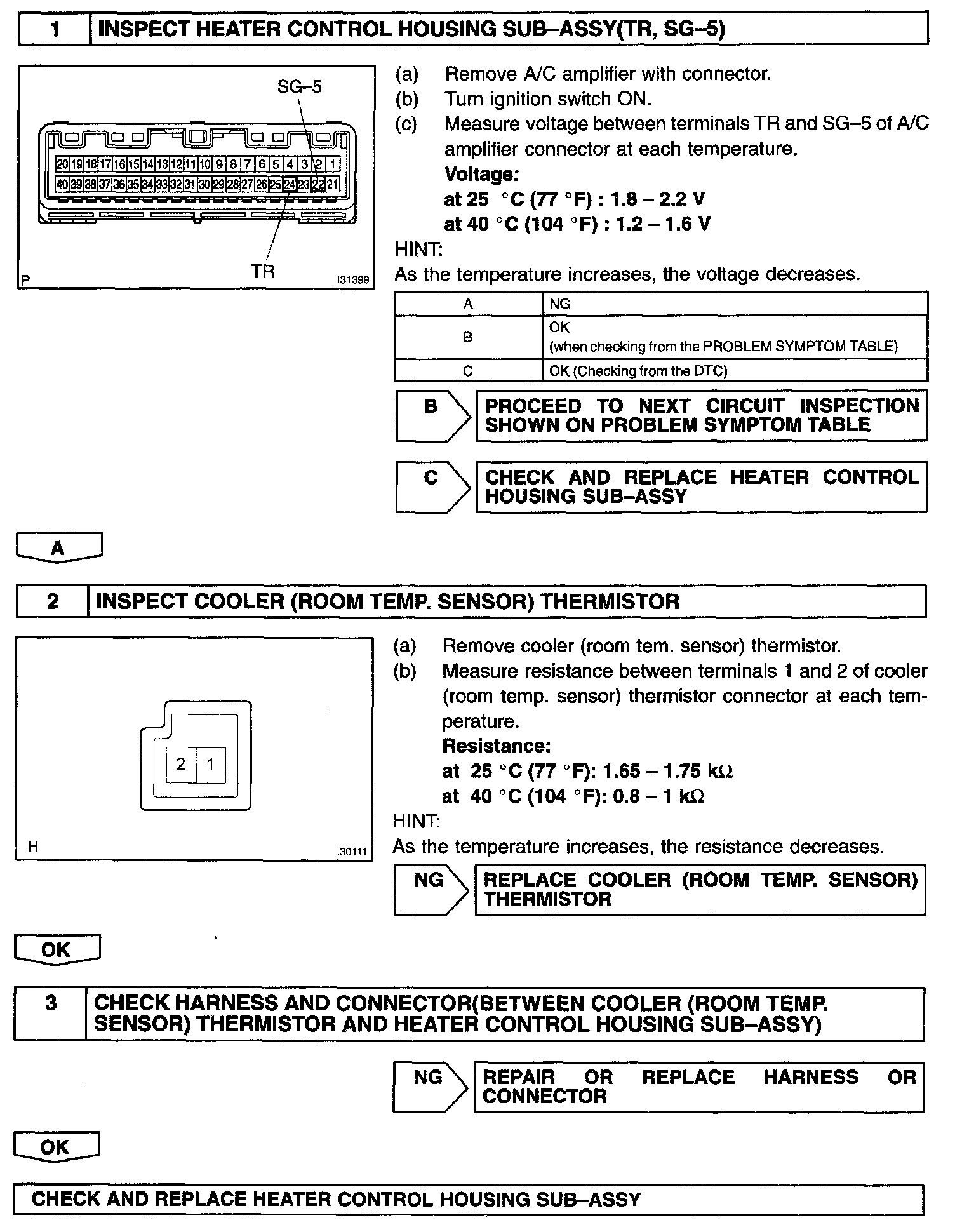

INSPECTION PROCEDURE
