Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART




1. MATSUSHITA MADE:
RADIO RECEIVER ASSY (Physical address: 190)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

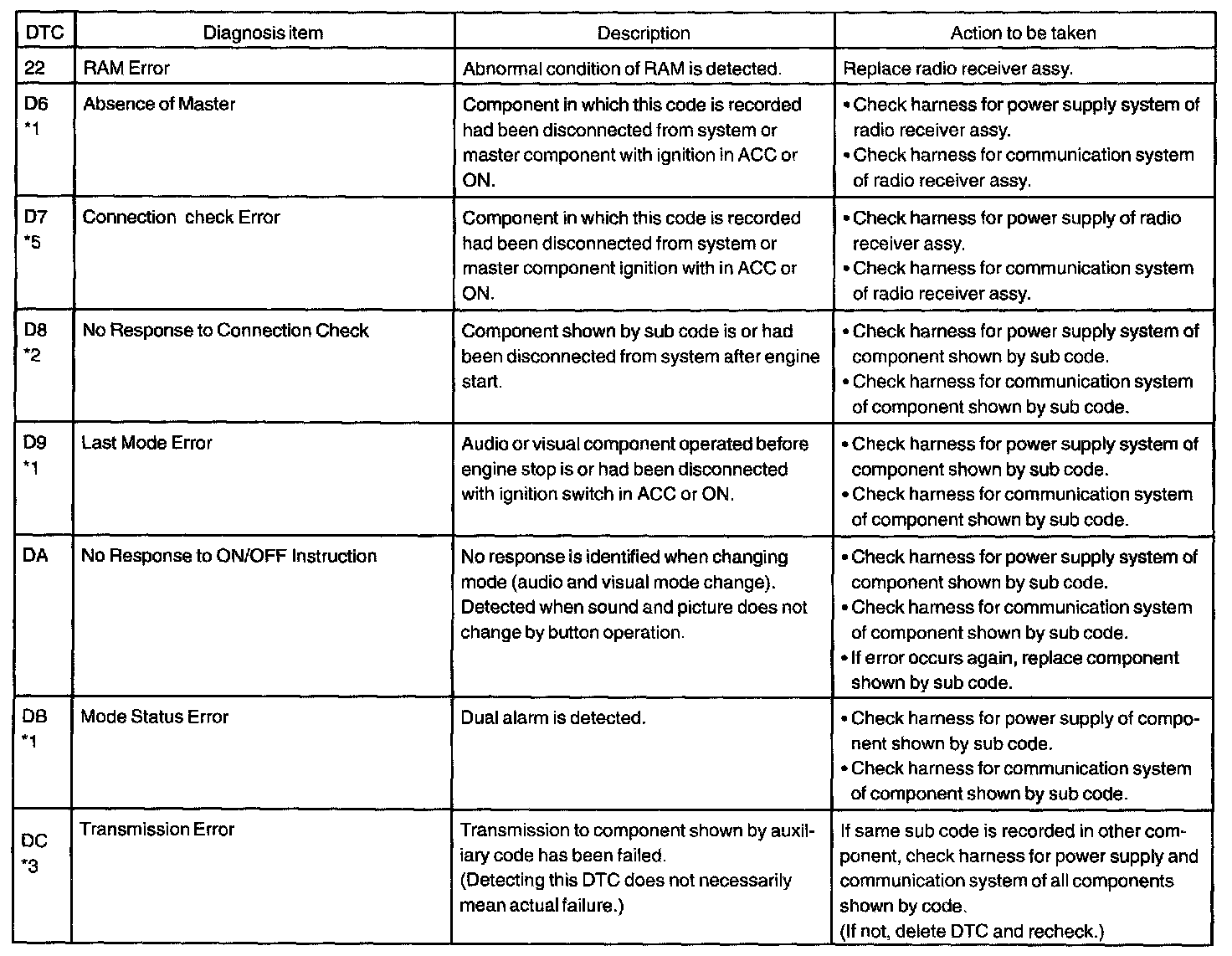

D6 *1 - DC *3:

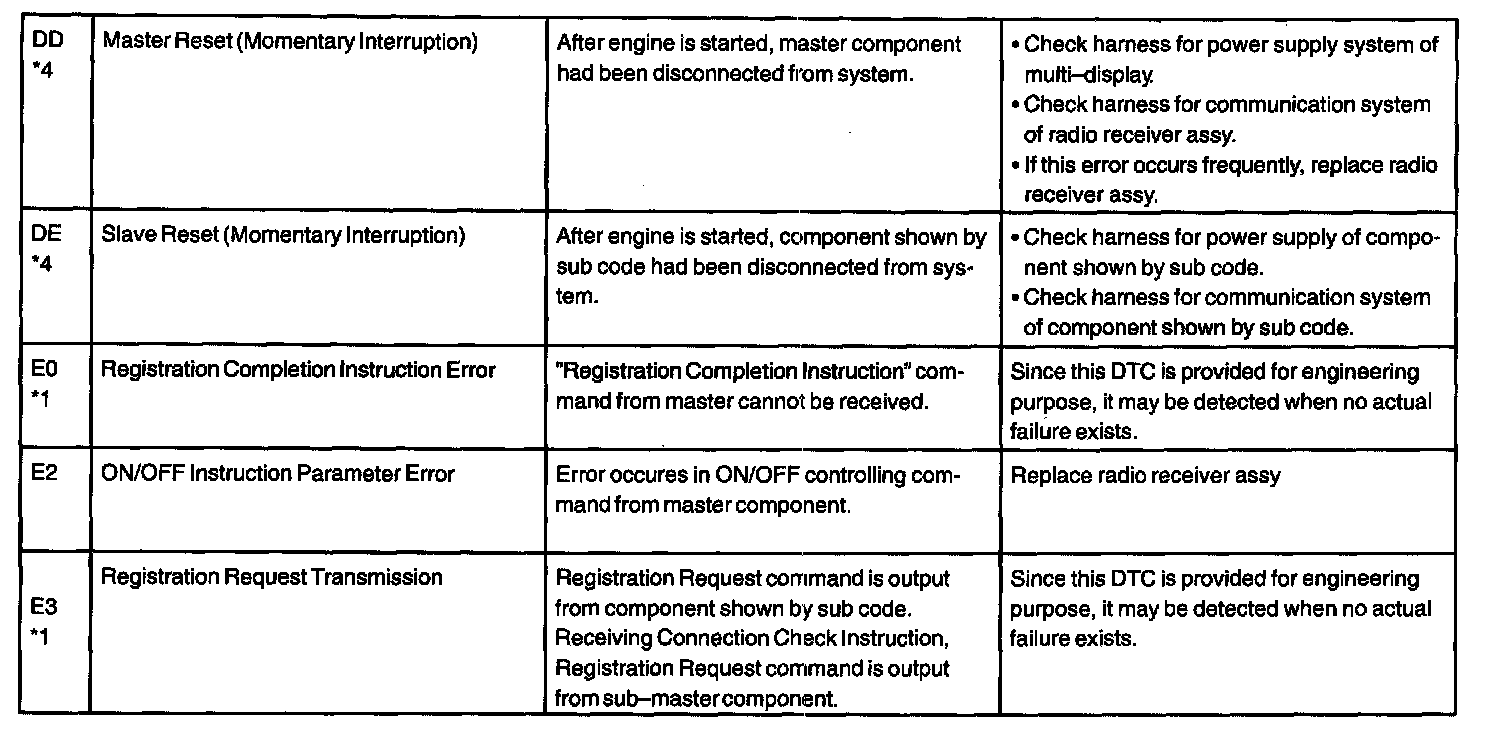

DD *4 - E3 *1:

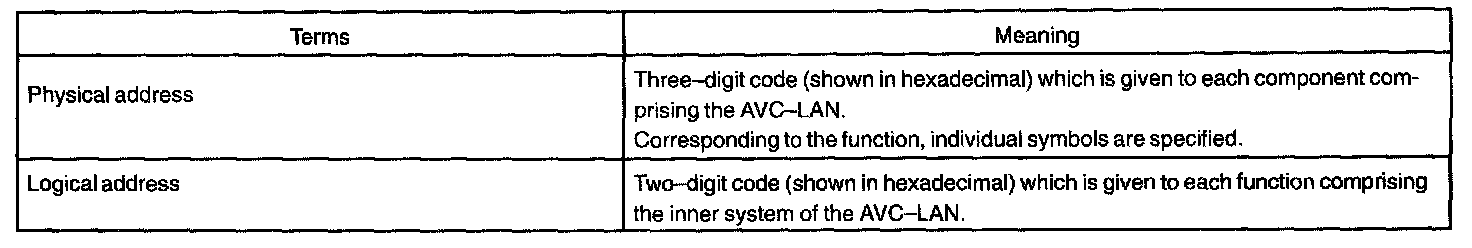

a. Logical address: O1 (Communication control)

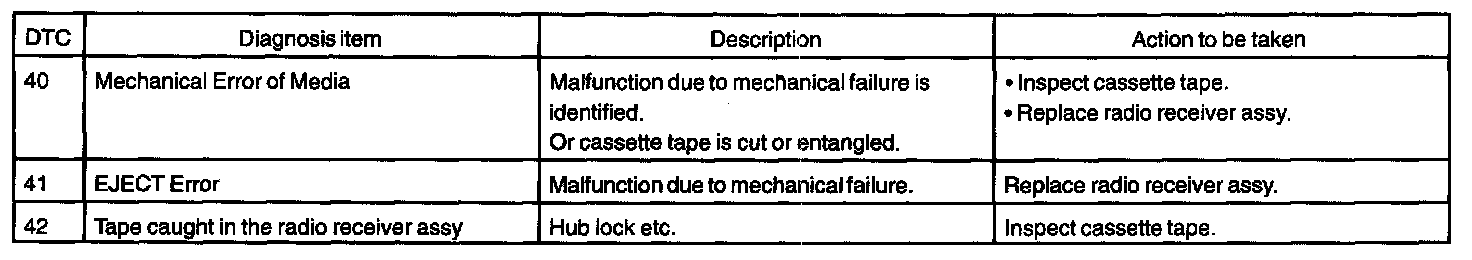

40 - 42:

b. Logical address: 61 (Cassette switch)

42 - 46:

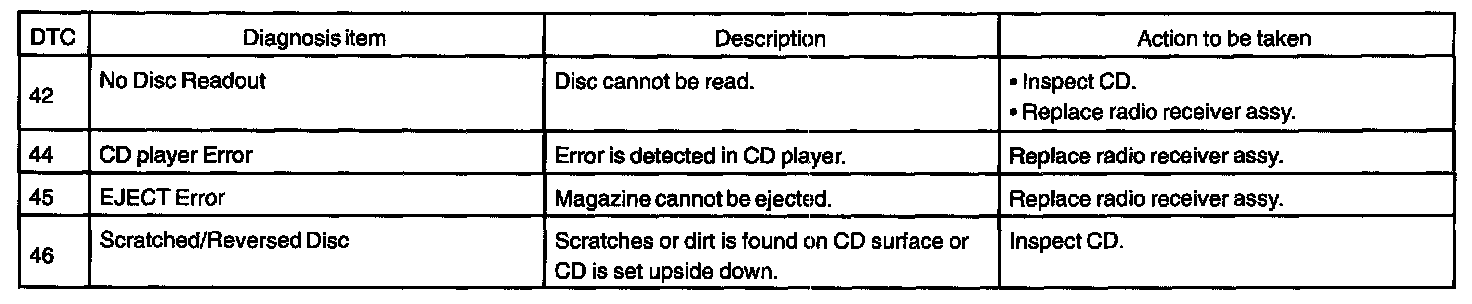

c. Logical address: 62 (CD player)

42 - 52:

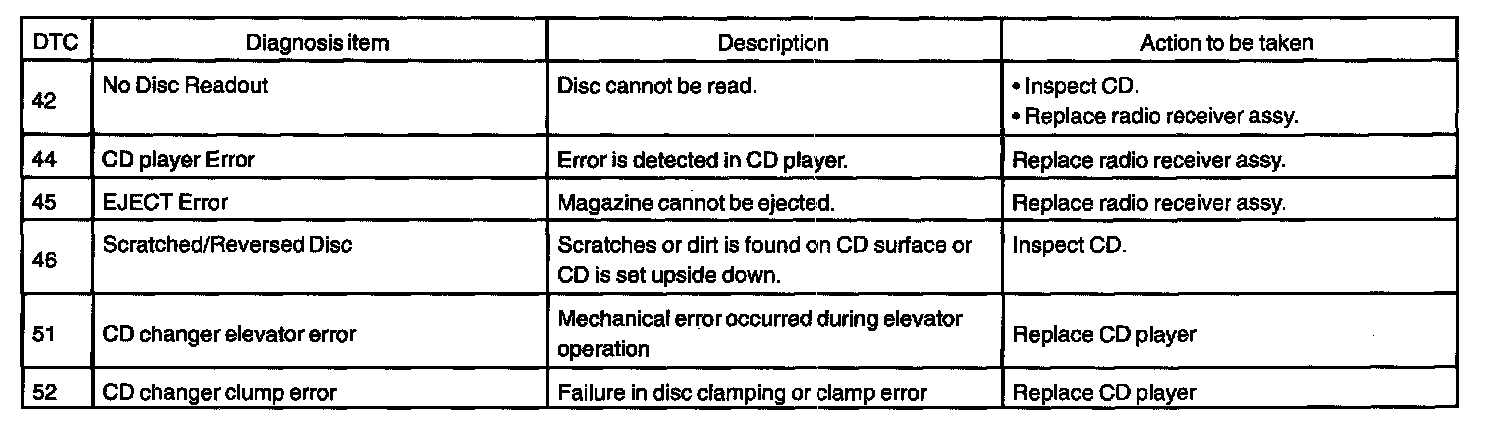

d. Logical address: 63 (In-dush CD changer)

2. FUJITSU TEN MADE:

50 - FF:

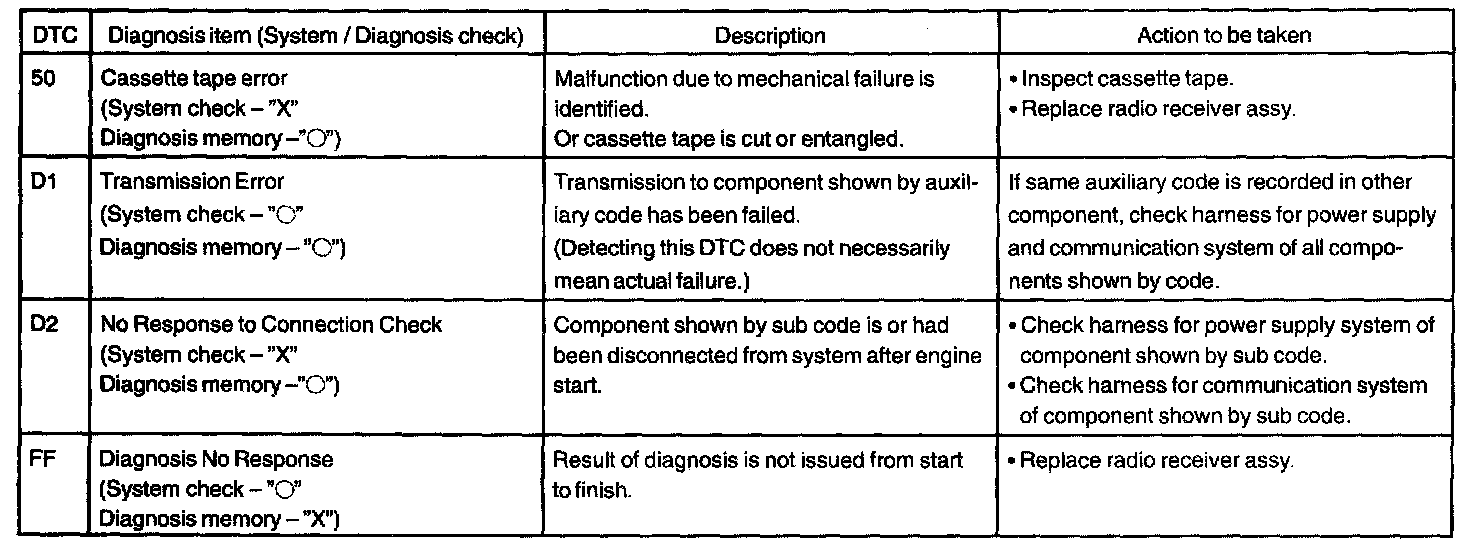

RADIO RECEIVER ASSY (Physical address: 190)
- If there is "0" in the column of system check, an error can be detected when the mode is switched to the system check mode.
- If there is "0" in the column of diagnosis memory, each unit is monitoring whether or not it has failure.
In case of detecting failure, it memorizes DTC.
