Removal

REMOVAL

NOTICE: Do not disassemble the shift lever assembly.

1. REMOVE STEERING WHEEL PAD
2. REMOVE STEERING WHEEL
3. REMOVE INSTRUMENT LOWER FINISH PANEL
4. REMOVE COLUMN LOWER AND UPPER PANELS
5. REMOVE COMBINATION SWITCH





6. REMOVE SHIFT LEVER ASSEMBLY

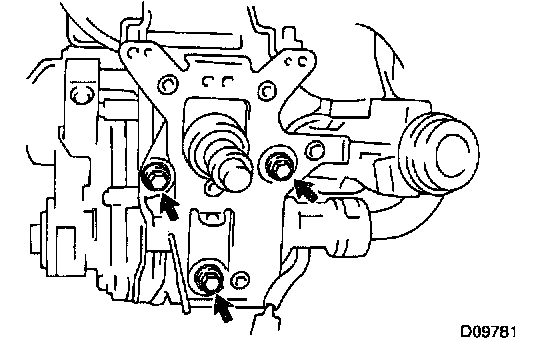

a. Remove the 3 bolts.
b. Disconnect the shift lever connector.
c. Disconnect the shift lever assembly and transmission control cable.
d. Remove the shift lever assembly.
