Installation

INSTALLATION





1. INSTALL SHIFT LEVER ASSEMBLY
a. Connect the shift lever assembly and transmission control cable.
b. Connect the shift lever connector.

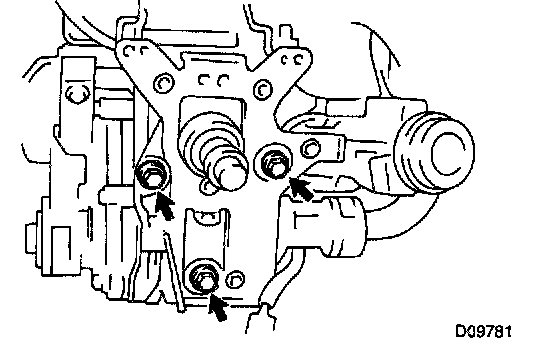

c. Install the shift lever assembly with the 3 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
2. INSTALL COMBINATION SWITCH
3. INSTALL COLUMN LOWER AND UPPER PANELS
4. INSTALL INSTRUMENT LOWER FINISH PANEL
5. INSTALL STEERING WHEEL
6. INSTALL STEERING WHEEL PAD
