Drive Sprocket

DISASSEMBLY

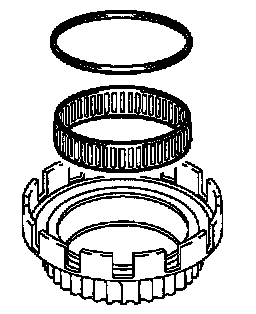

REMOVE NEEDLE BEARING

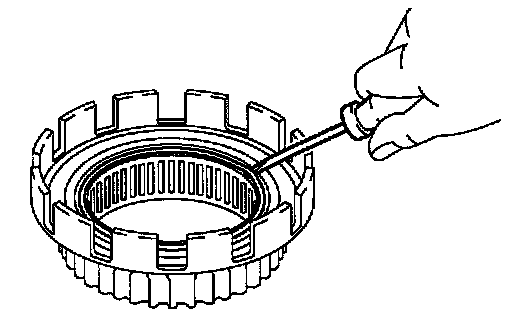

a. Using a screwdriver, remove the snap ring.





b. Remove the needle bearing and spacer.

INSPECTION

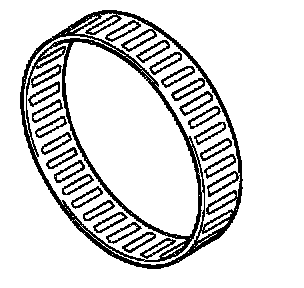

CHECK NEEDLE BEARING





Check that burnt spots, deformation or play due to the wear is not identified. If they are identified, replace the needle bearing.

REASSEMBLY

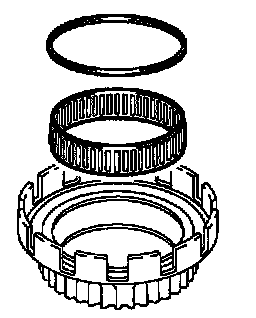

INSTALL NEEDLE BEARING





a. Install the needle bearing and spacer.

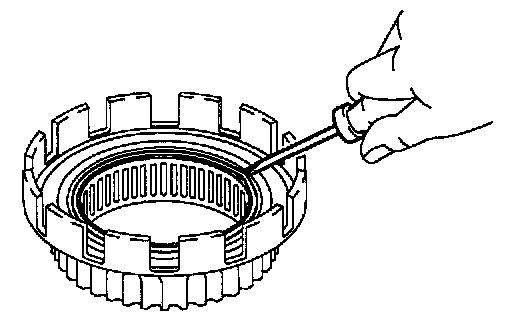

b. Using a screwdriver, install the snap ring.
