Cylinder Head Torque and Sequence

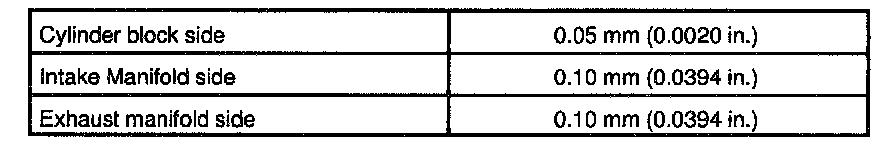

Cylinder Head Maximum Warpage

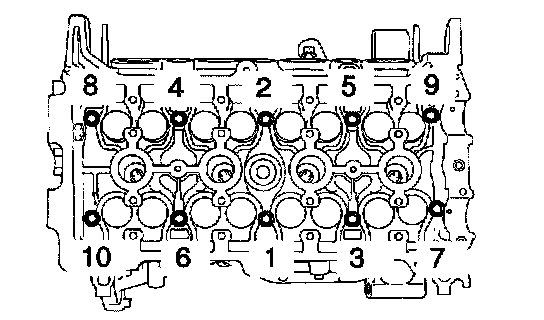

Cylinder Head Torque Sequence

Cylinder Head x Cylinder Block:
1st 29.4 N-m (300 kgf-cm, 22 ft-lbf)
2nd Turn 90°
3rd Turn 90°

No. 1 Camshaft Bearing Cap x Cylinder Head 23 N-m (235 kgf-cm 17 ft-lbf)

No. 2 Camshaft Bearing Cap x Cylinder Head 12.7 N-m (130 kgf-cm, 10 ft-lbf)

Intake Manifold x Cylinder Head 20 N-m (204 kgf-cm, 15 ft-lbf)

Exhaust Manifold x Cylinder Head 27 N-m (275 kgf-cm, 20 ft-lbf)
