Jam Protection Pulse Switch Circuit

CIRCUIT DESCRIPTION
Jam protection pulse switch is built-in the power window motor. Pulse switch outputs ON/OFF pulse when the motor rotates.

Wiring Diagram:

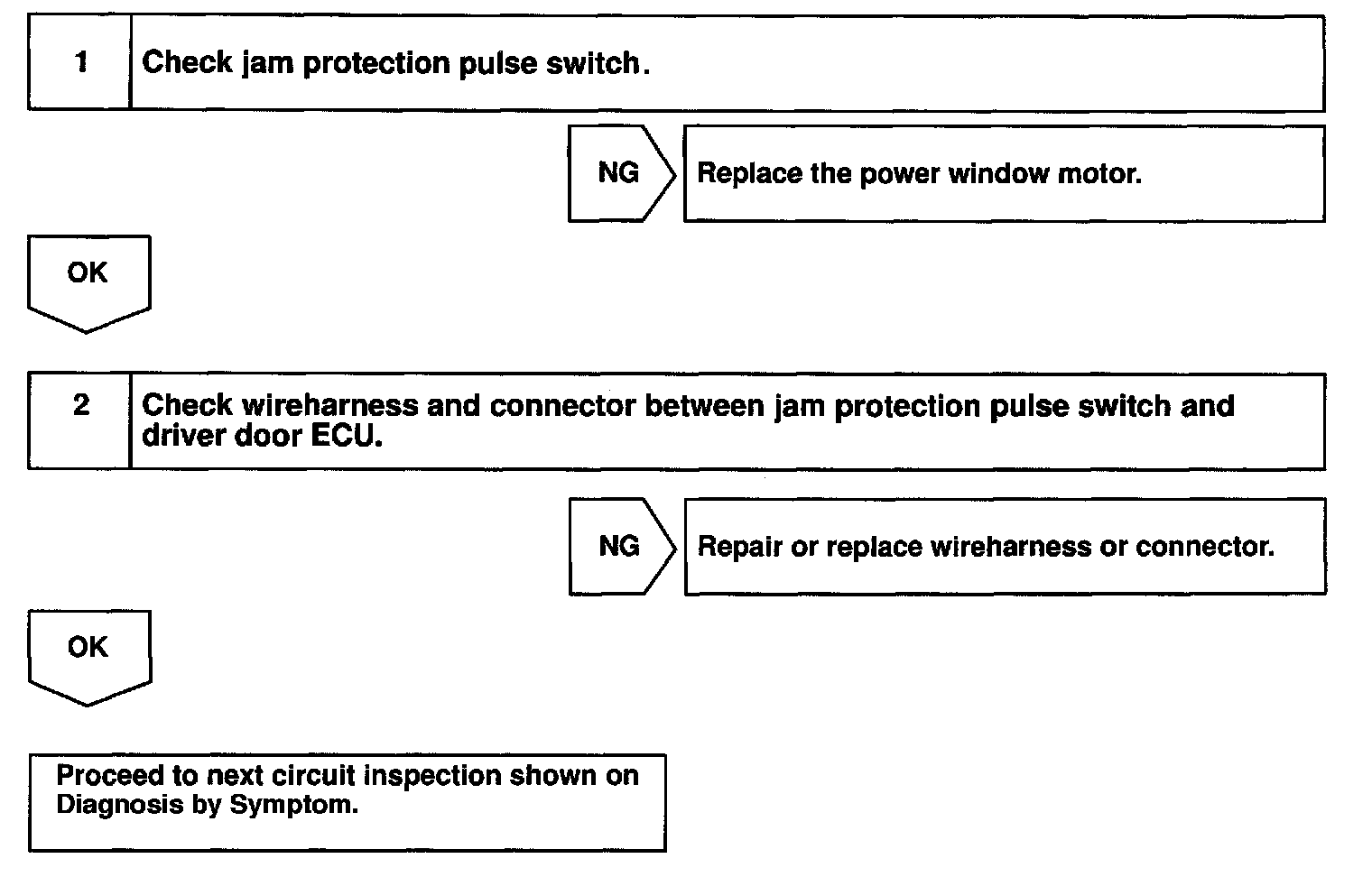

Steps 1 - 2:




INSPECTION PROCEDURE
