Variable Valve Timing Actuator: Service and Repair

CAMSHAFT TIMING CONTROL VALVE

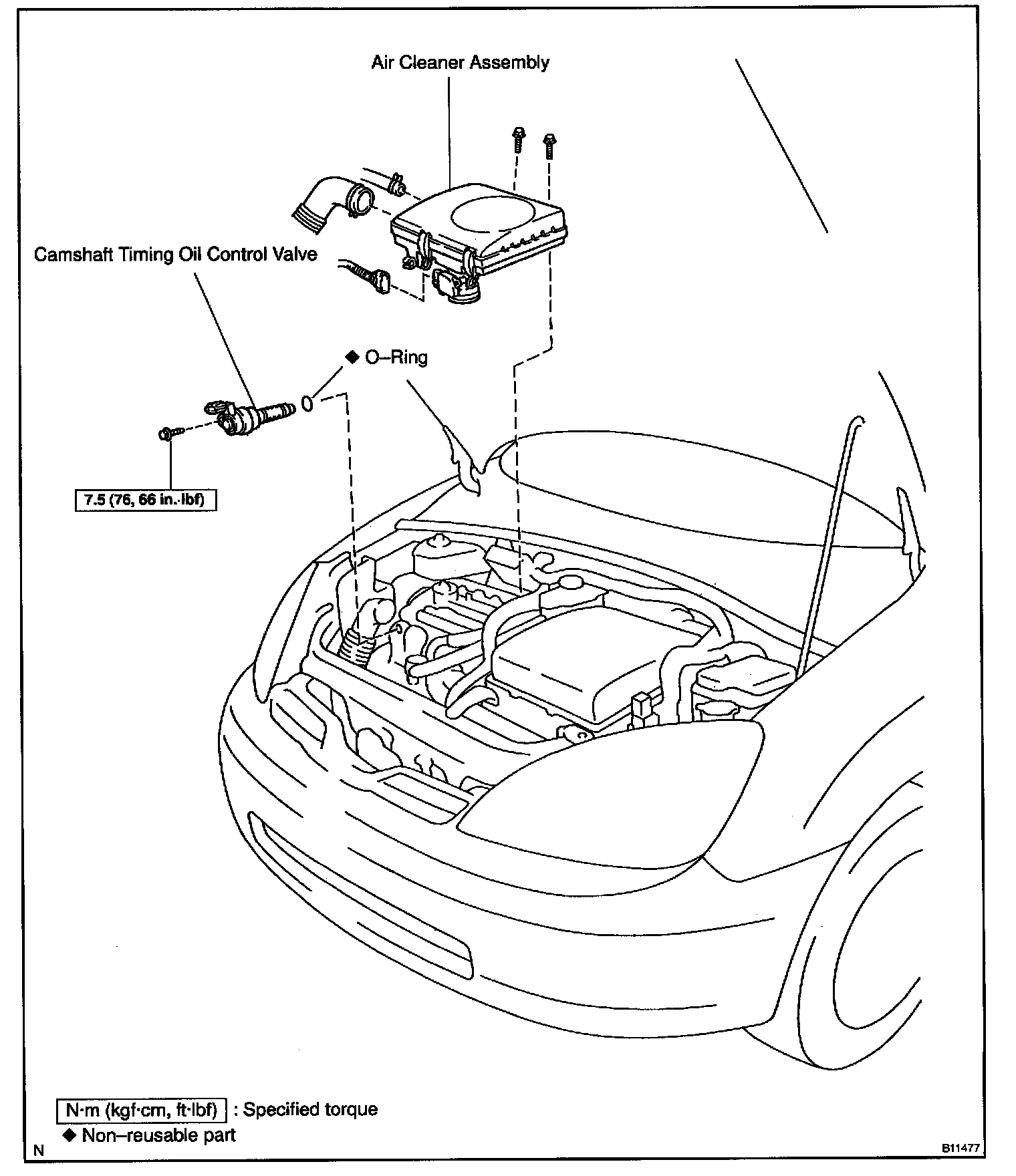

Camshaft Timing Oil Control Value:

REMOVAL

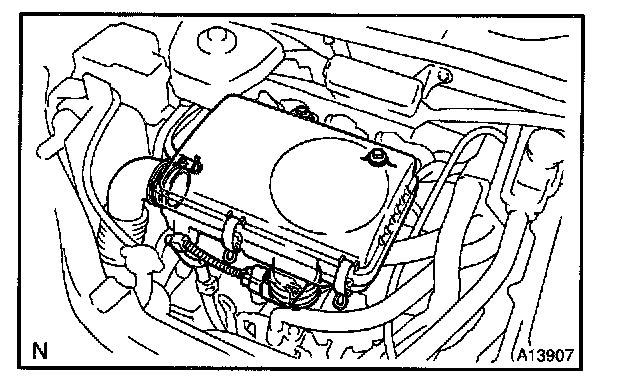

1. REMOVE AIR CLEANER ASSEMBLY

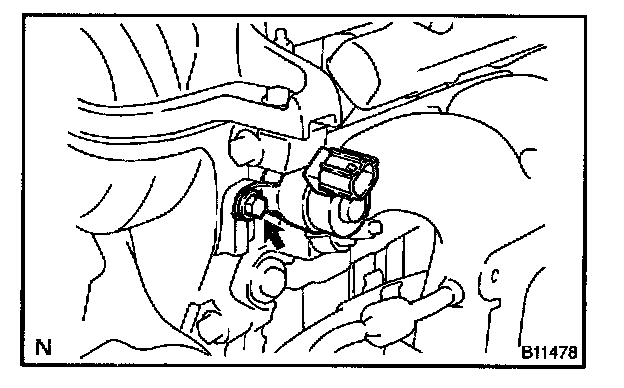

2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
a. Disconnect the oil control valve connector.
b. Remove the bolt, oil control valve and O-ring.

INSTALLATION

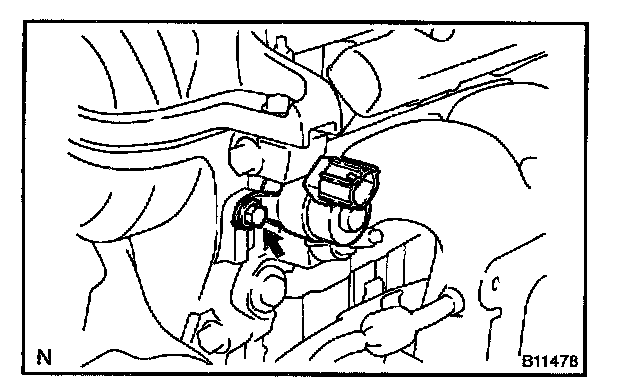

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE
a. Install the bolt, oil control valve and O-ring.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

b. Connect the oil control valve connector.

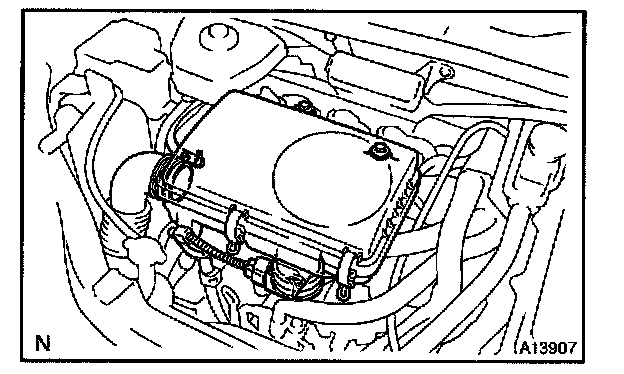

2. INSTALL AIR CLEANER ASSEMBLY
