Canada - Hybrid Vehicle ECU - MIL ON/DTCs P0300/01/02/03/04 Set

Bulletin
1078

Issue Date
2002-04-15

Reference
EE-02-004

Model
Prius

Year Range
2001

Market
Canada

Component
EE

Subject:
M.I.L. "ON", ENGINE MISFIRE P0300/01/02/03/04

TSB Update Notice:
The information contained in this TSB supercedes Bulletin 0963, Ref: EE-01-003 dated May 18, 2001.Revised text is in red and underlined.

Some 2001 model year Prius vehicles may exhibit a M.I.L. "ON" condition with Diagnostic Trouble Codes P0300, P0301, P0302, P0303, P0304 stored in the Engine ECU. Use the following procedure to diagnose and correct this condition.

APPLICABLE VEHICLES: 2001 model year Prius vehicles.

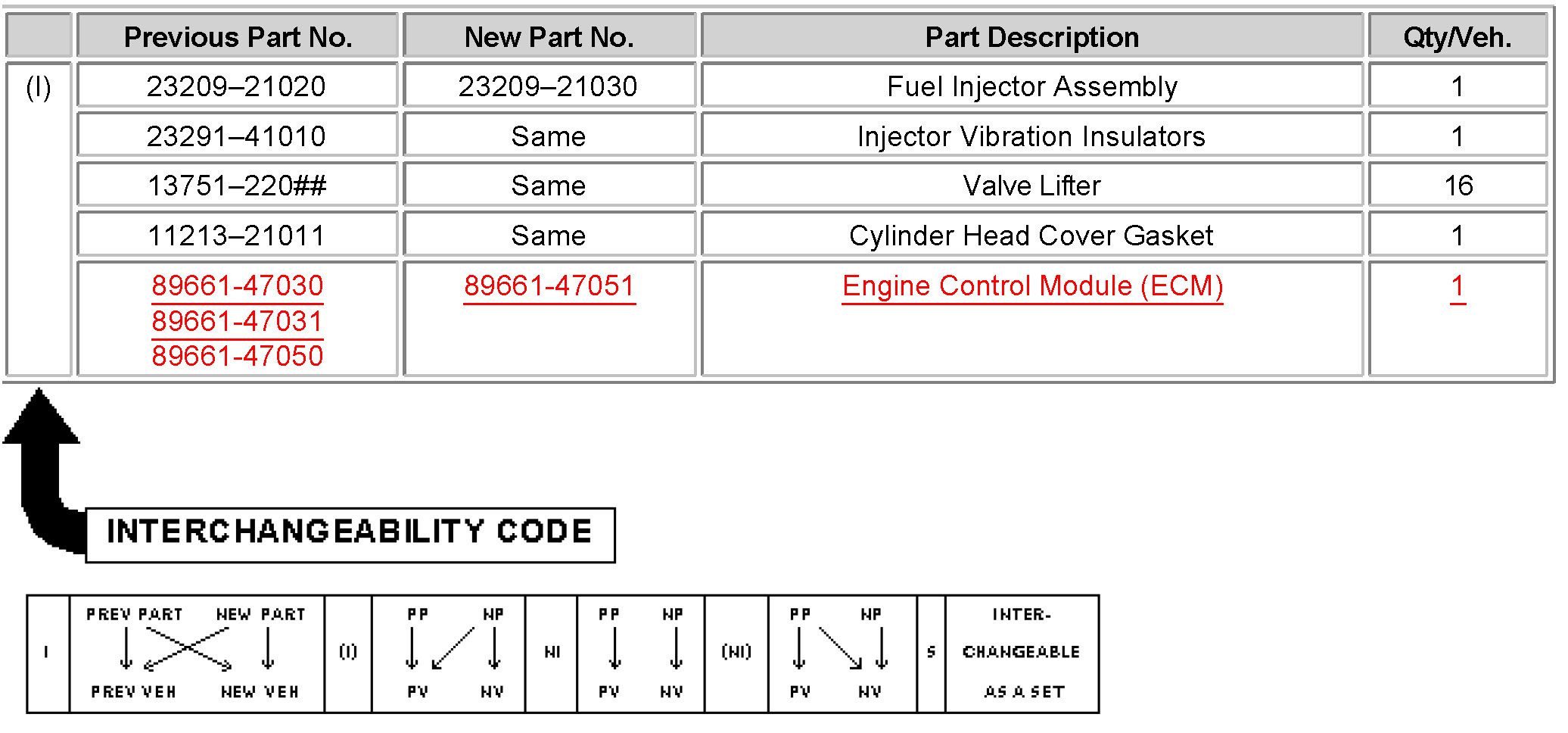

PARTS INFORMATION:

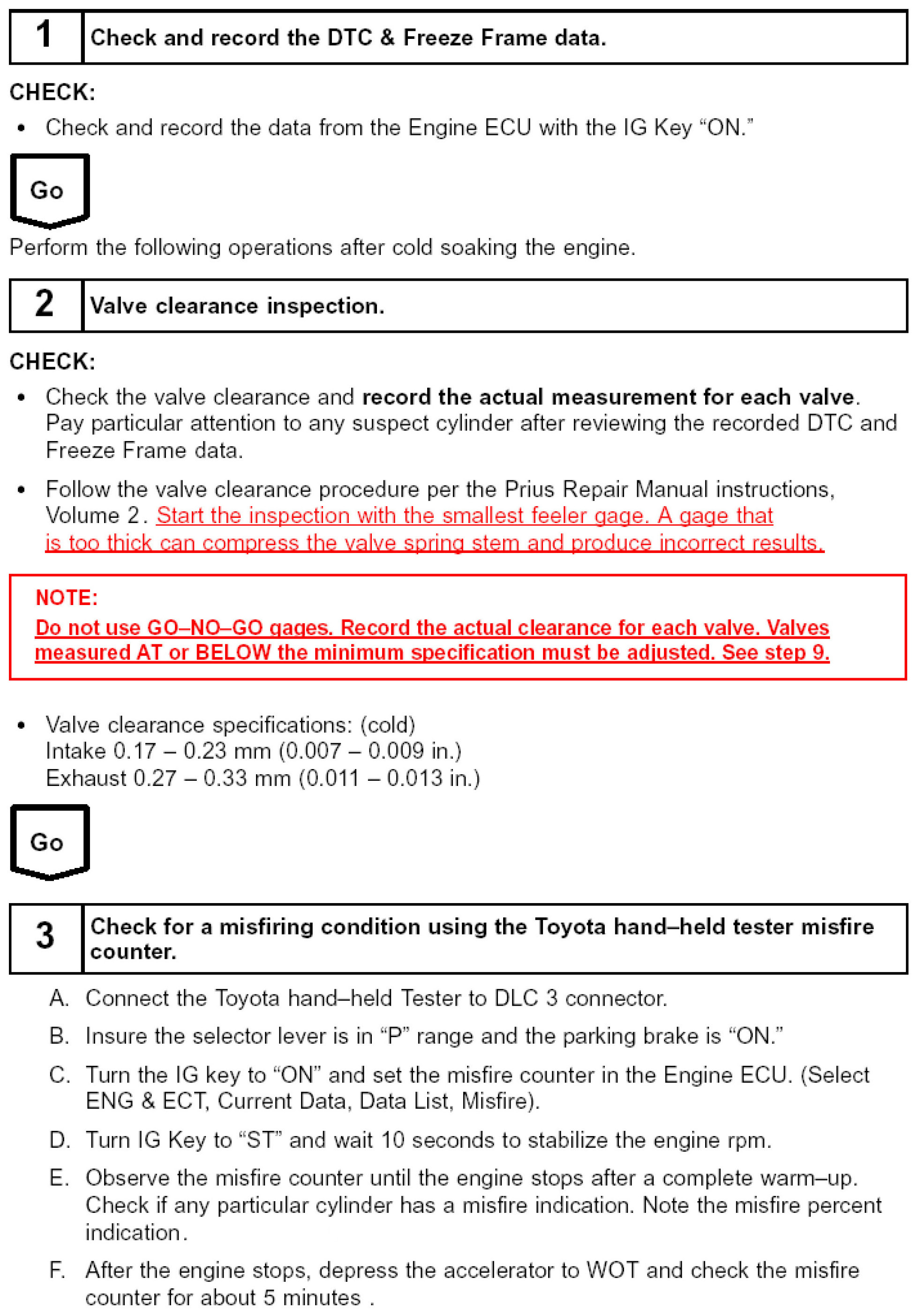

REPAIR PROCEDURE:

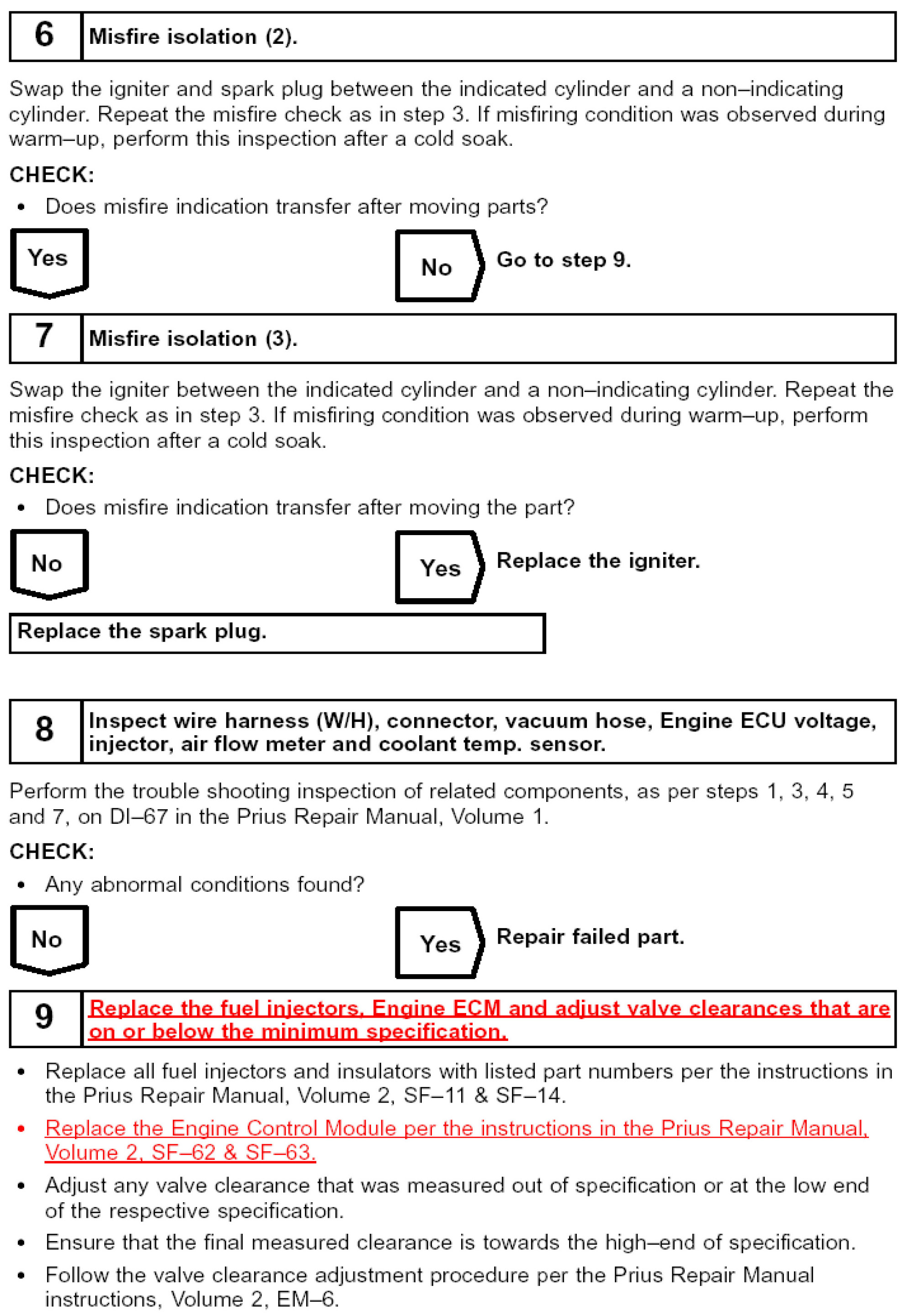

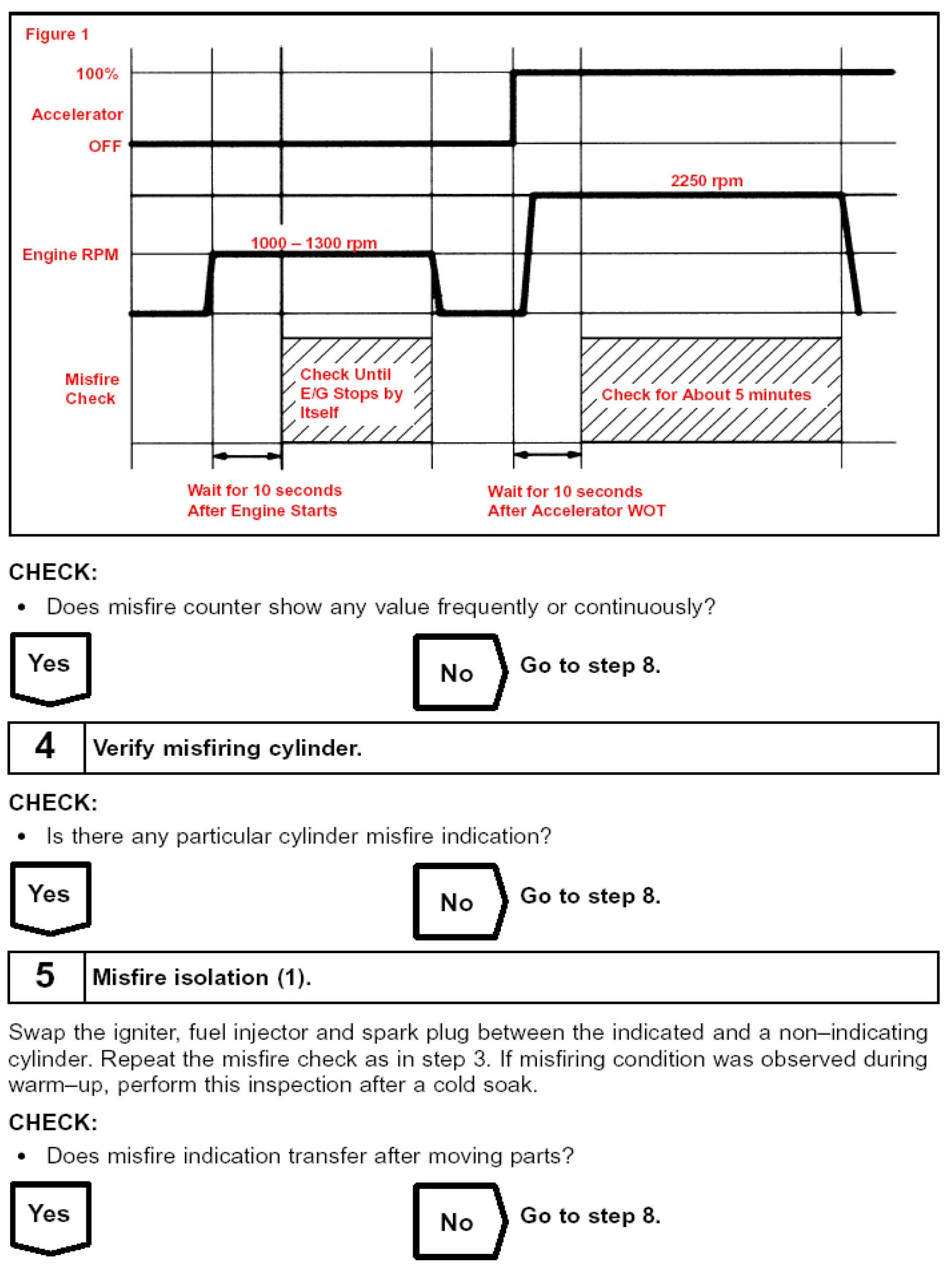

Use the procedure to isolate the cause for the misfire condition.

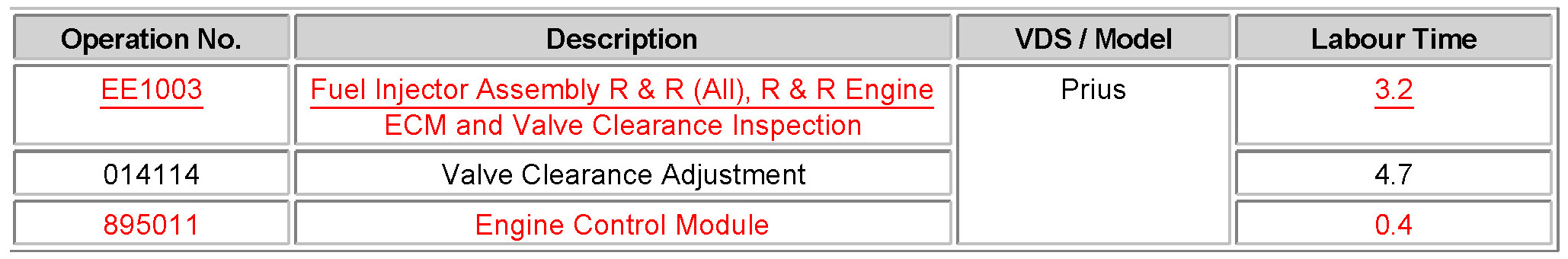

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
