Pinout Values and Diagnostic Parameters

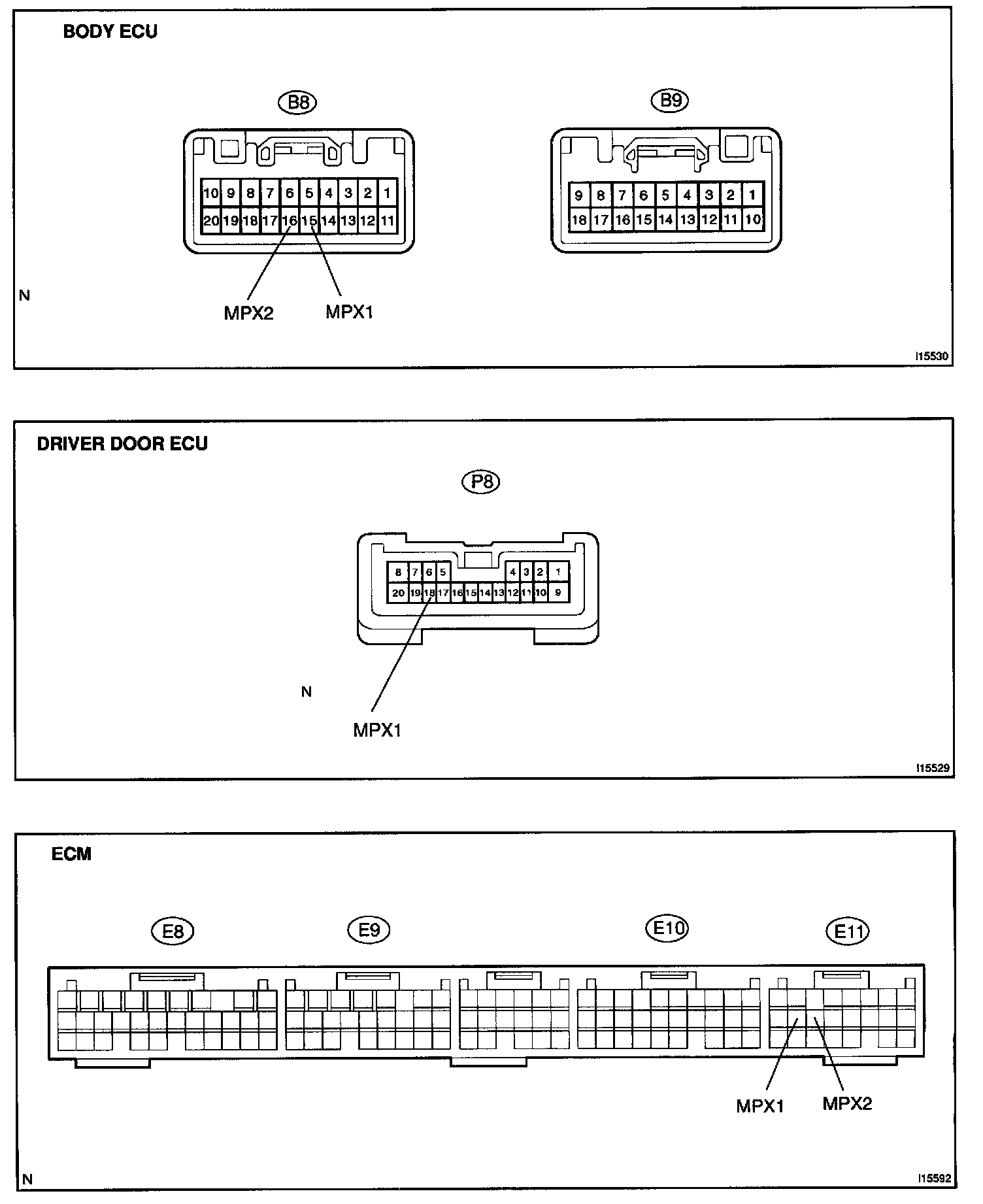

Terminals Of ECU (Body ECU , Driver Door ECU , ECM) - Connector View:

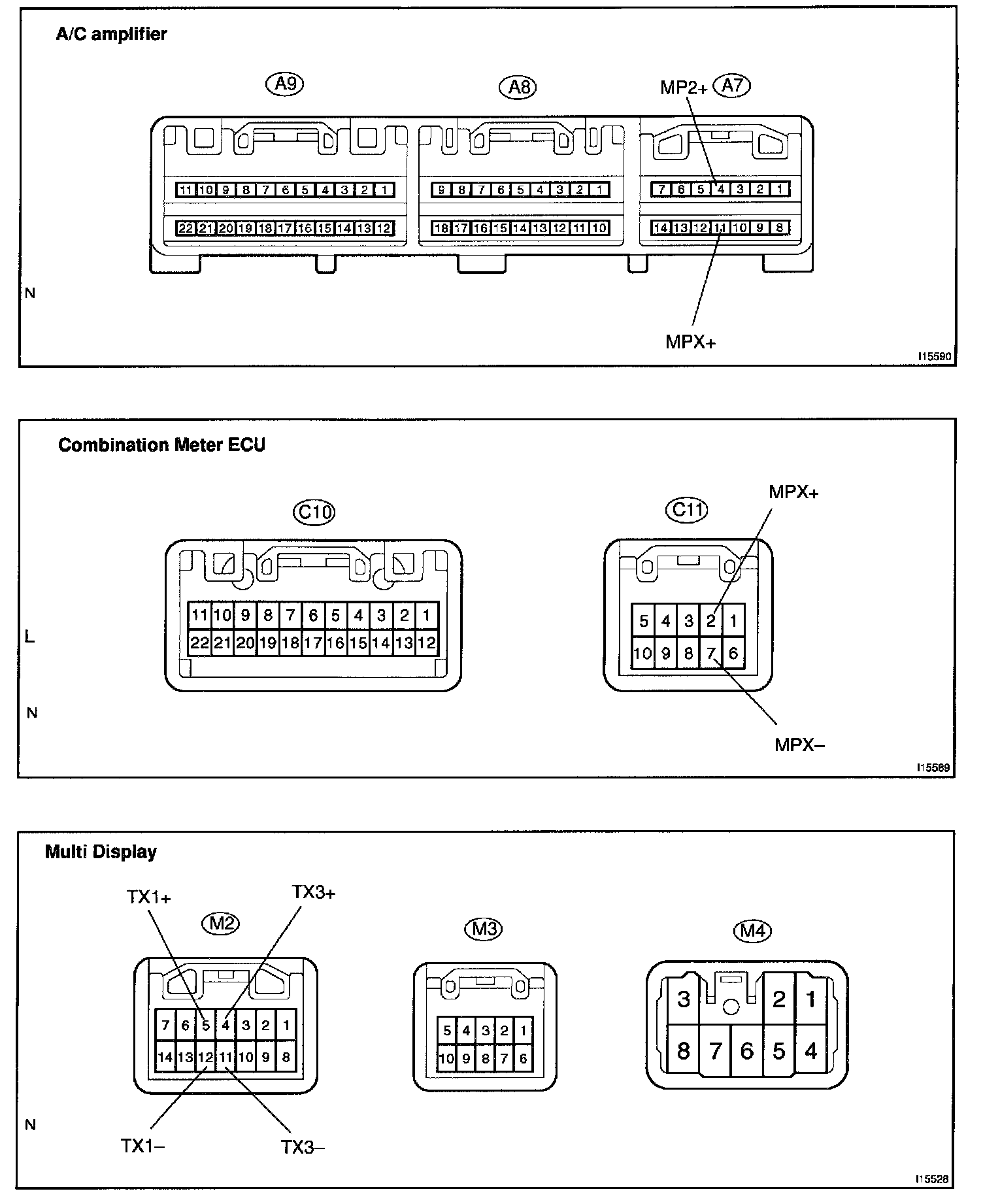

Terminals Of ECU (A/C Amplifier , Combination Meter ECU , Multi Display) - Connector View:

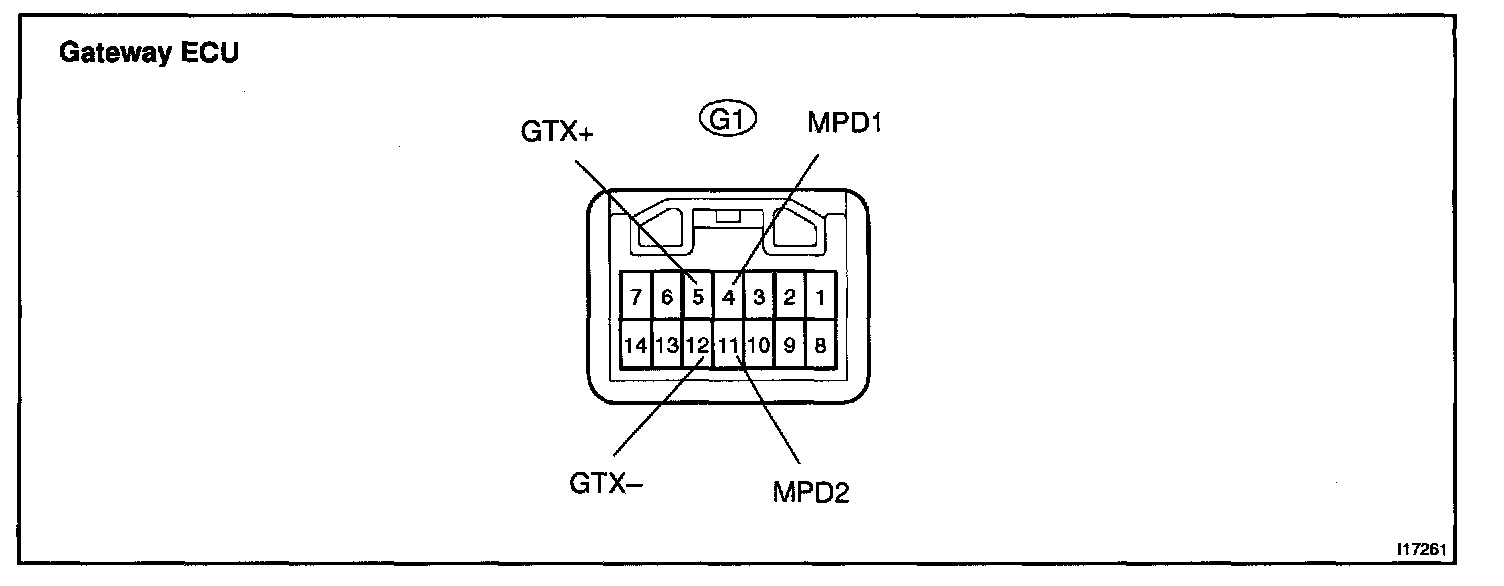

Terminals Of ECU (Gateway ECU) - Connector View:

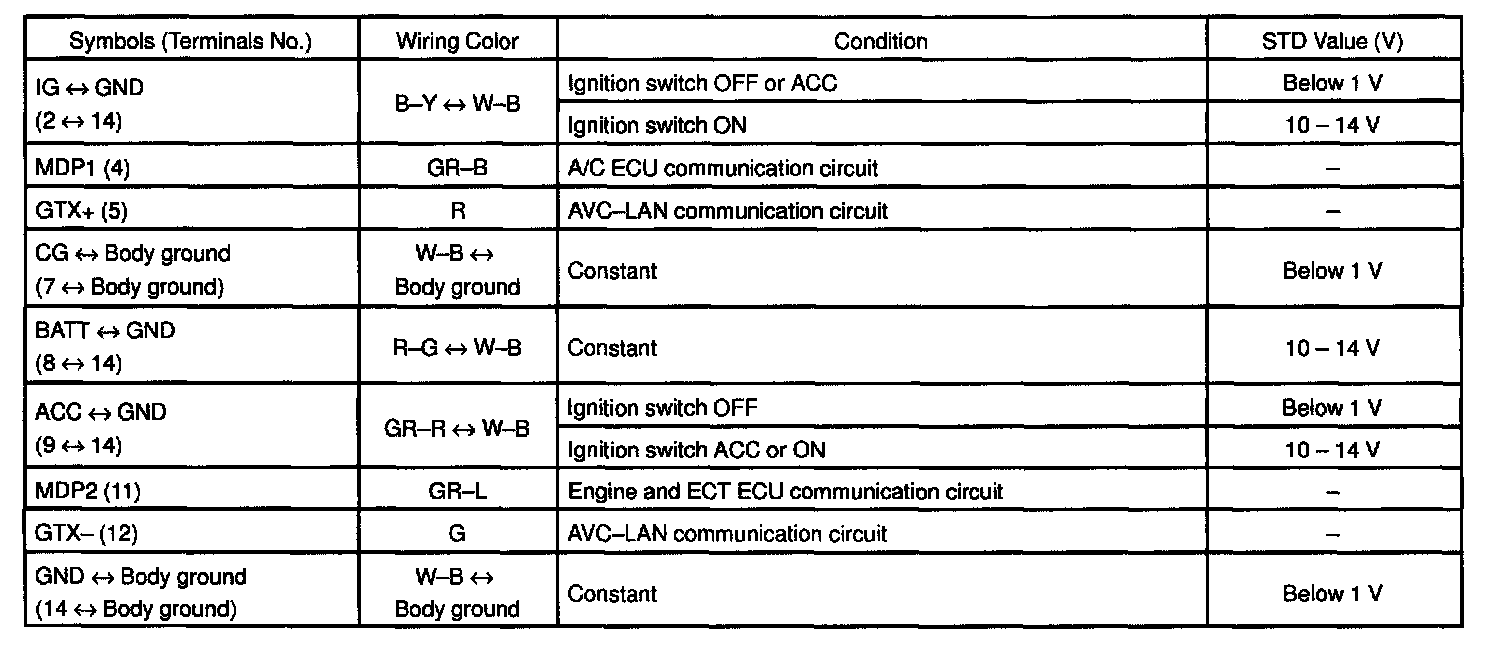

Terminals Of ECU - Pinouts:
