CIRCUIT DESCRIPTION
This circuit provides power to operate the gateway ECU.

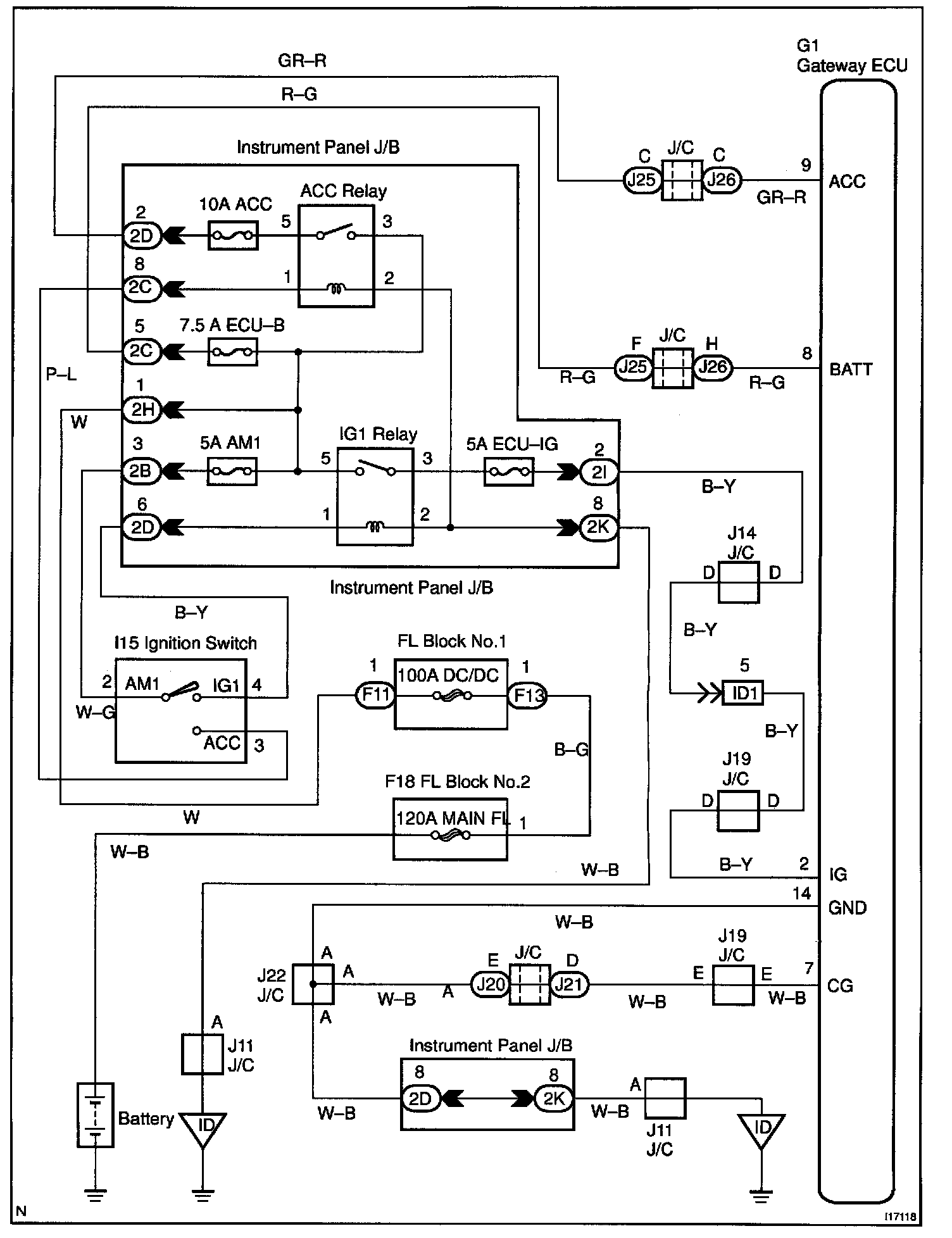

Wiring Diagram:

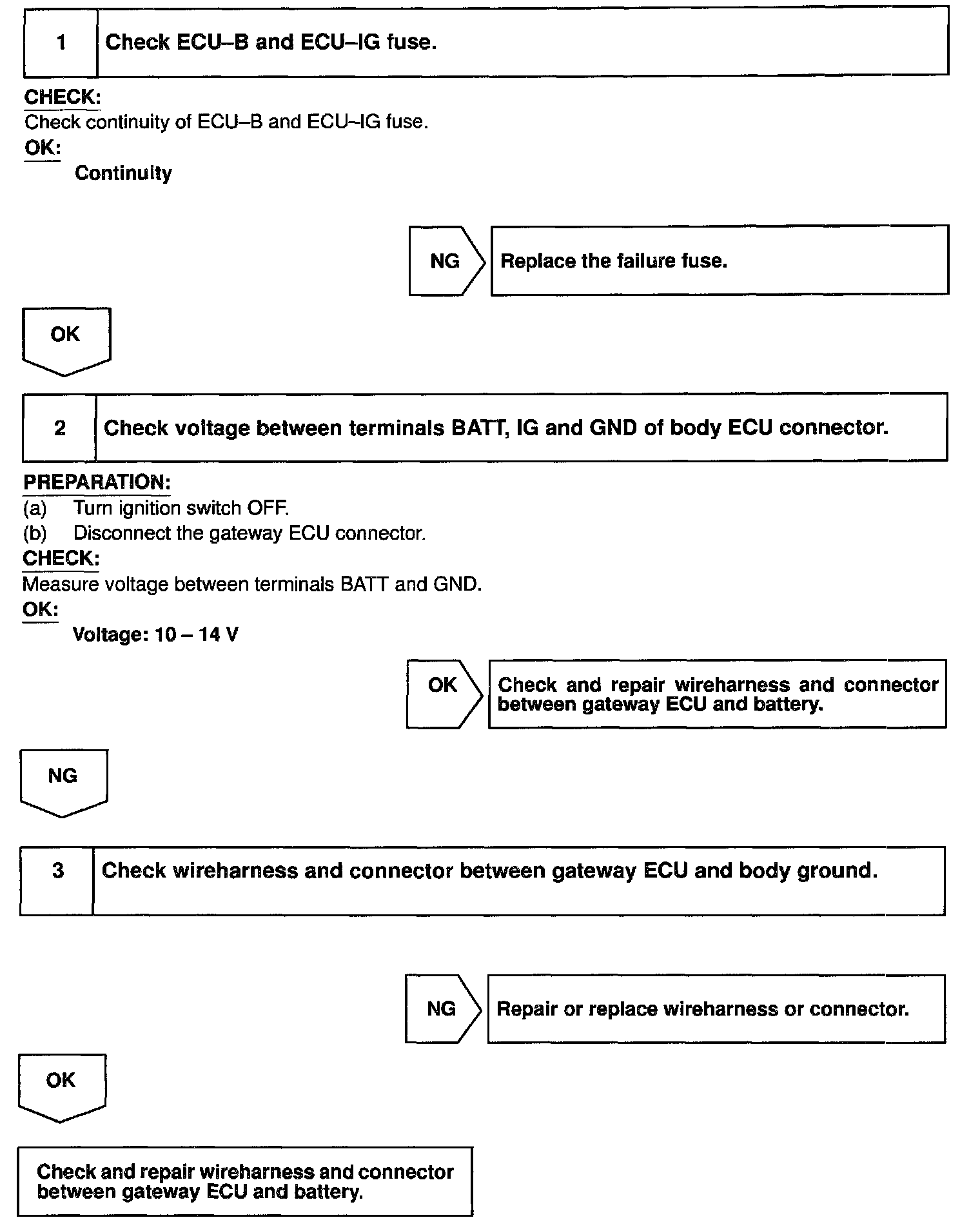

Steps 1 - 3:
INSPECTION PROCEDURE
