Fuse: Application and ID

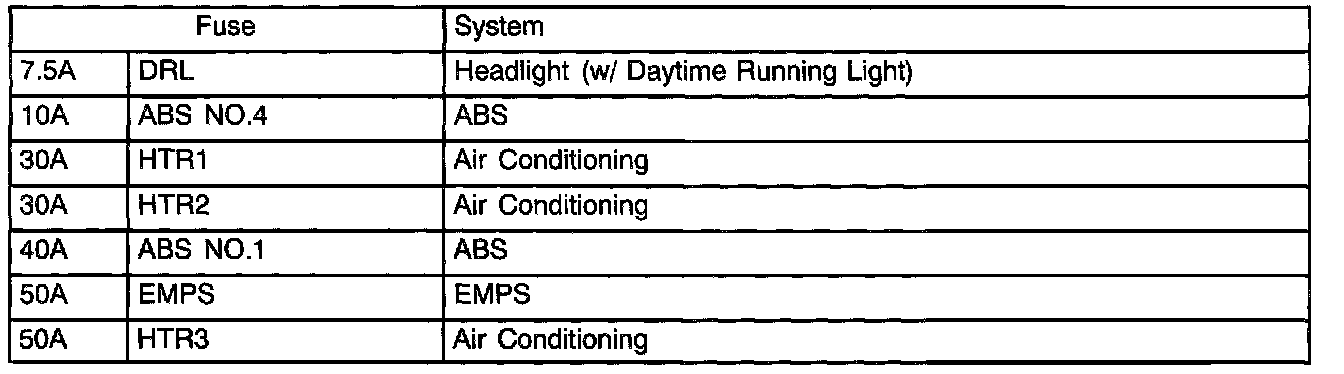

Fusible Link Block No.1 Fuse Applications:

Engine Room R/B No.3 Fuse Applications:

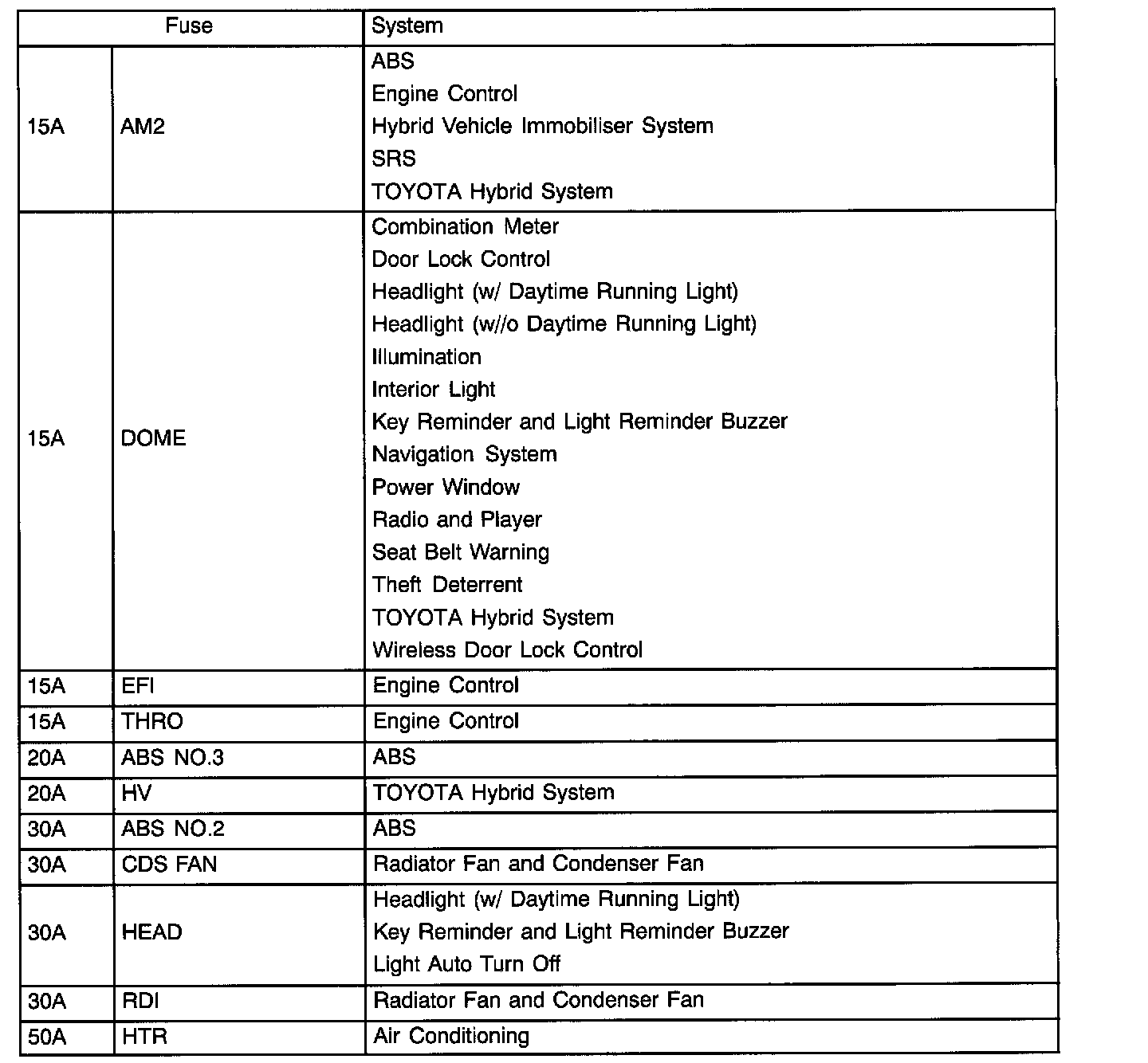

Engine Room J/B Fuse Applications (Part 1):

Engine Room J/B Fuse Applications (Part 2):

Engine Compartment Fuse Identification

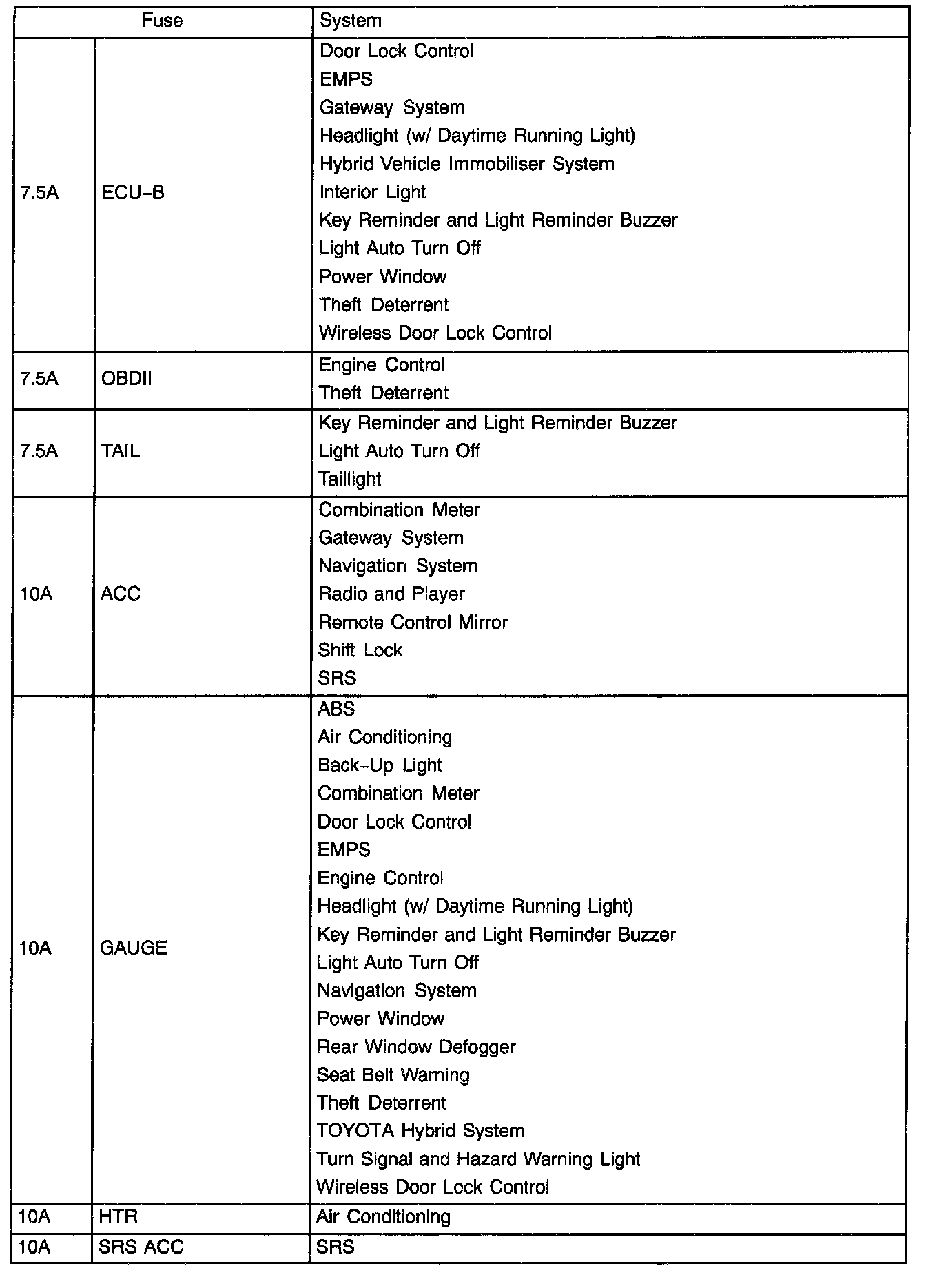

Instrument Panel J/B Fuse Applications (Part 1):

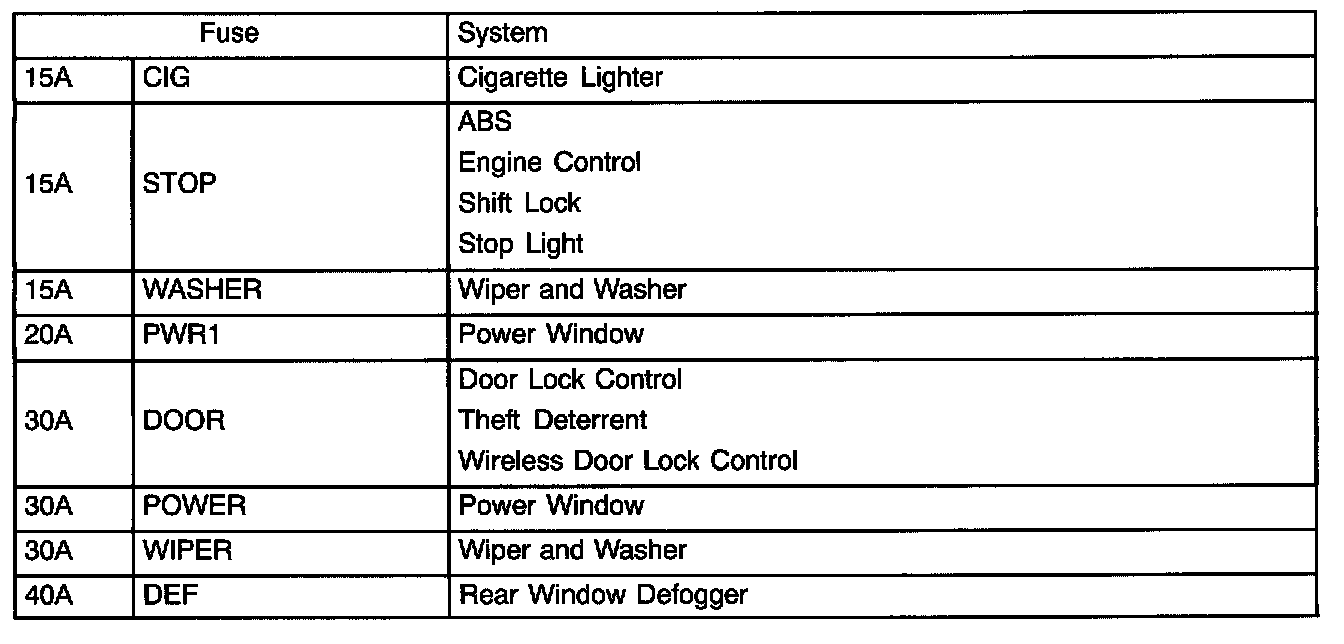

Instrument Panel J/B Fuse Applications (Part 2):

Instrument Panel J/B Fuse Applications (Part 3):

Interior Panel Fuse Identification

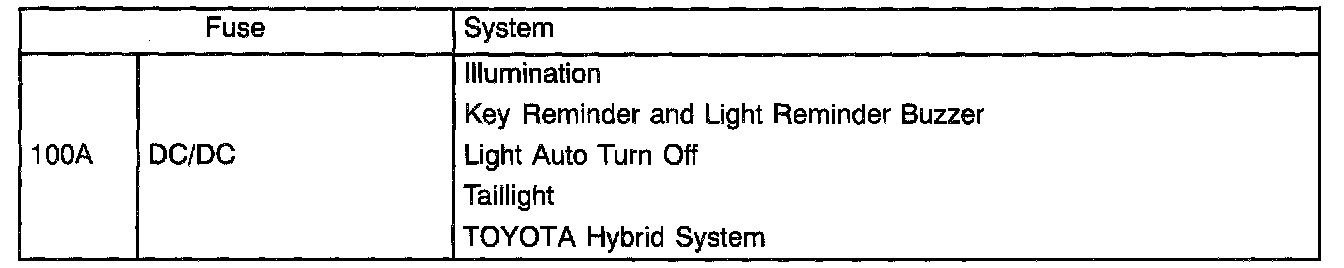

Fusible Link Block No.2 Fuse Applicatoins:

Body Fuse Identification
