Hybrid Vehicle Control System

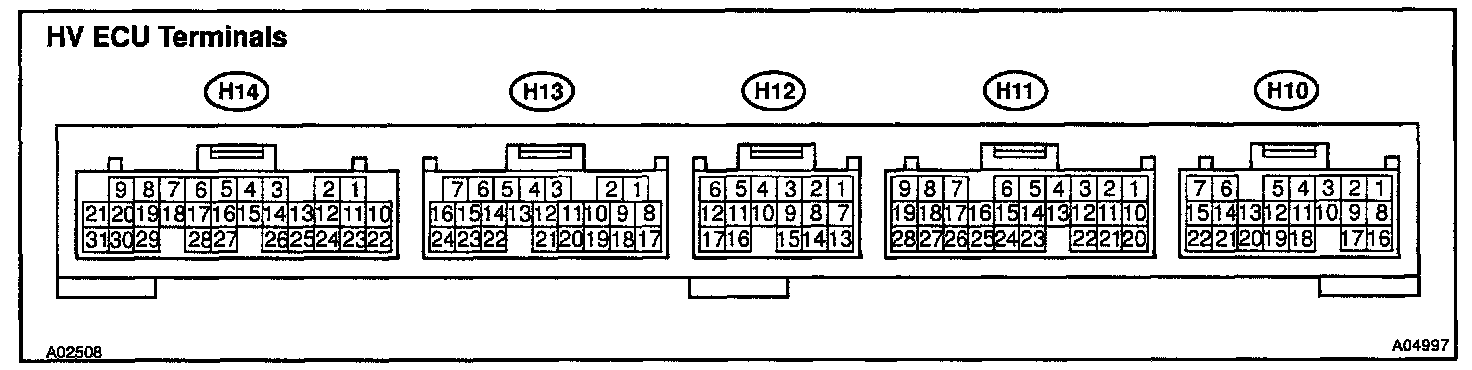

Terminals Of ECU - Connector View:

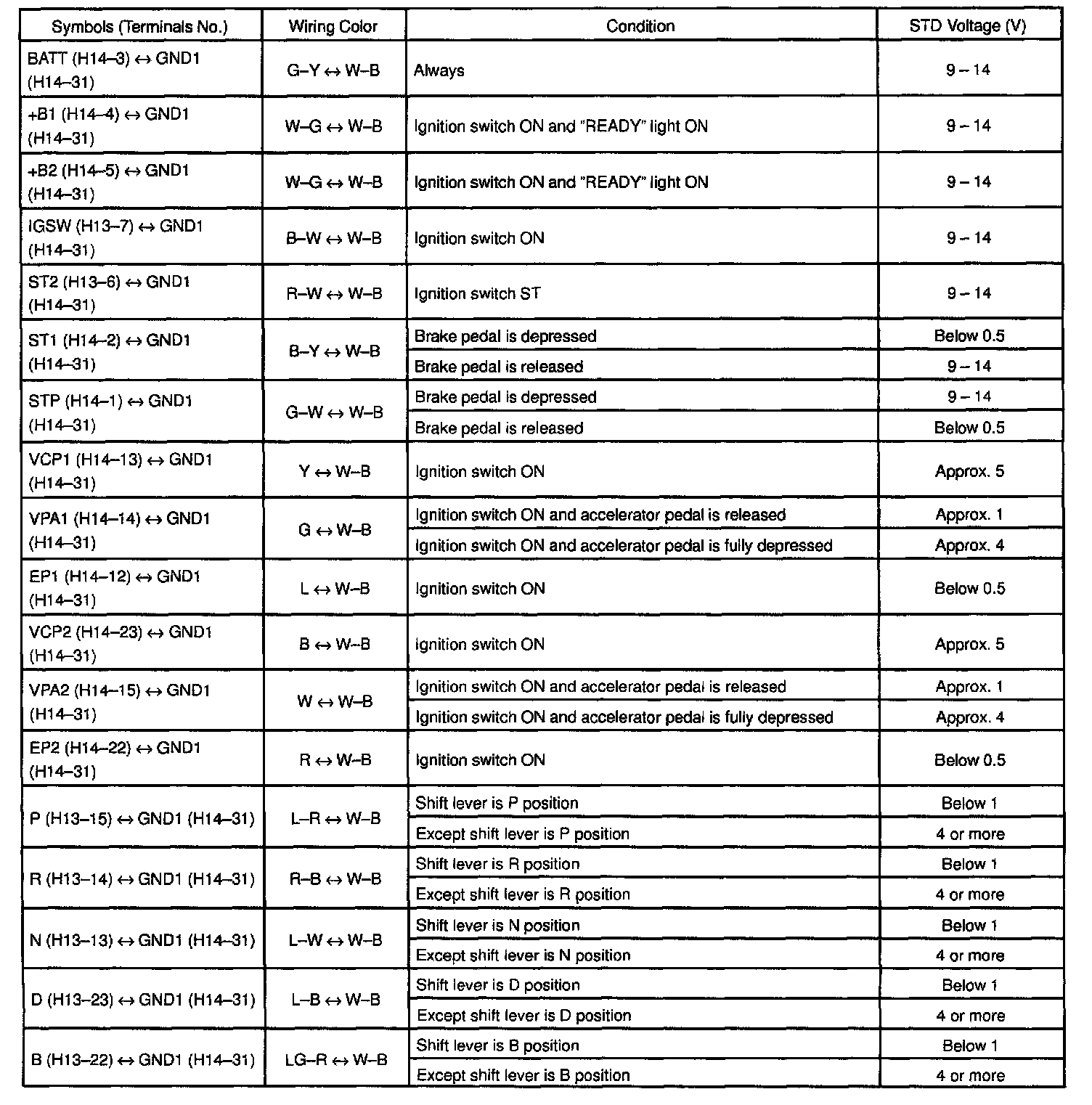

Terminals Of ECU - Pinouts (Part 1):

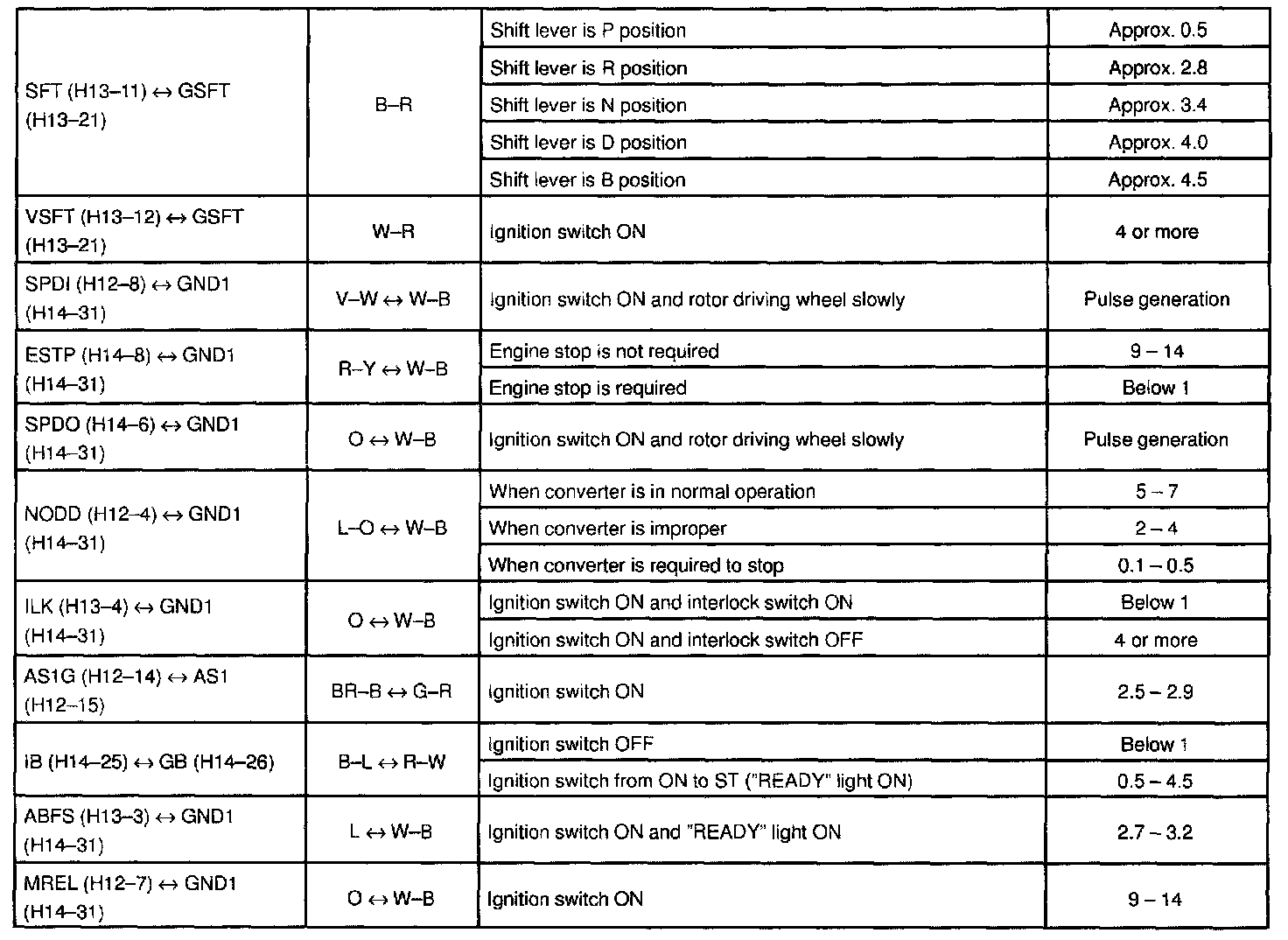

Terminals Of ECU - Pinouts (Part 2):

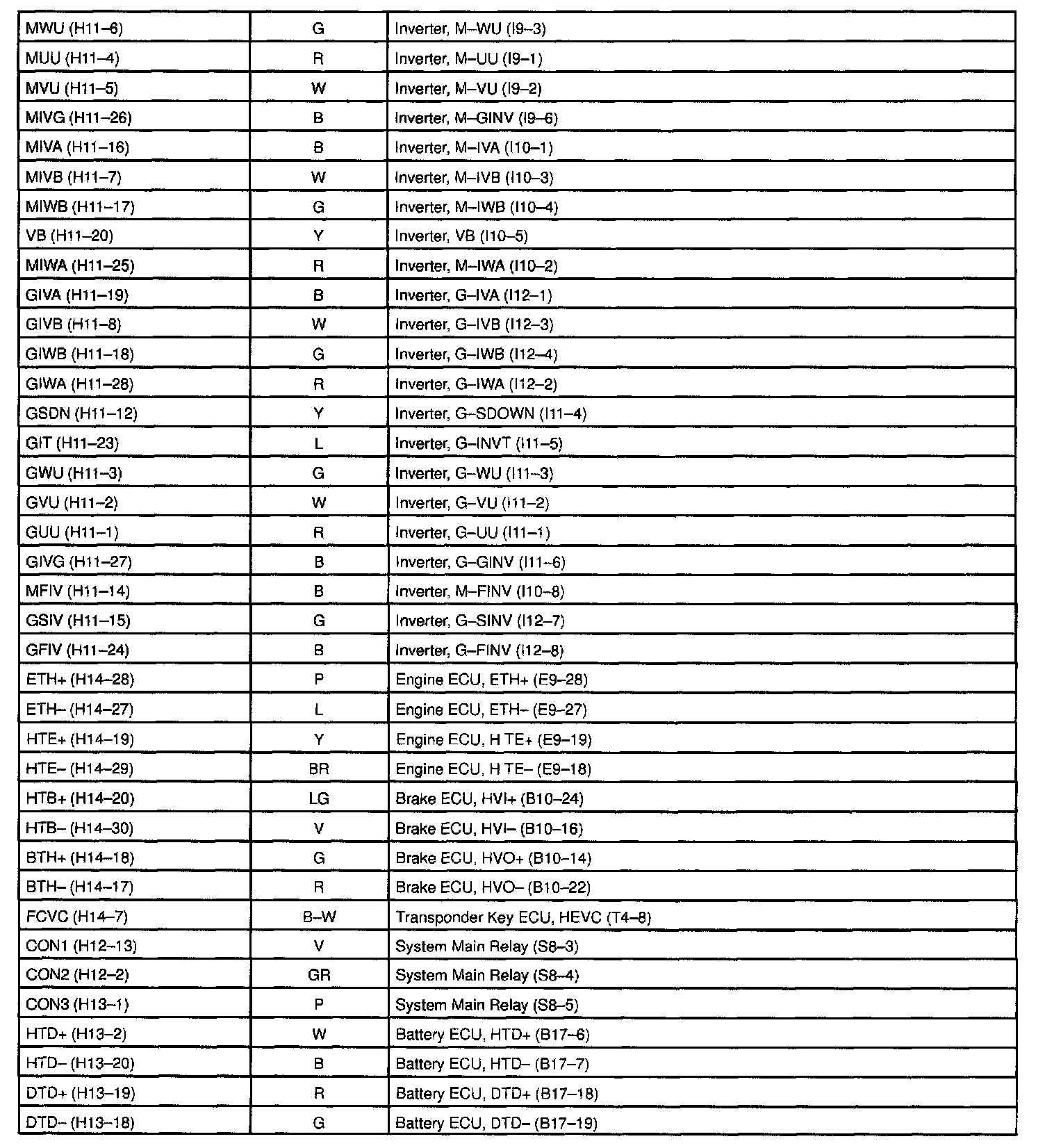

Terminals Of ECU (Communication Line) - Pinouts (Part 1):

Terminals Of ECU (Communication Line) - Pinouts (Part 2):
