Fail-Safe Operation

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:

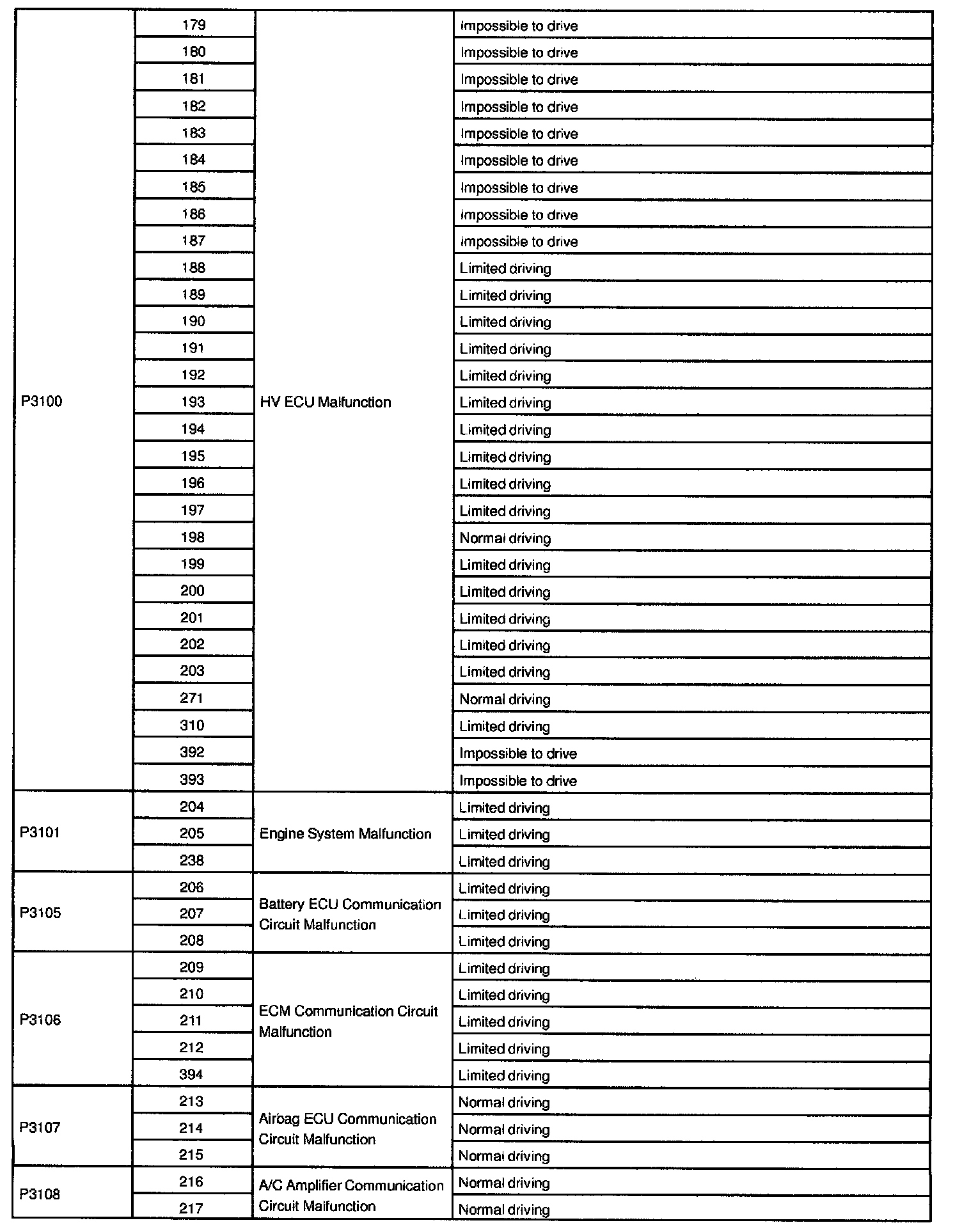

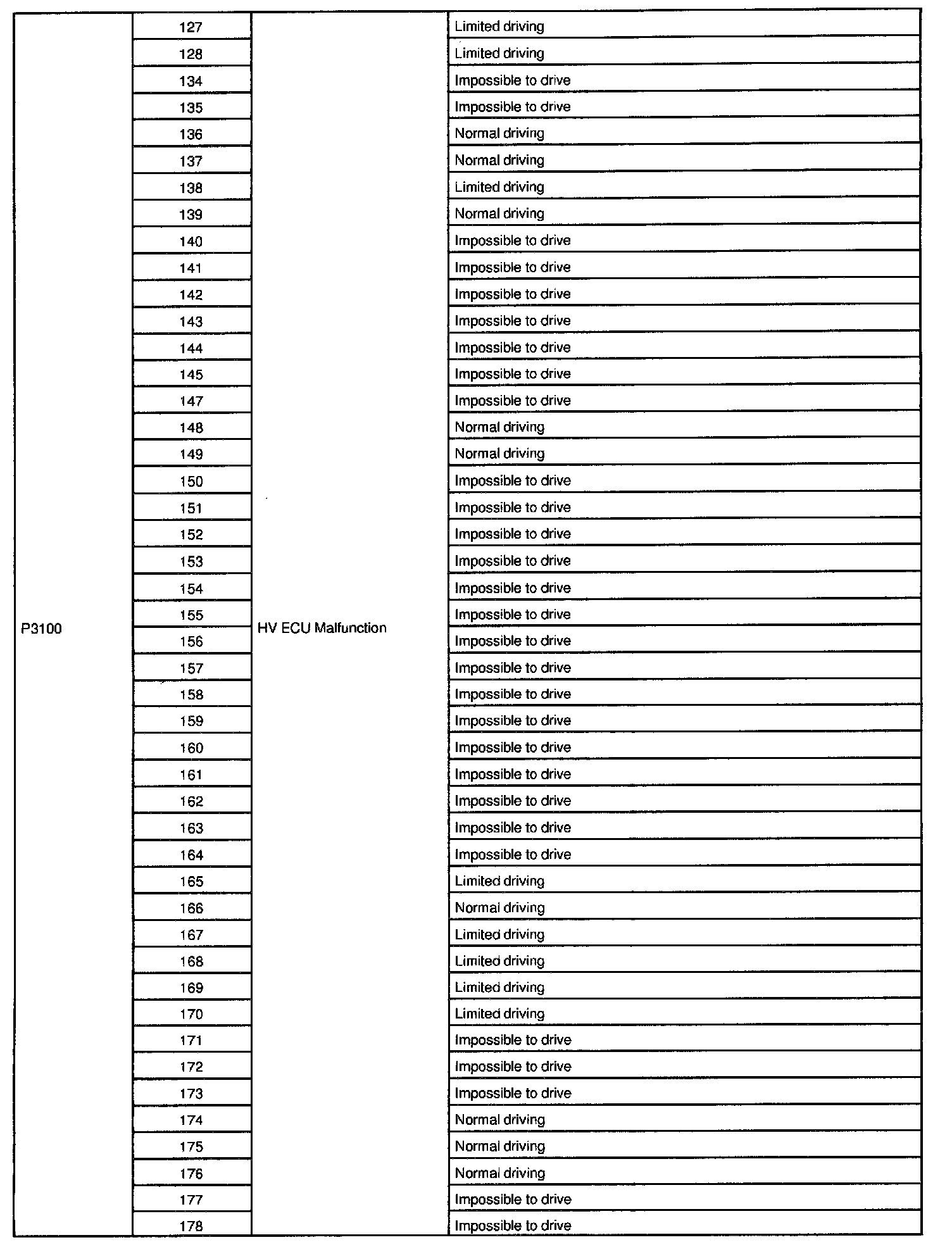

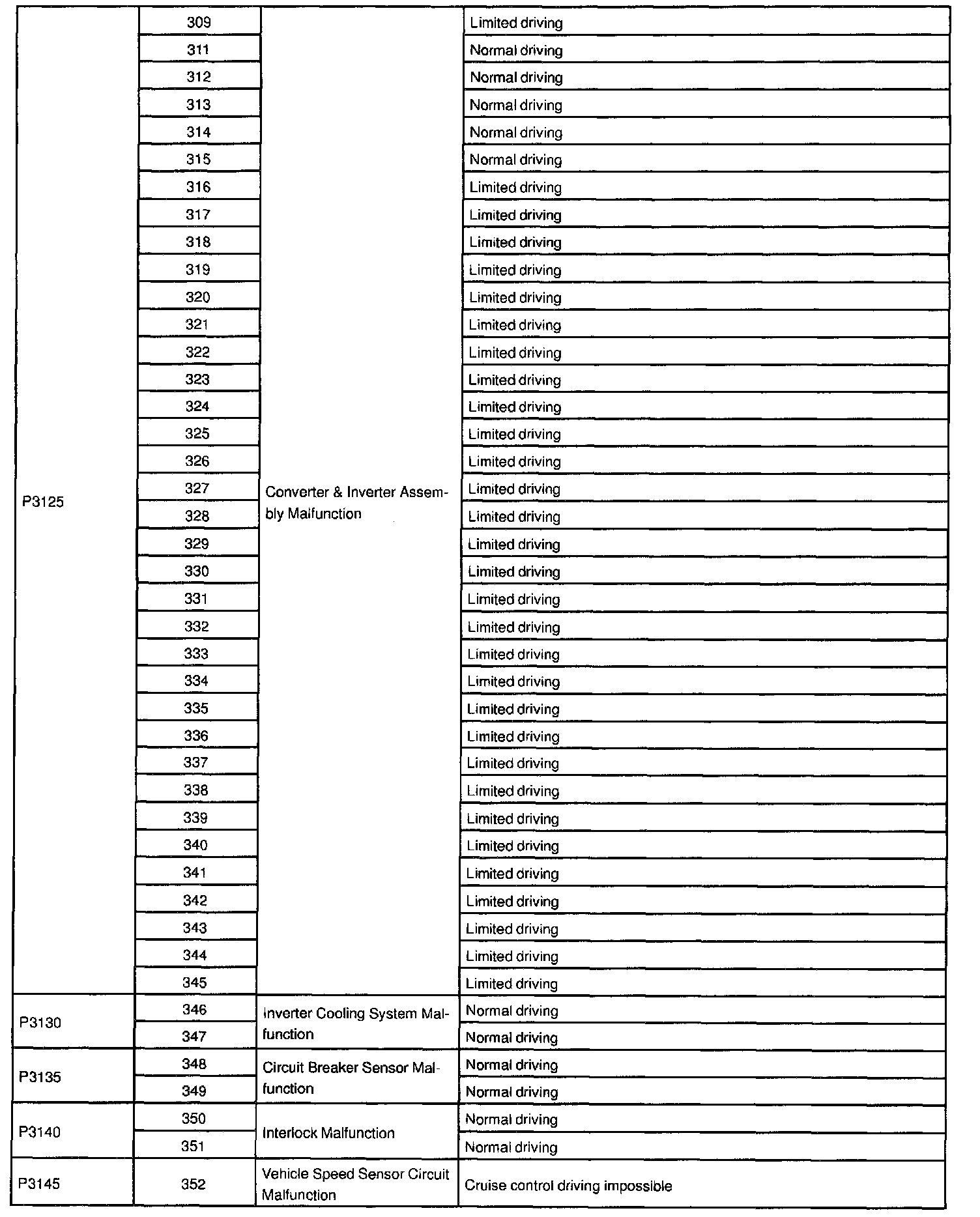

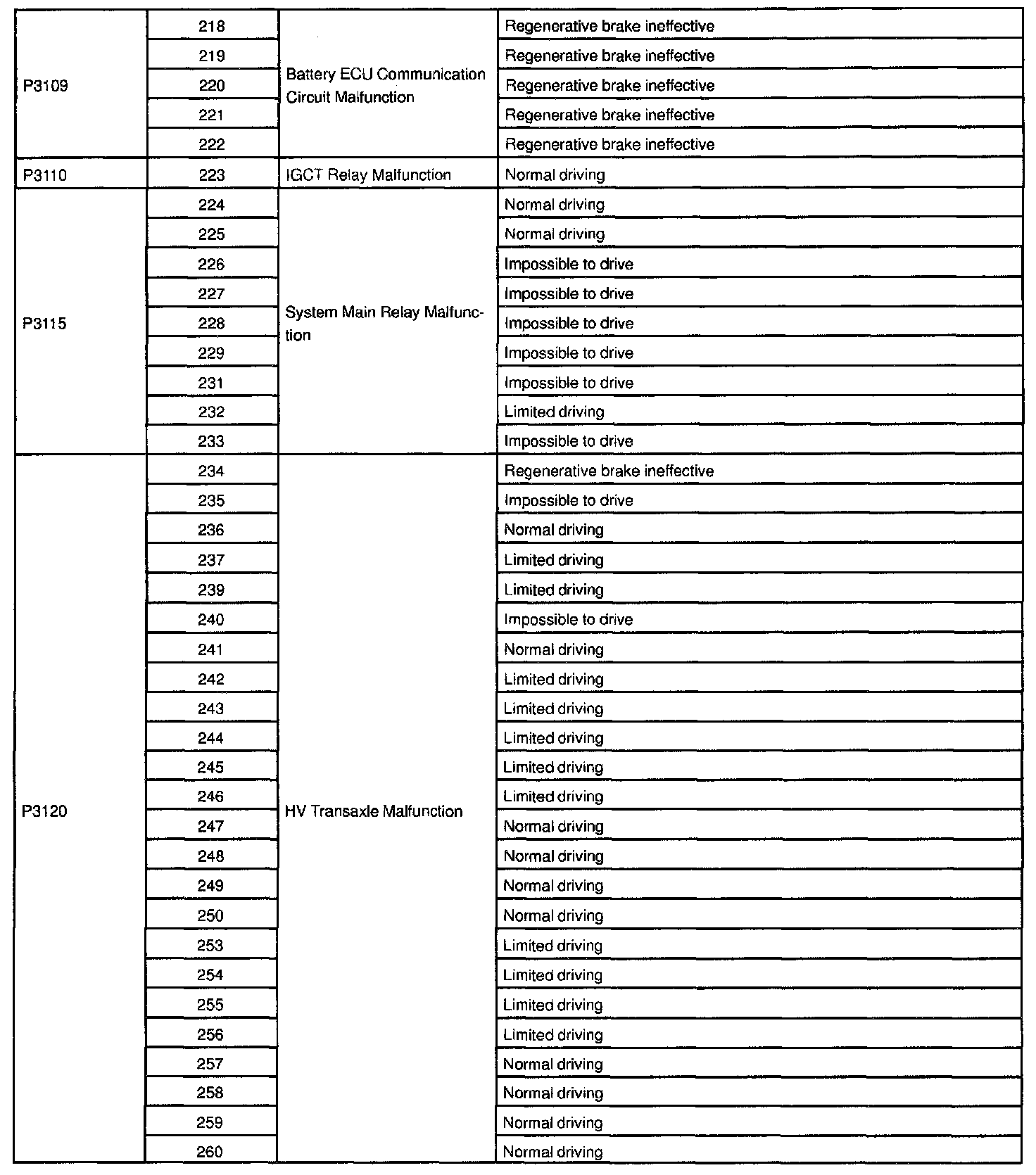

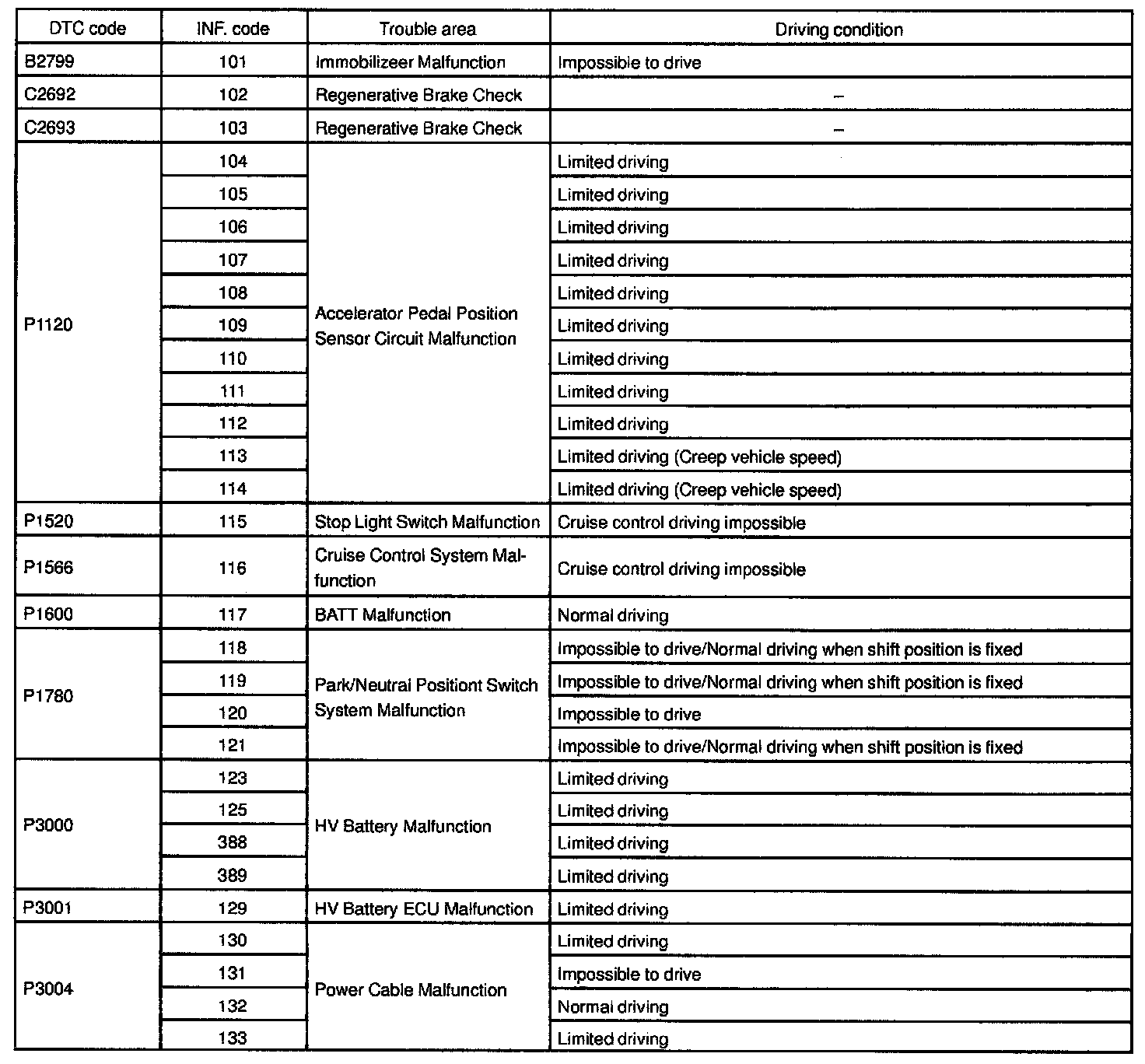

FAIL-SAFE CHART
If any following codes is recorded, the HV ECU enters the fail safe mode.
