Hybrid Battery Service Switch: Testing and Inspection

INSPECTION







CHECK CONTINUITY

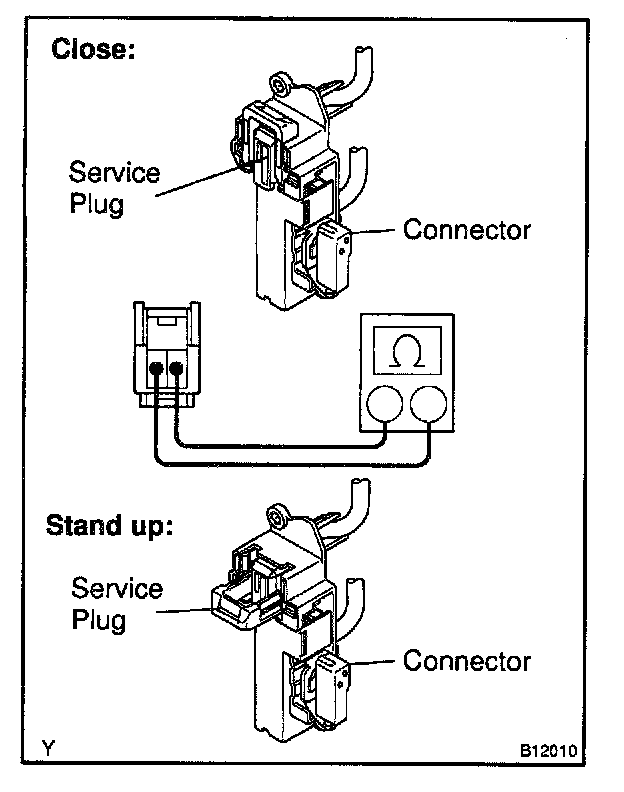

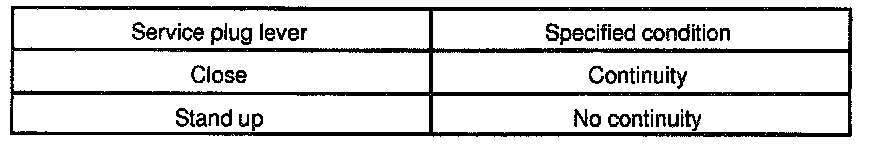

Using an ohmmeter, check continuity between the terminals.
