Radiator Fan and Condenser Fan Circuit

CIRCUIT DESCRIPTION

The electric fan speed is controlled as described below, in accordance with the following signals:
- ON/OFF signal of A/C switch
- ON/OFF signal detected by the pressure switch (that cut out at medium pressure)
- ON/OFF signal detected by water temperature switch

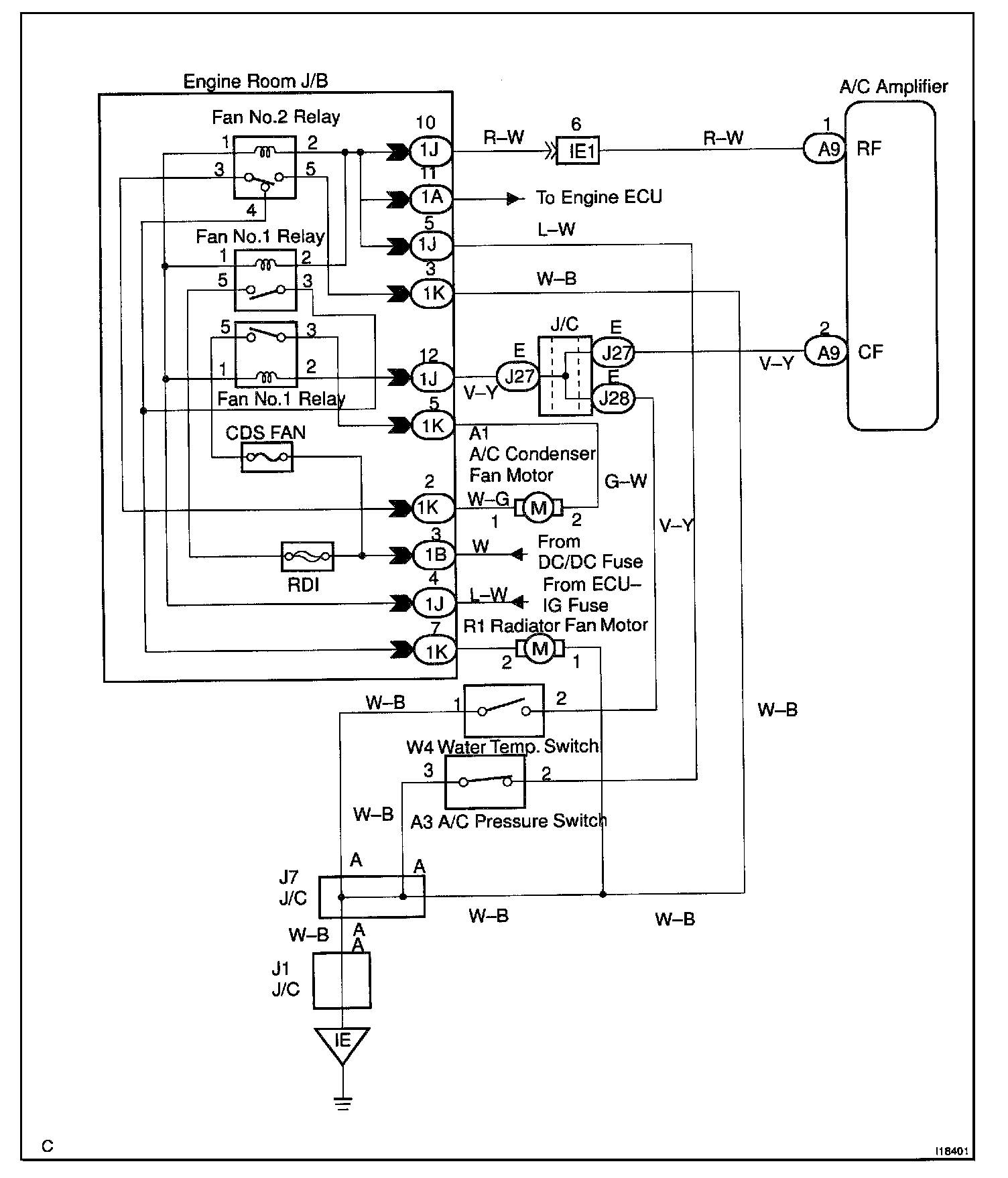

Wiring Diagram:

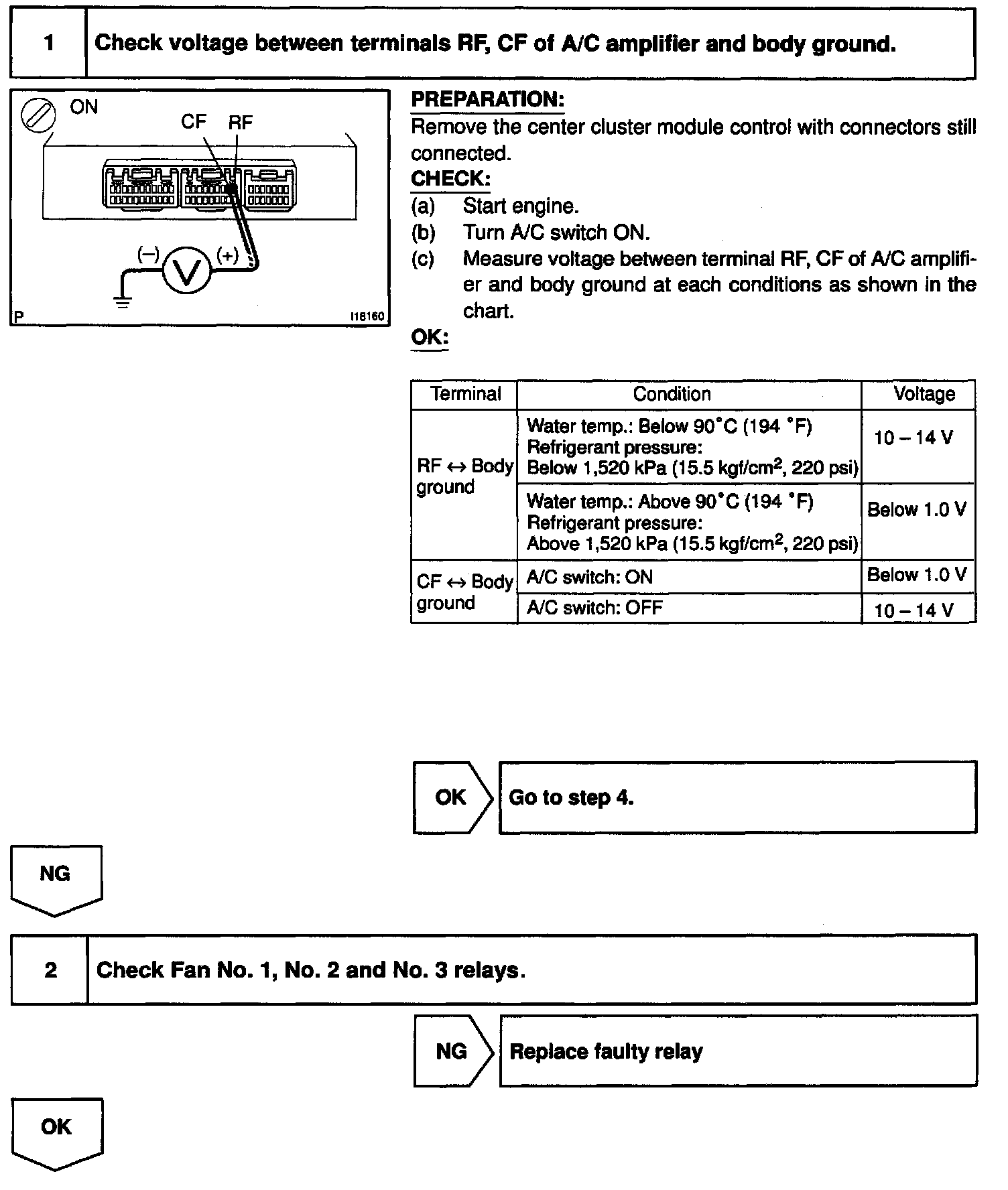

Steps 1 - 2:

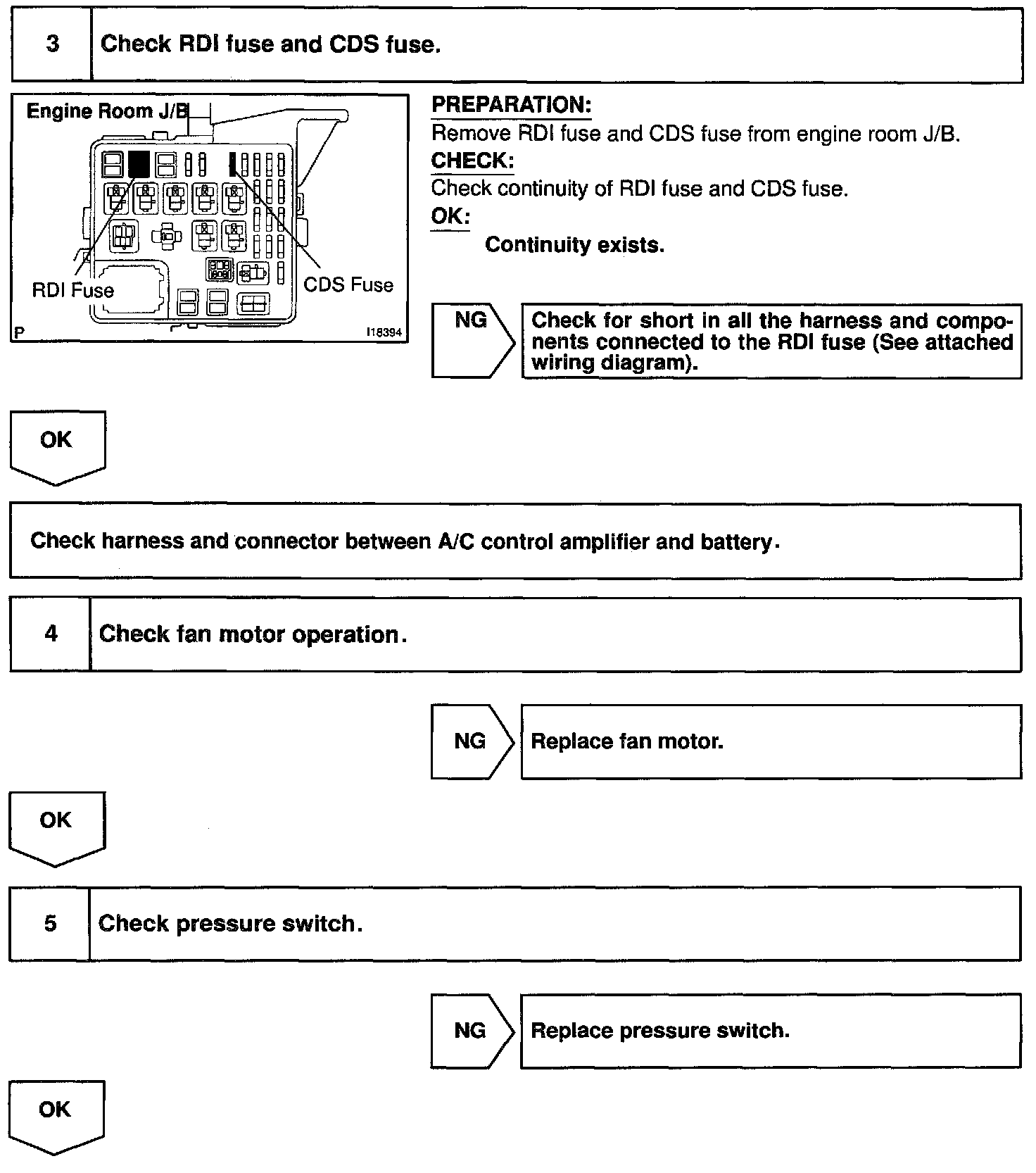

Steps 3 - 5:

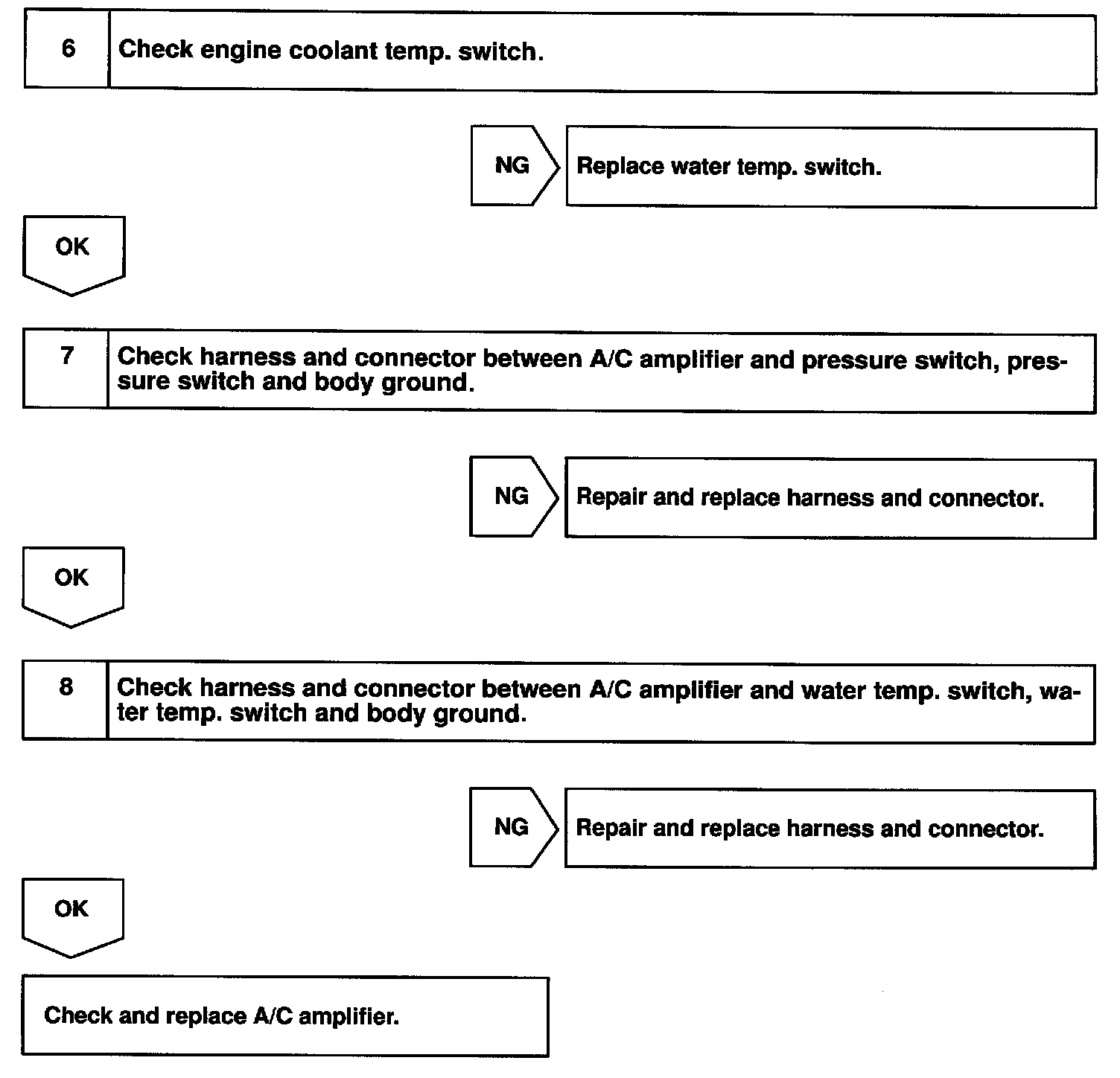

Steps 6 - 8:

INSPECTION PROCEDURE
