PTC Heater Circuit (Quick Heater)

CIRCUIT DESCRIPTION

A/C amplifier switches the HTR3 relay ON by signal from the A/C amplifier. It supplies power to PTC heater (Quick heater).

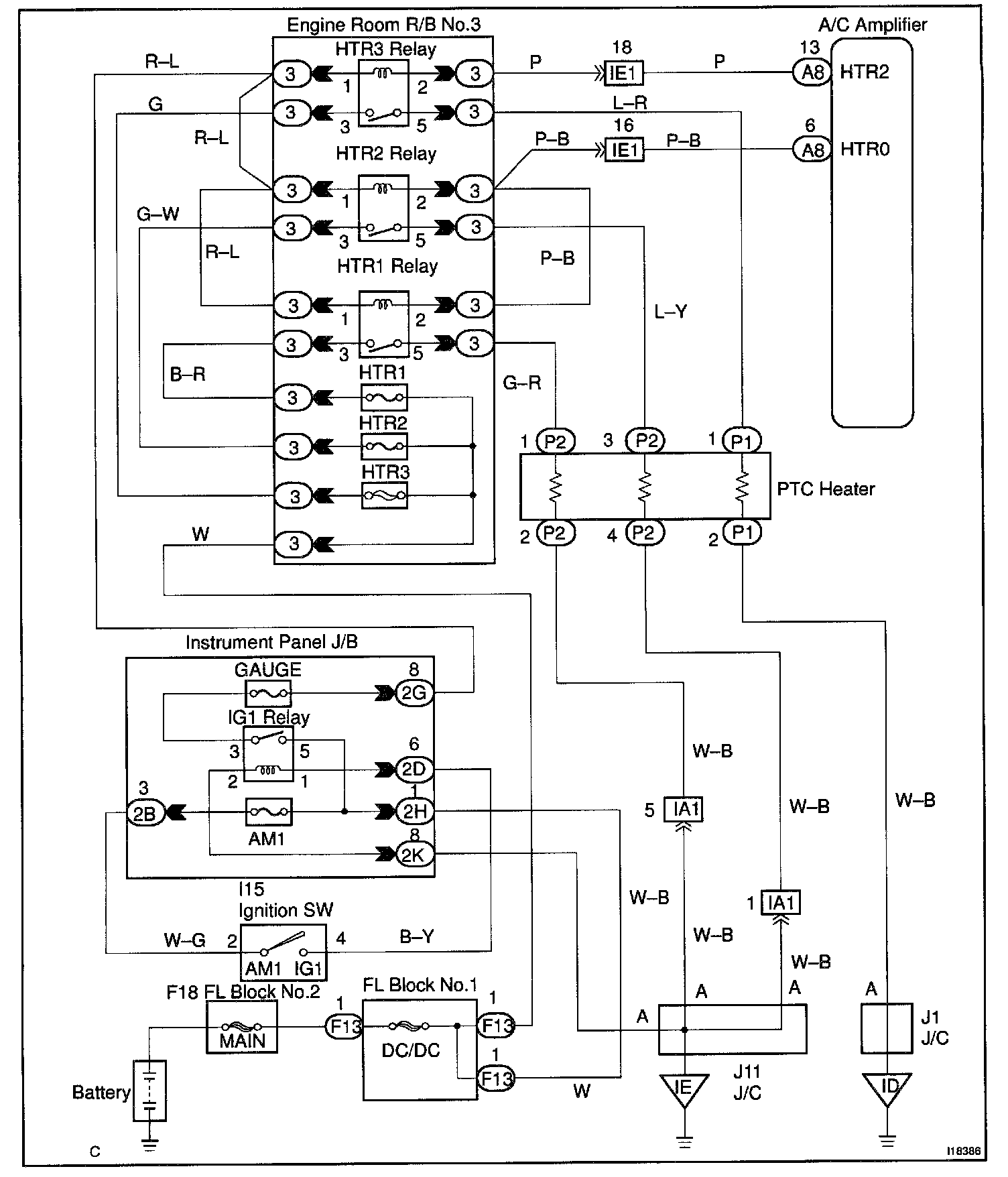

Wiring Diagram:

Steps 1 - 2:

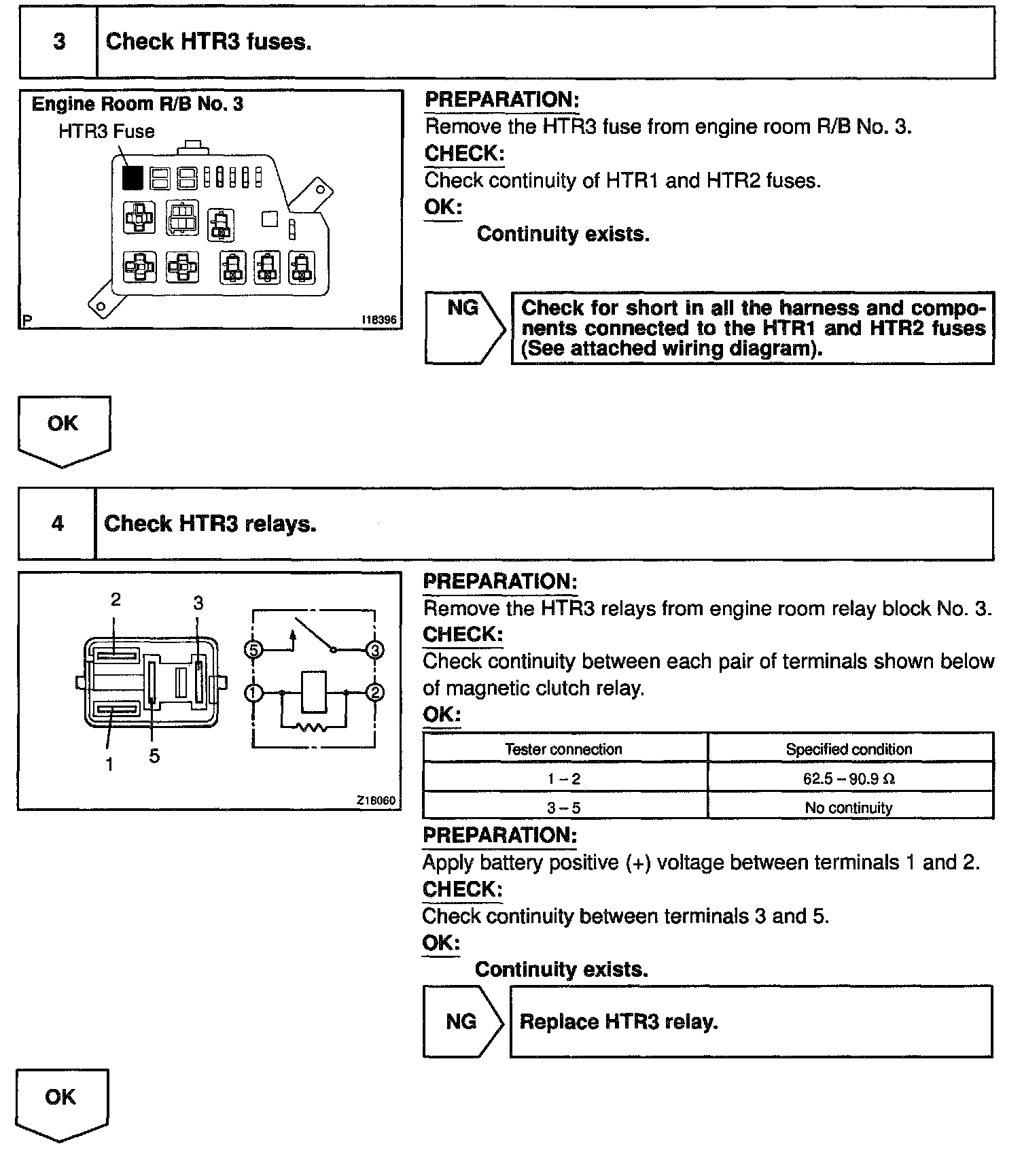

Steps 3 - 4:

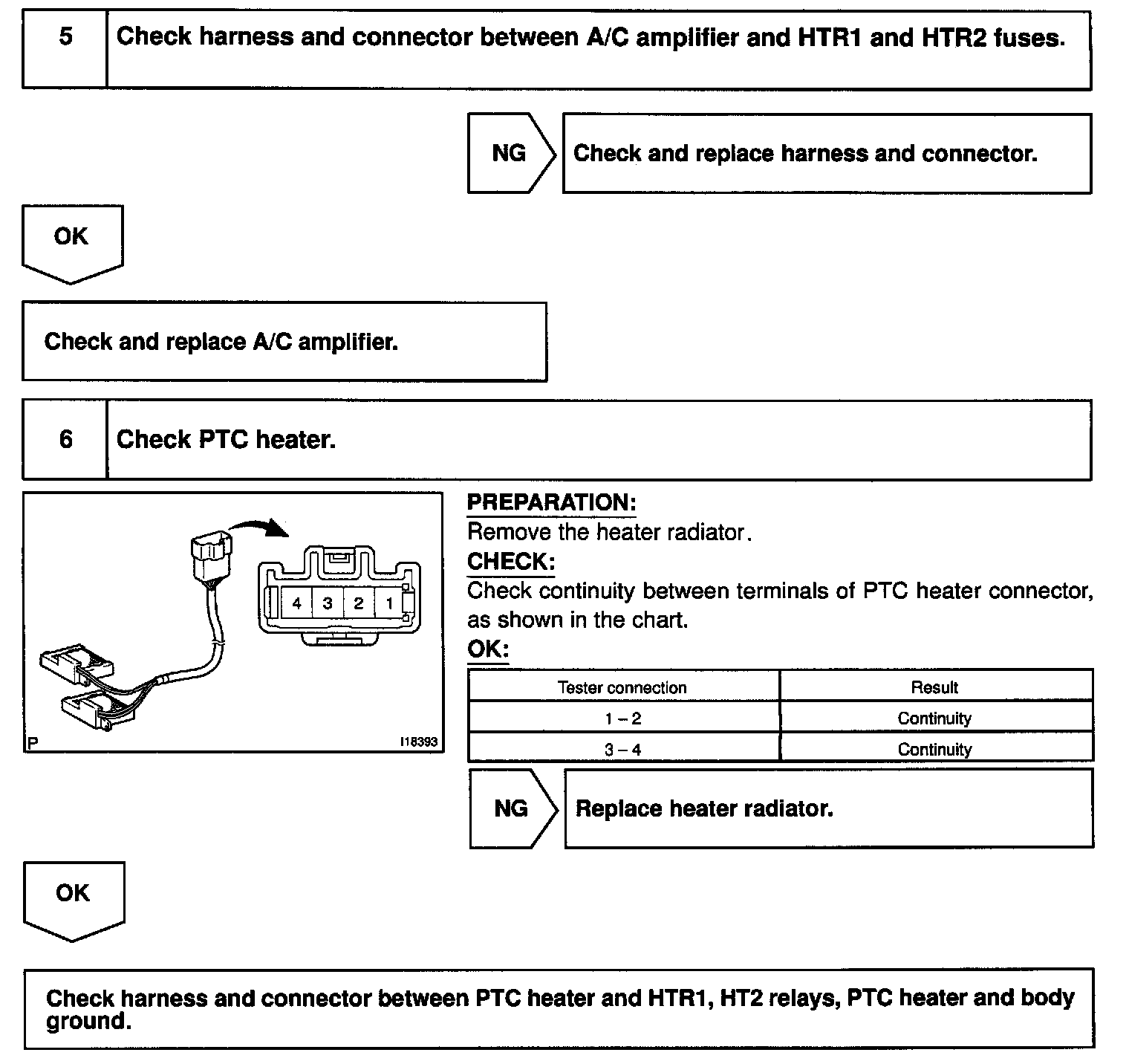

Steps 5 - 6:

INSPECTION PROCEDURE
