IG Power Source Circuit
CIRCUIT DESCRIPTIONThis is the power source for the A/C amplifier (contains the ECU) and servomotors etc.

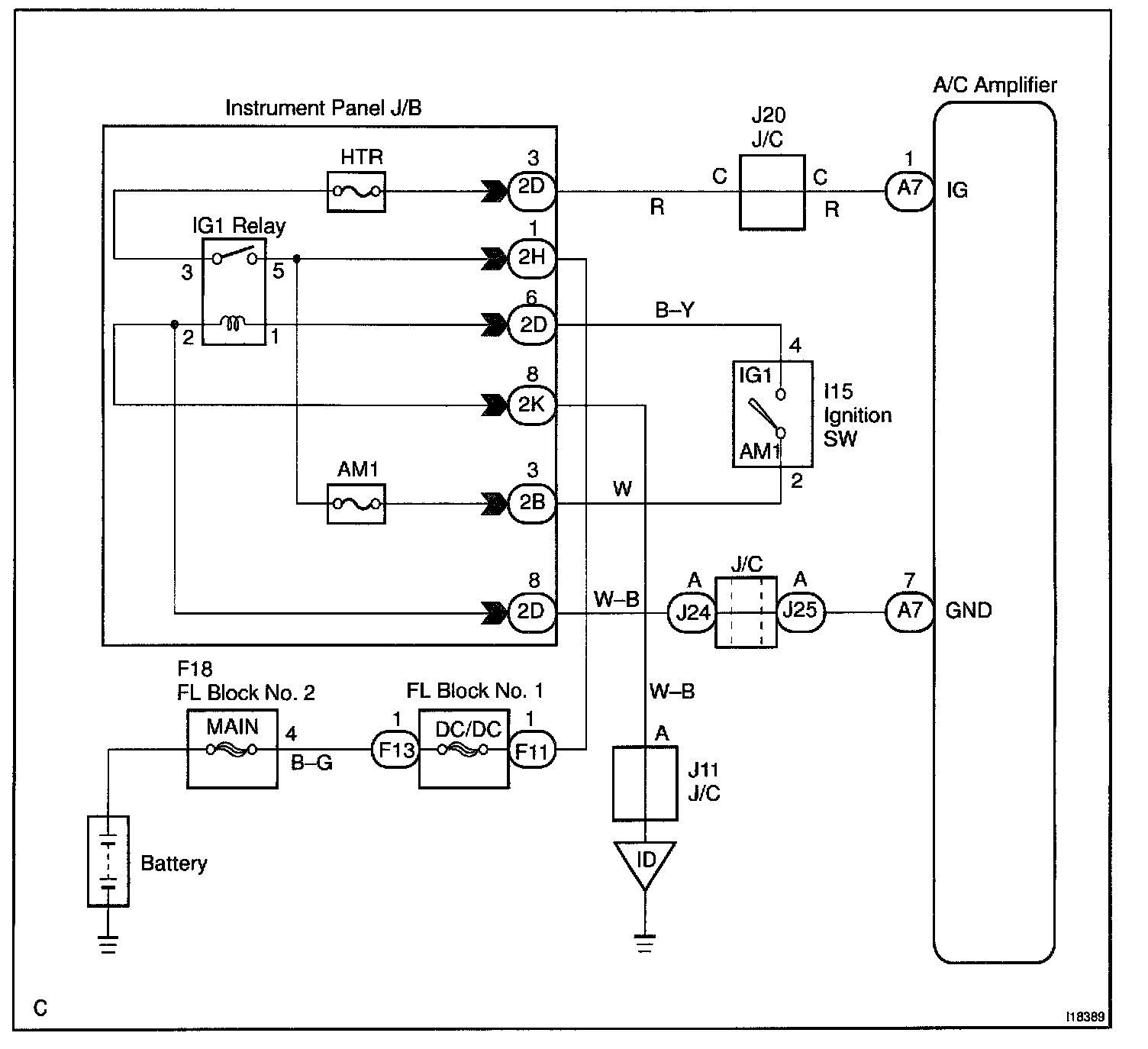

Wiring Diagram:
Steps 1 - 2:
Step 3:

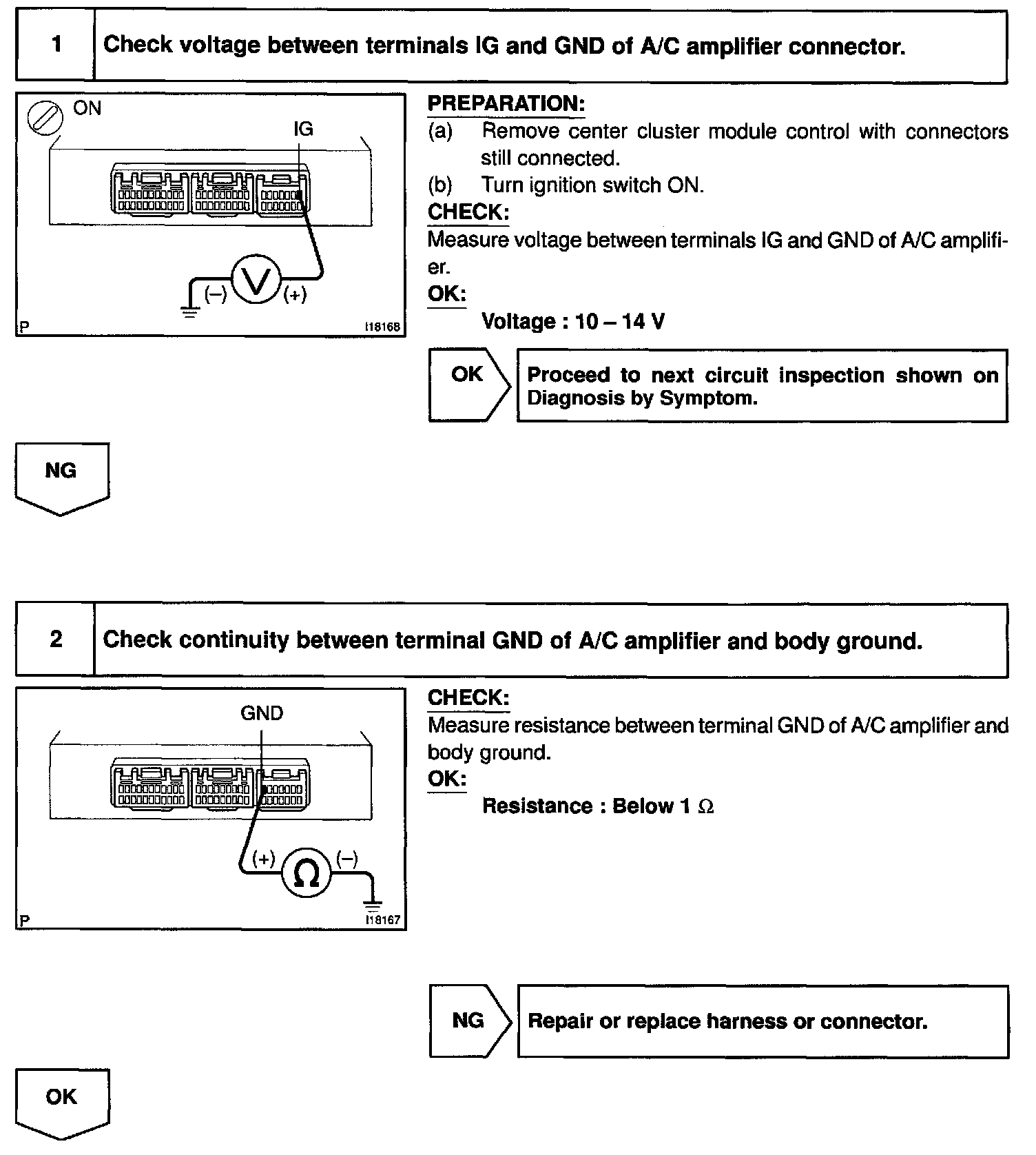

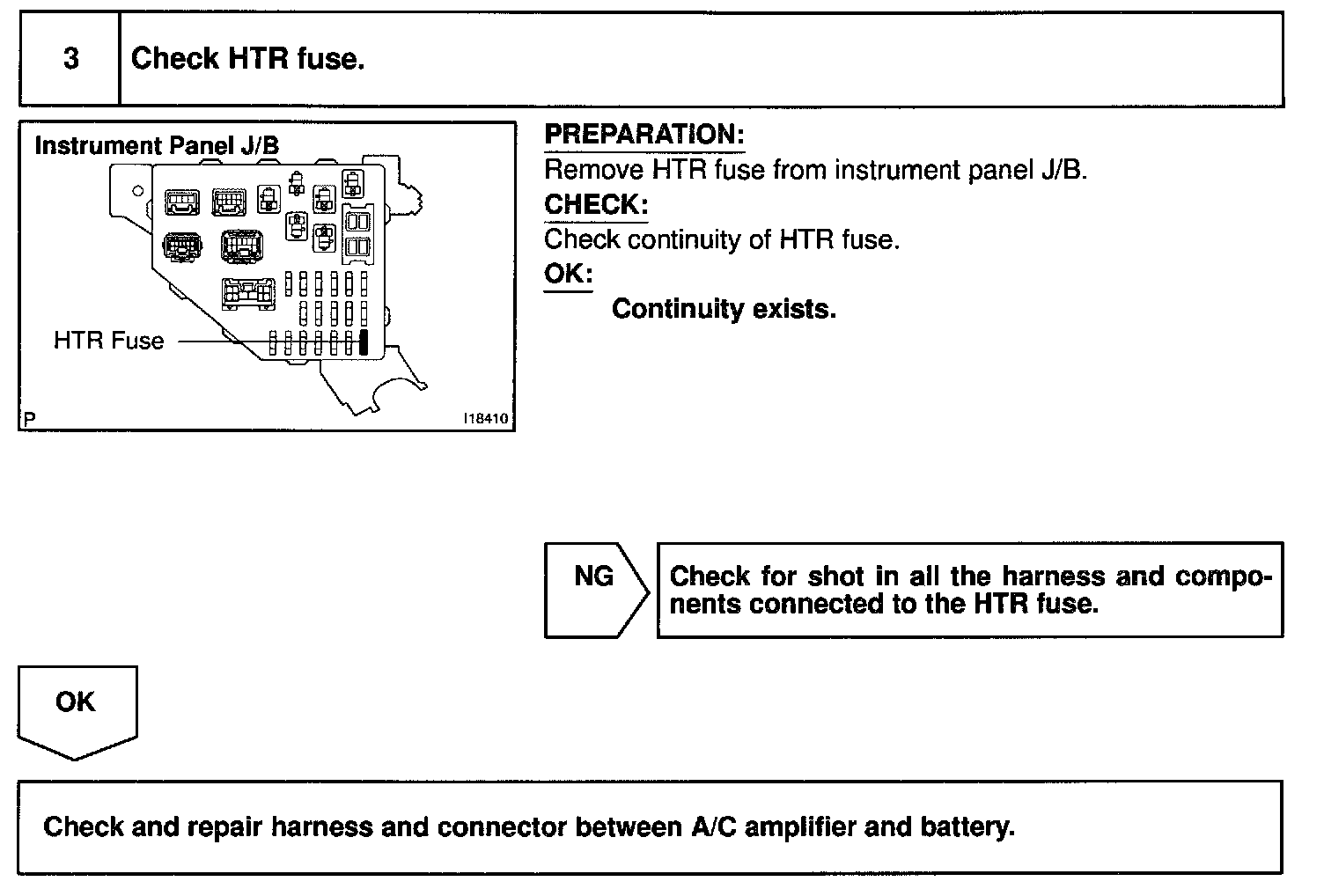

INSPECTION PROCEDURE
This is the power source for the A/C amplifier (contains the ECU) and servomotors etc.
INSPECTION PROCEDURE
