Compressor Circuit

CIRCUIT DESCRIPTION

A/C amplifier switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.

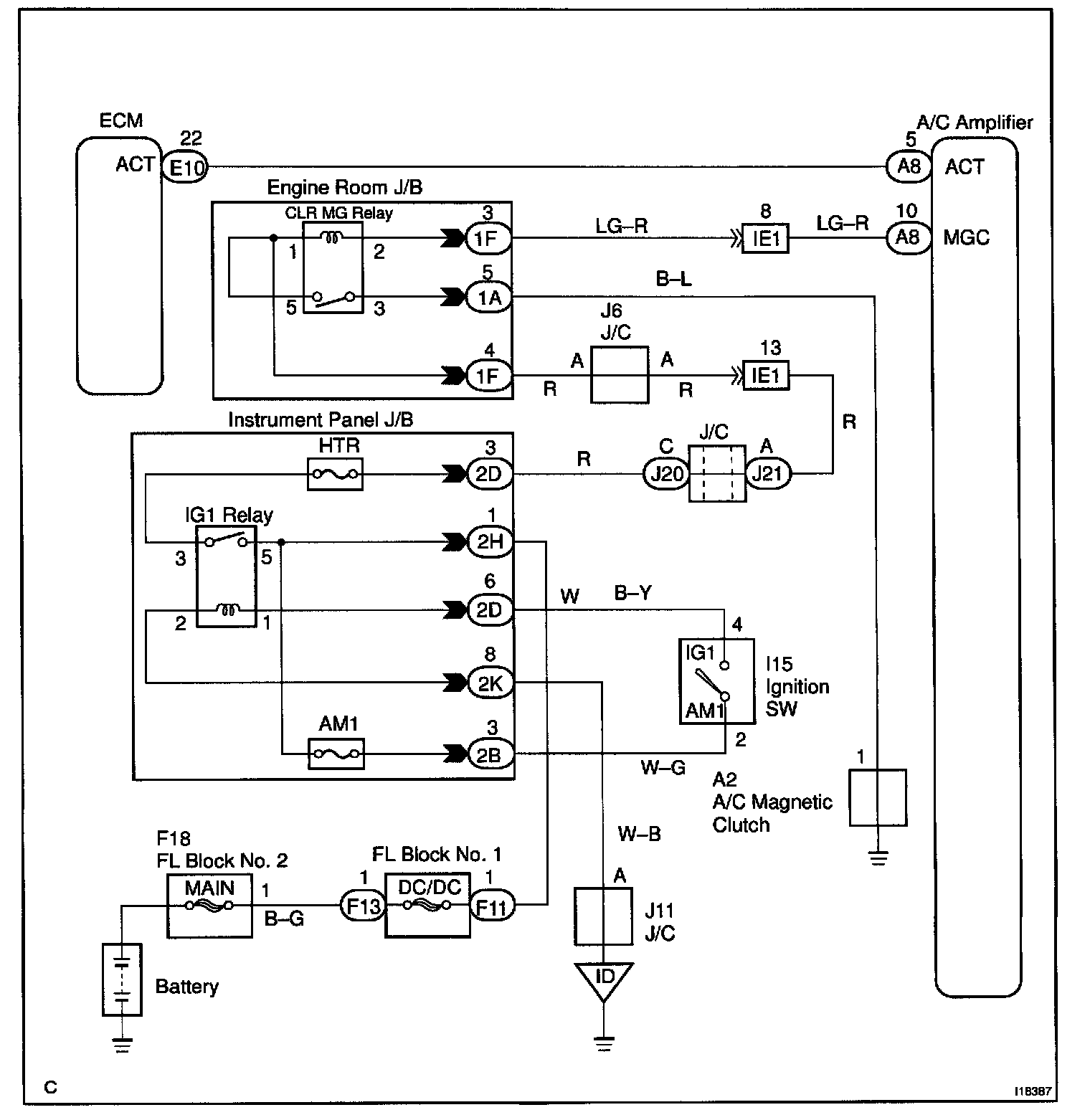

Wiring Diagram:

Steps 1 - 2:

Steps 3 - 5:

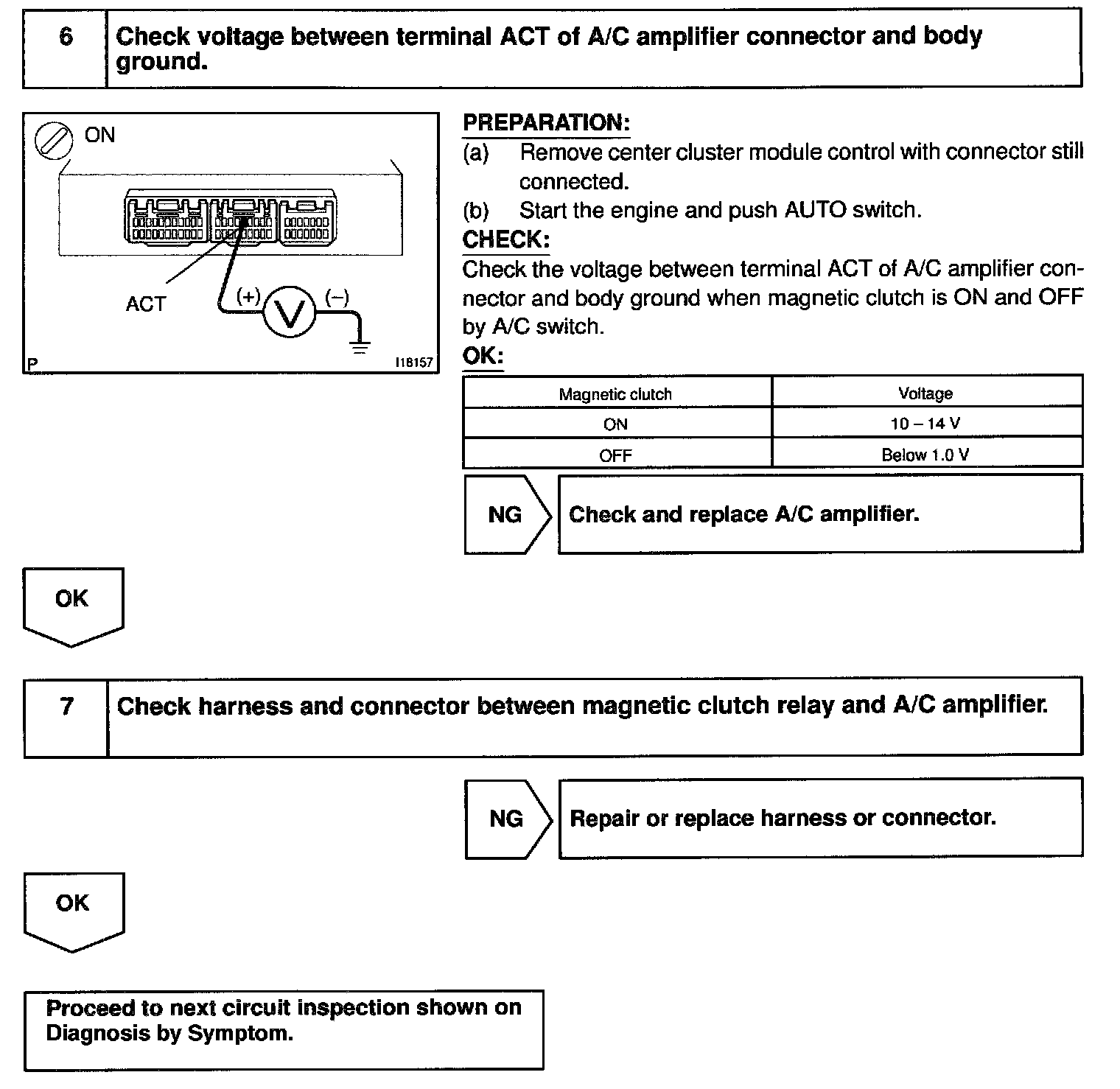

Steps 6 - 7:

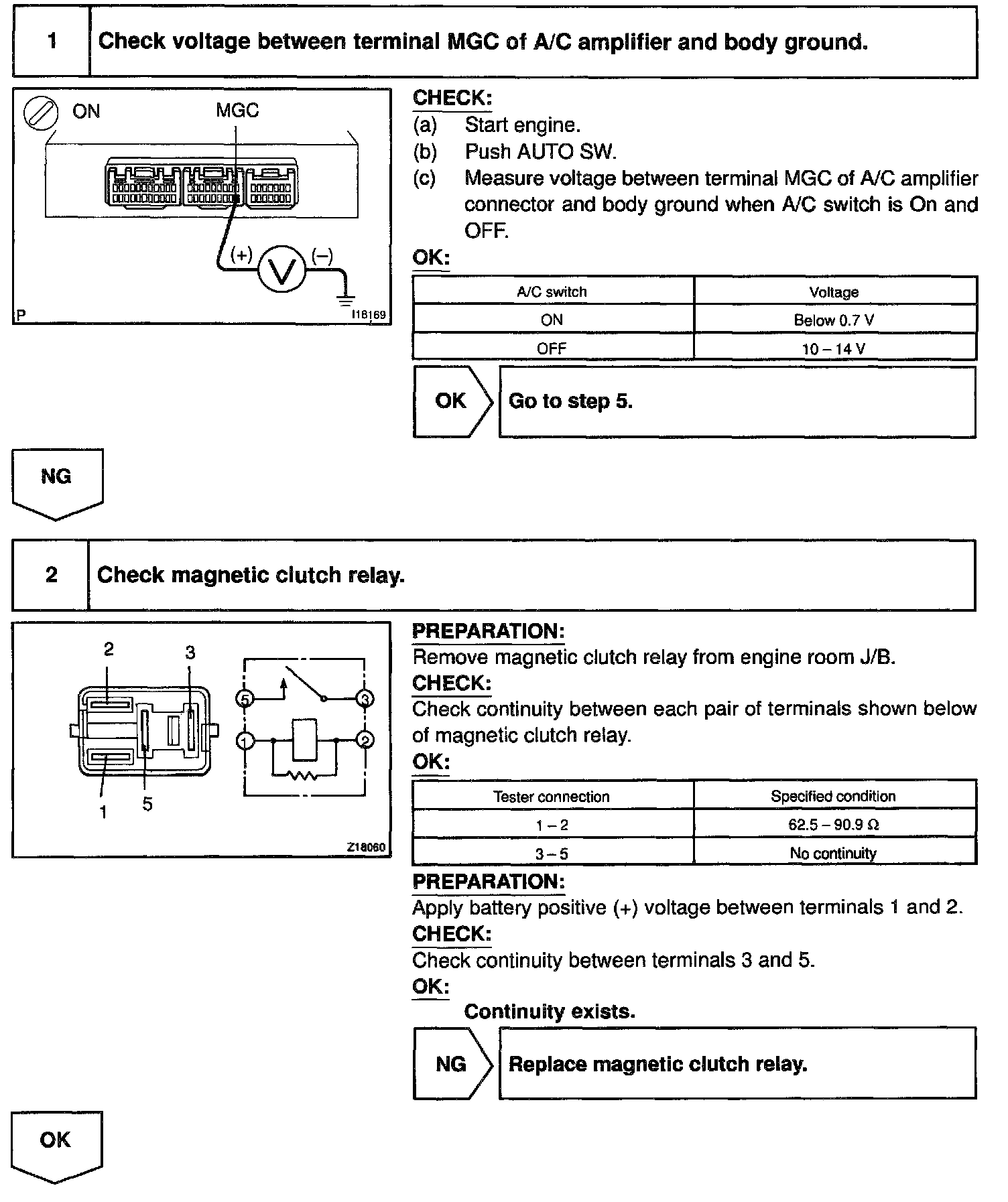

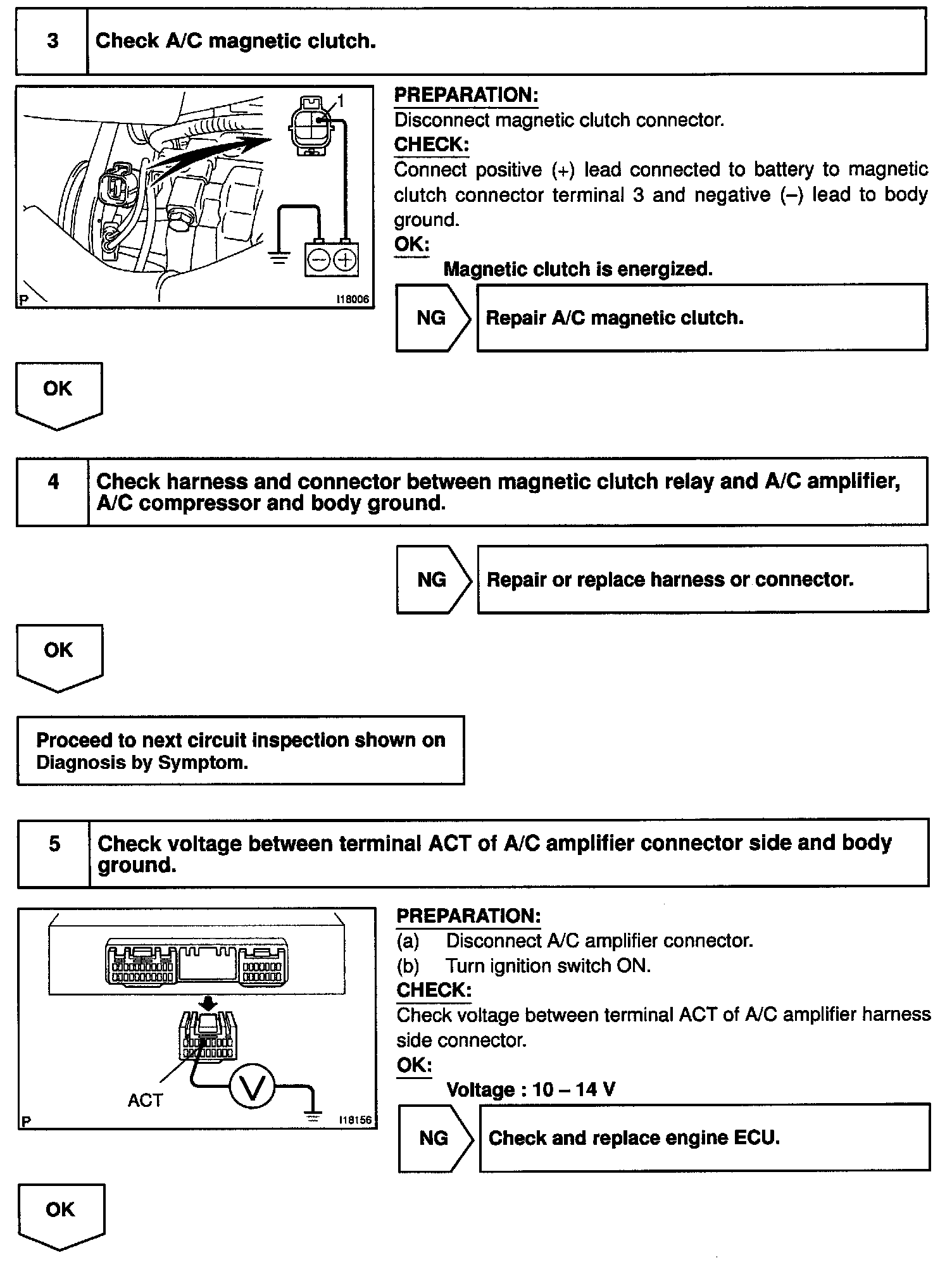

INSPECTION PROCEDURE
