Disassembly and Reassembly
DISASSEMBLY1. REMOVE FOOT AIR DUCTS
2. REMOVE THERMISTOR
3. REMOVE EXPANSION VALVE
4. REMOVE PTC HEATER
5. REMOVE DRAIN HOSE

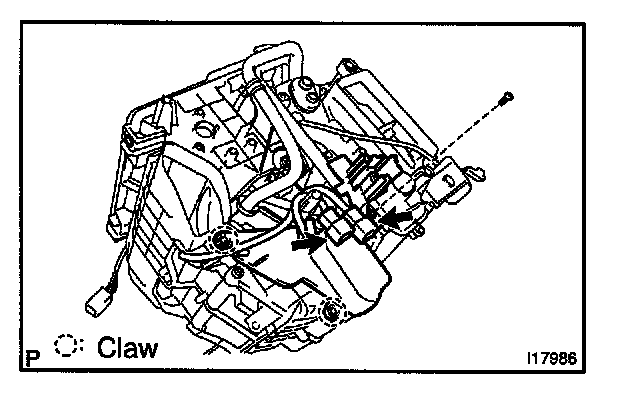

6. REMOVE ASPIRATOR AND HOSE
7. REMOVE HEATER PIPE COVER
a. Disconnect the connector.
b. Remove the screw.
c. Release the 2 claws and remove the heater pipe cover.

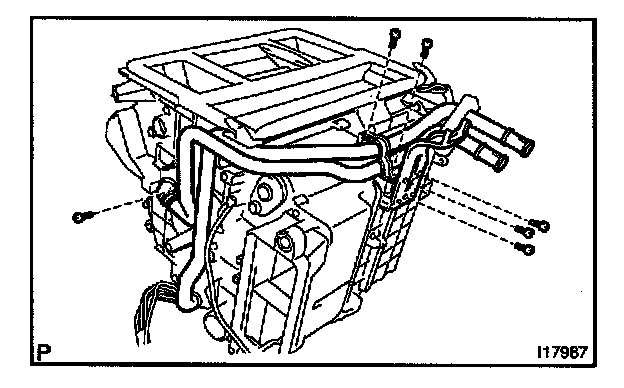

8. REMOVE HEATER RADIATOR
a. Remove the 3 screws and clamp.
b. Remove the 3 screws and 2 clamps.
c. Pull out the heater radiator.
9. REMOVE EVAPORATOR
a. Remove the 7 screws and separate the evaporator cover.
b. Pull out the evaporator.

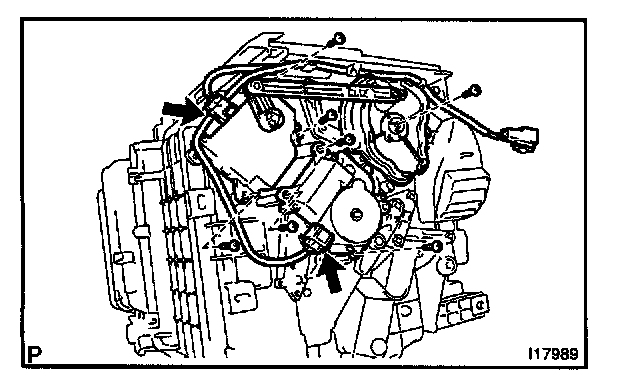

10. REMOVE SERVOMOTOR
a. Disconnect the connectors.
b. Remove the 3 screws and air outlet servomotor.
c. Remove the 4 screws and air mix servomotor.
REASSEMBLY
Reassembly is in the reverse order of disassembly.
