Condenser HVAC: Locations

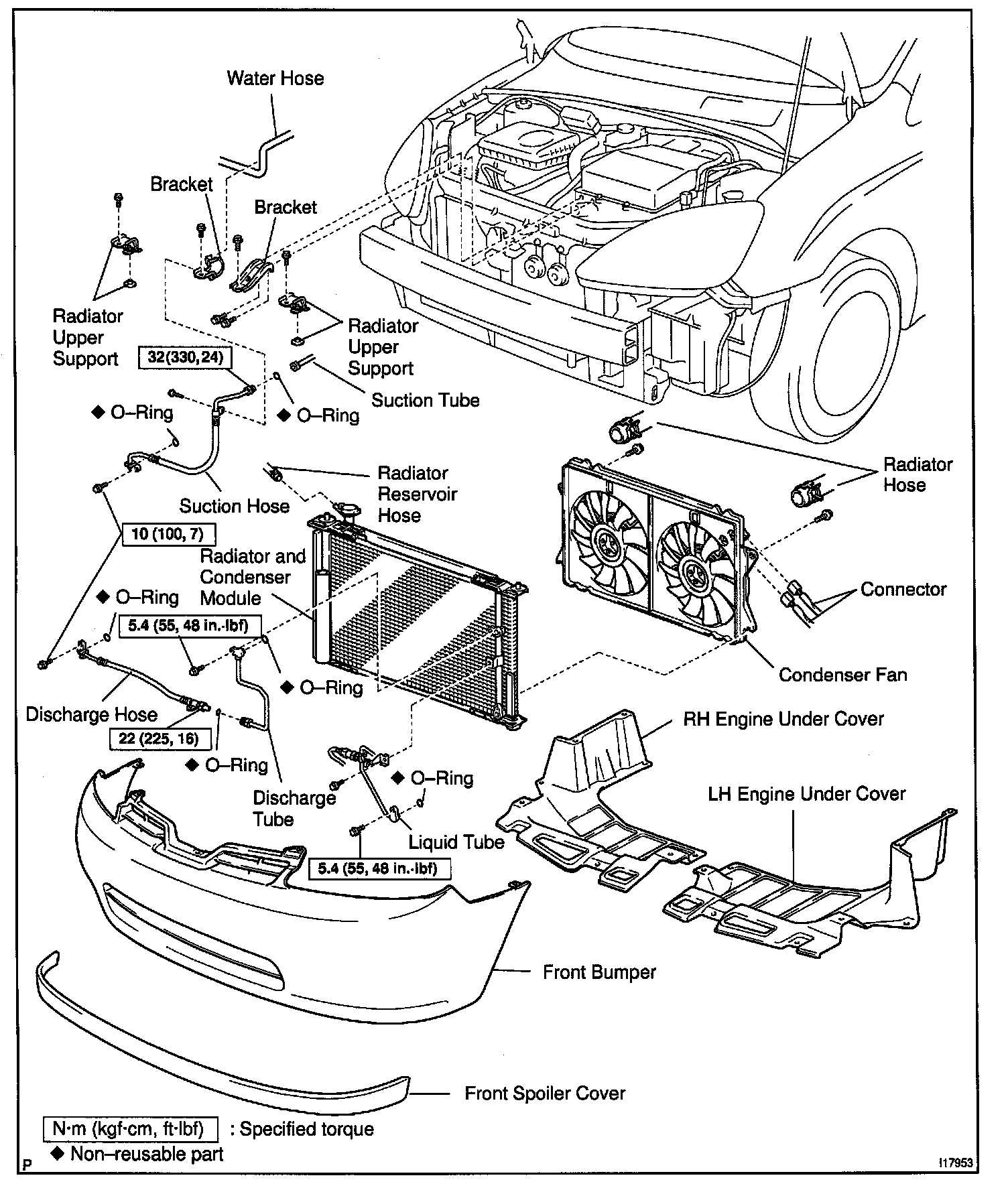

Radiator And Condenser Module (Part 1):

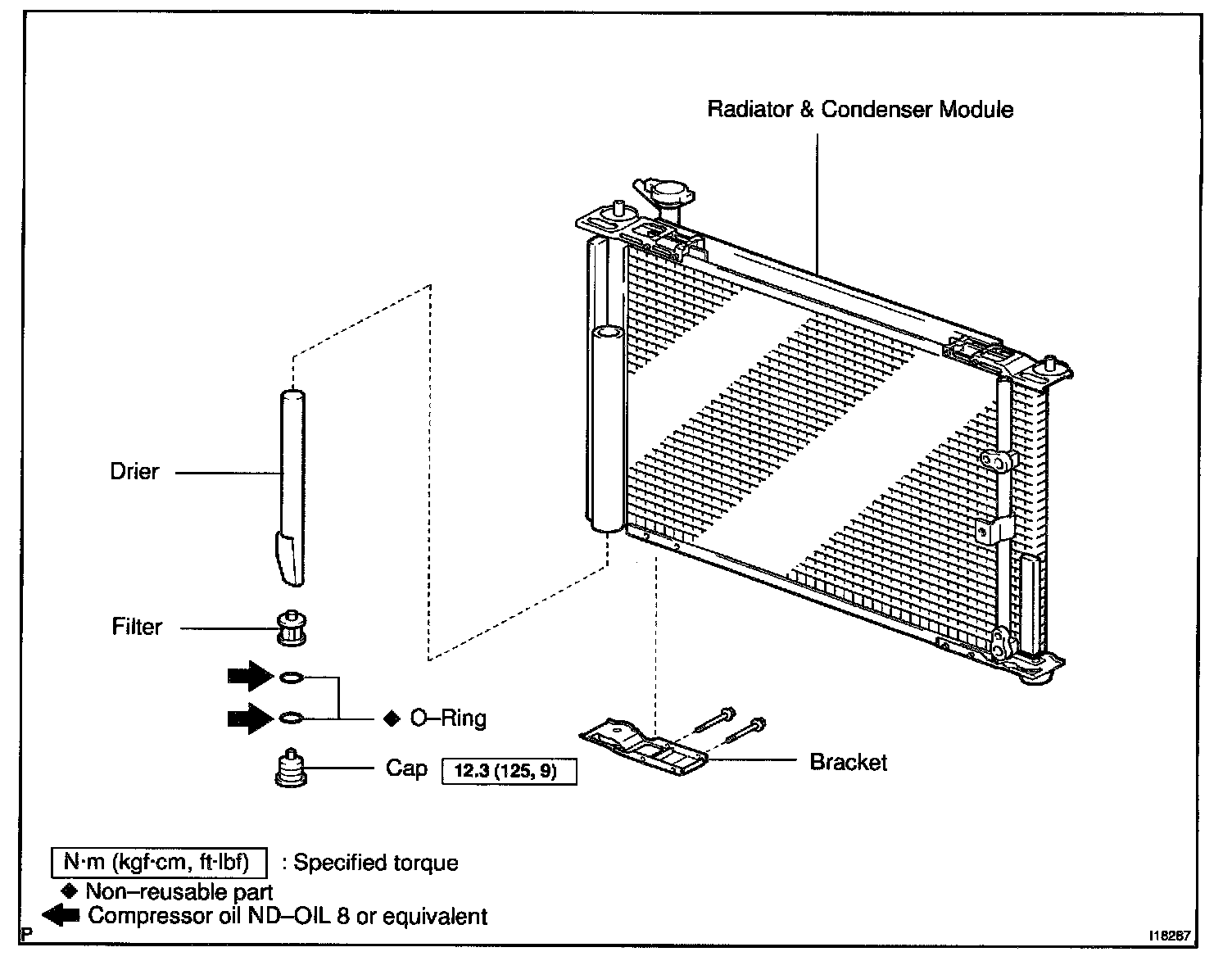

Radiator And Condenser Module (Part 2):
