Parking Brake Pedal
Parking Brake Pedal

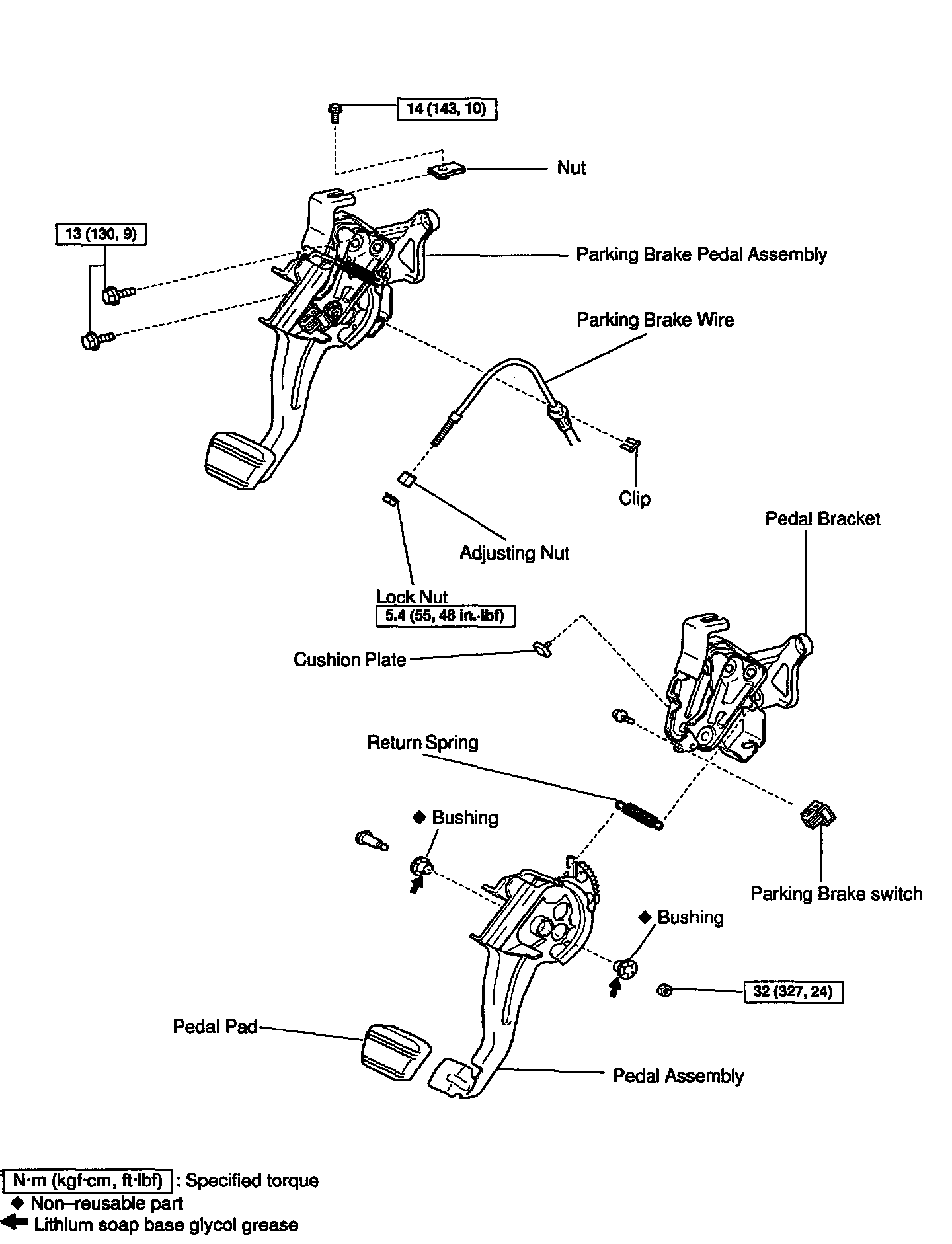

PARKING BRAKE PEDAL
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Part 1 of 2
Part 2 of 2
