Cruise Main Indicator Light Circuit

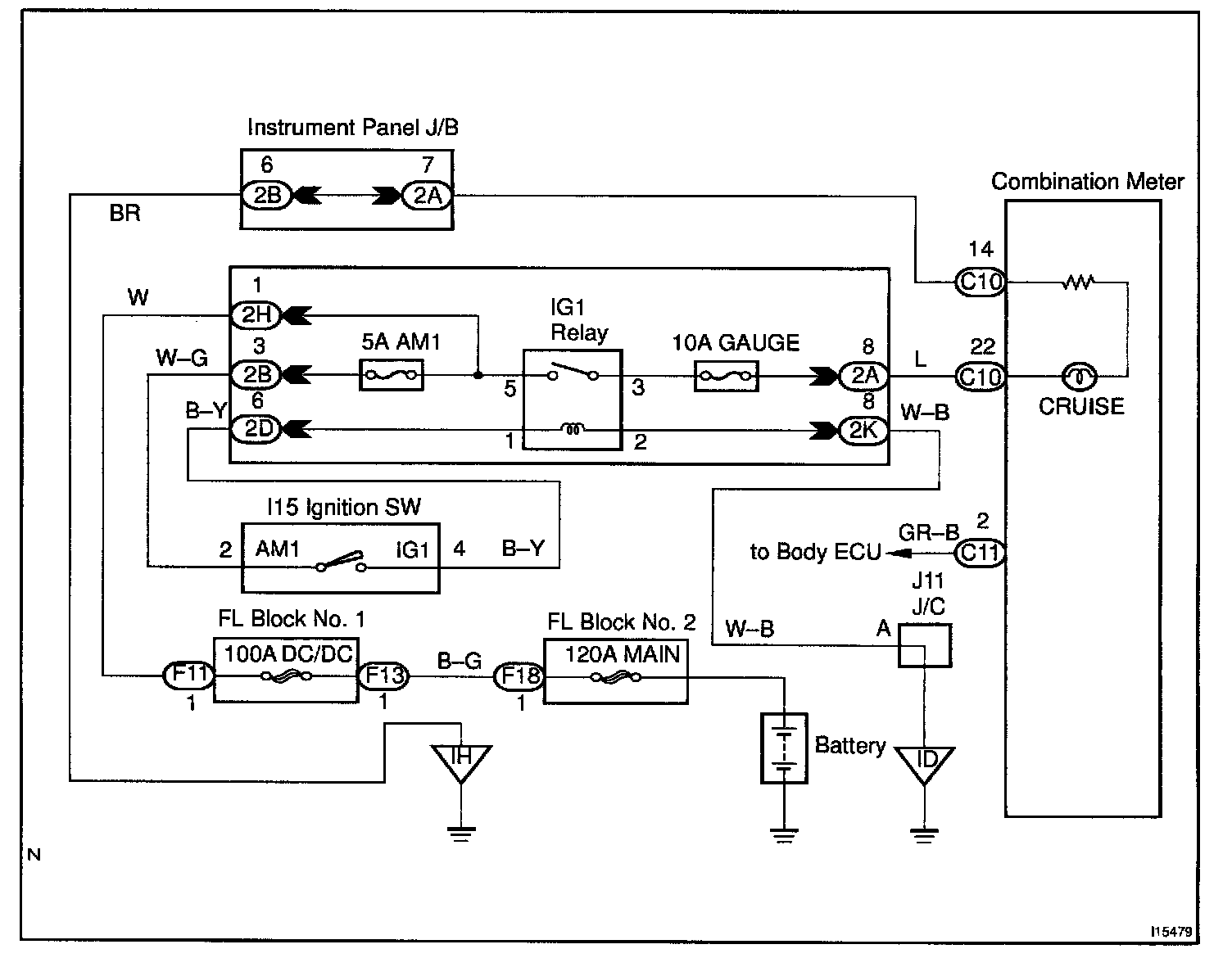

Wiring Diagram:
CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.

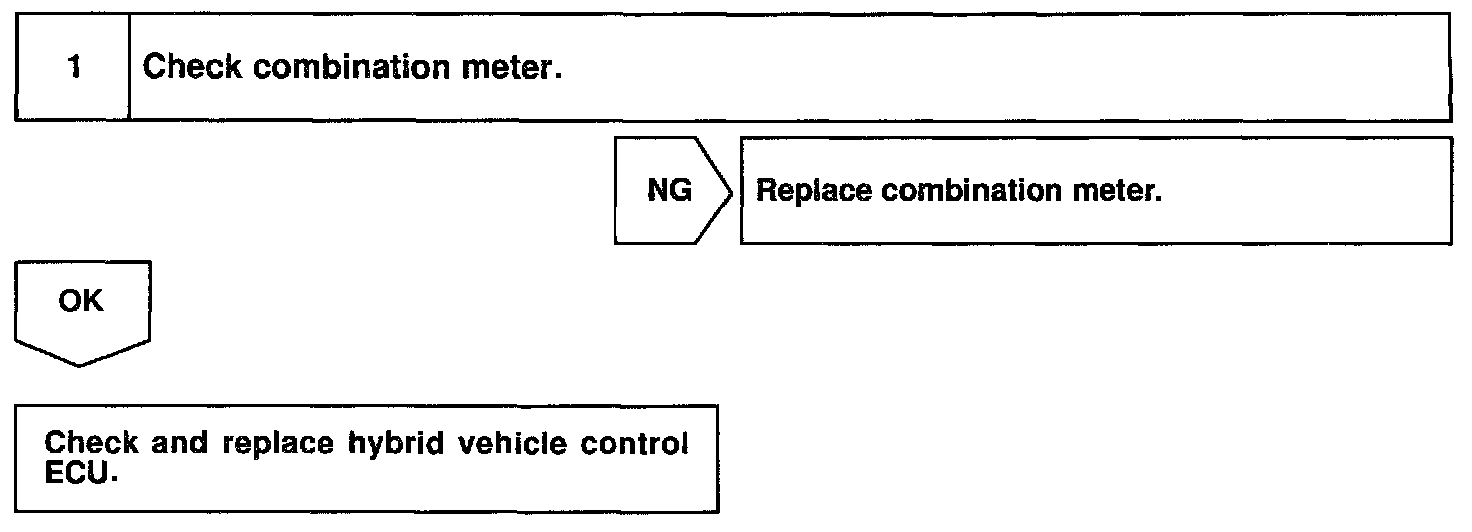

Step 1:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.
INSPECTION PROCEDURE
