Control Switch Circuit (Cruise Control Switch)
CIRCUIT DESCRIPTIONThis circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signal (each voltage) to the ECU.

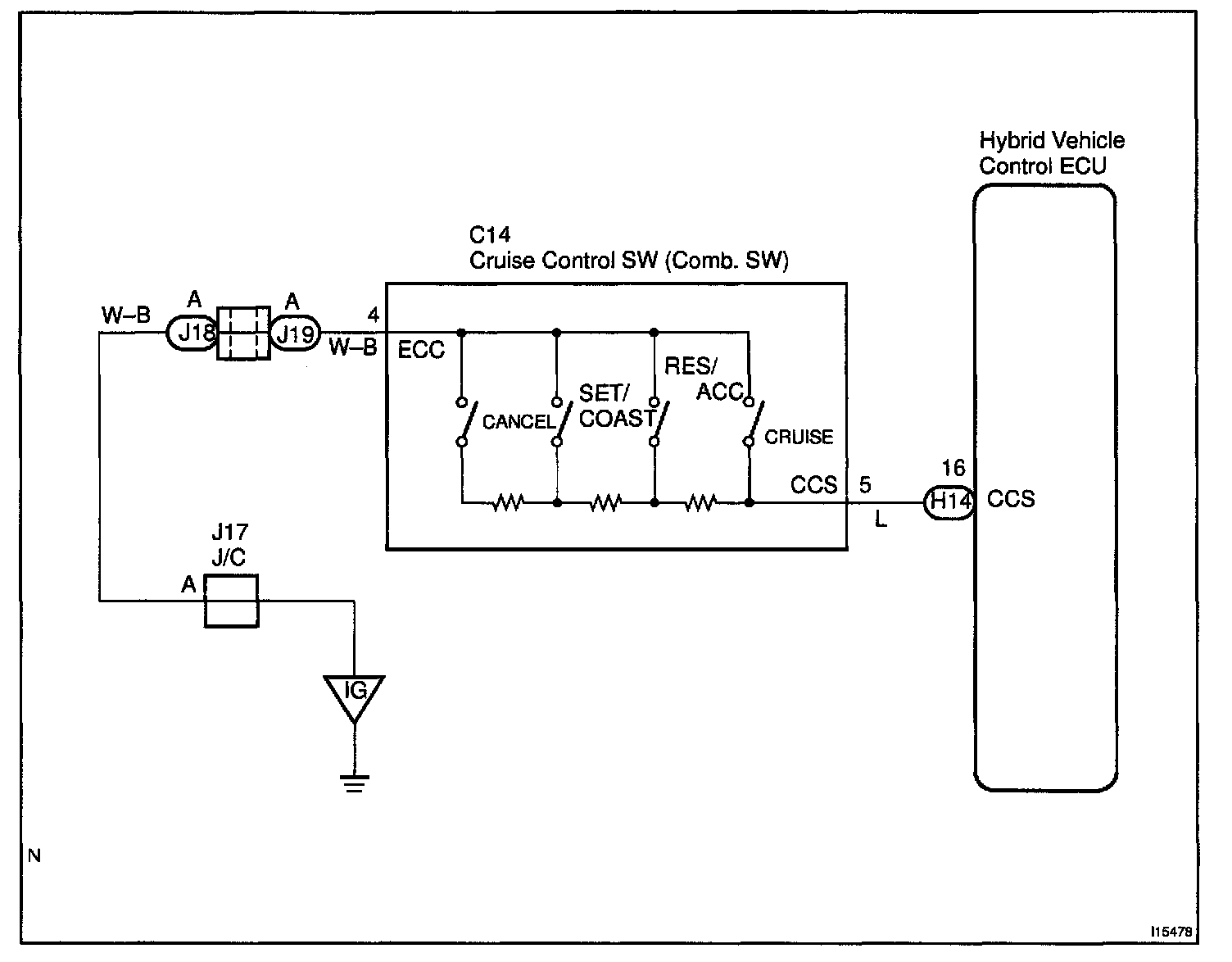

Wiring Diagram:

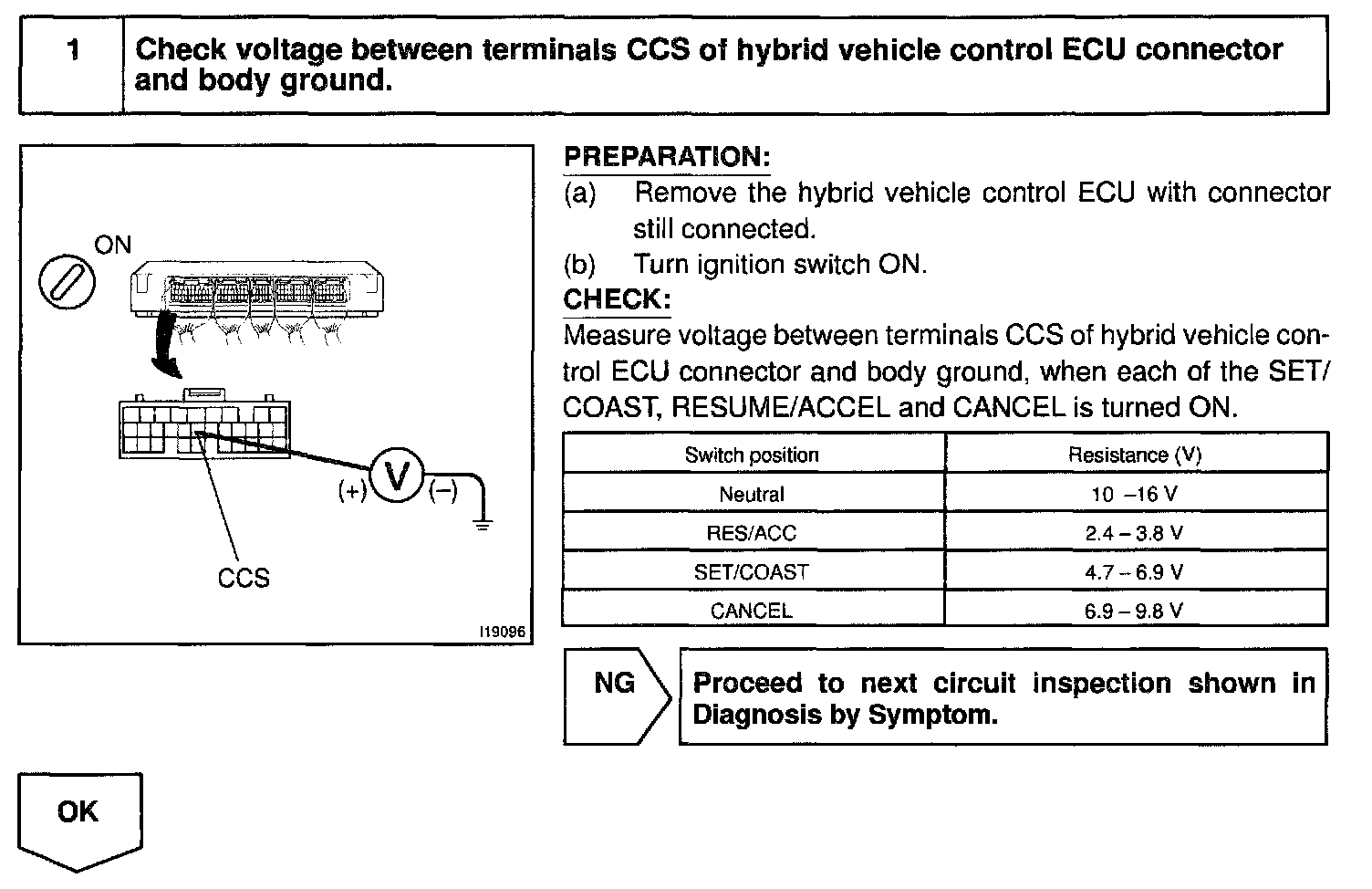

Step 1:

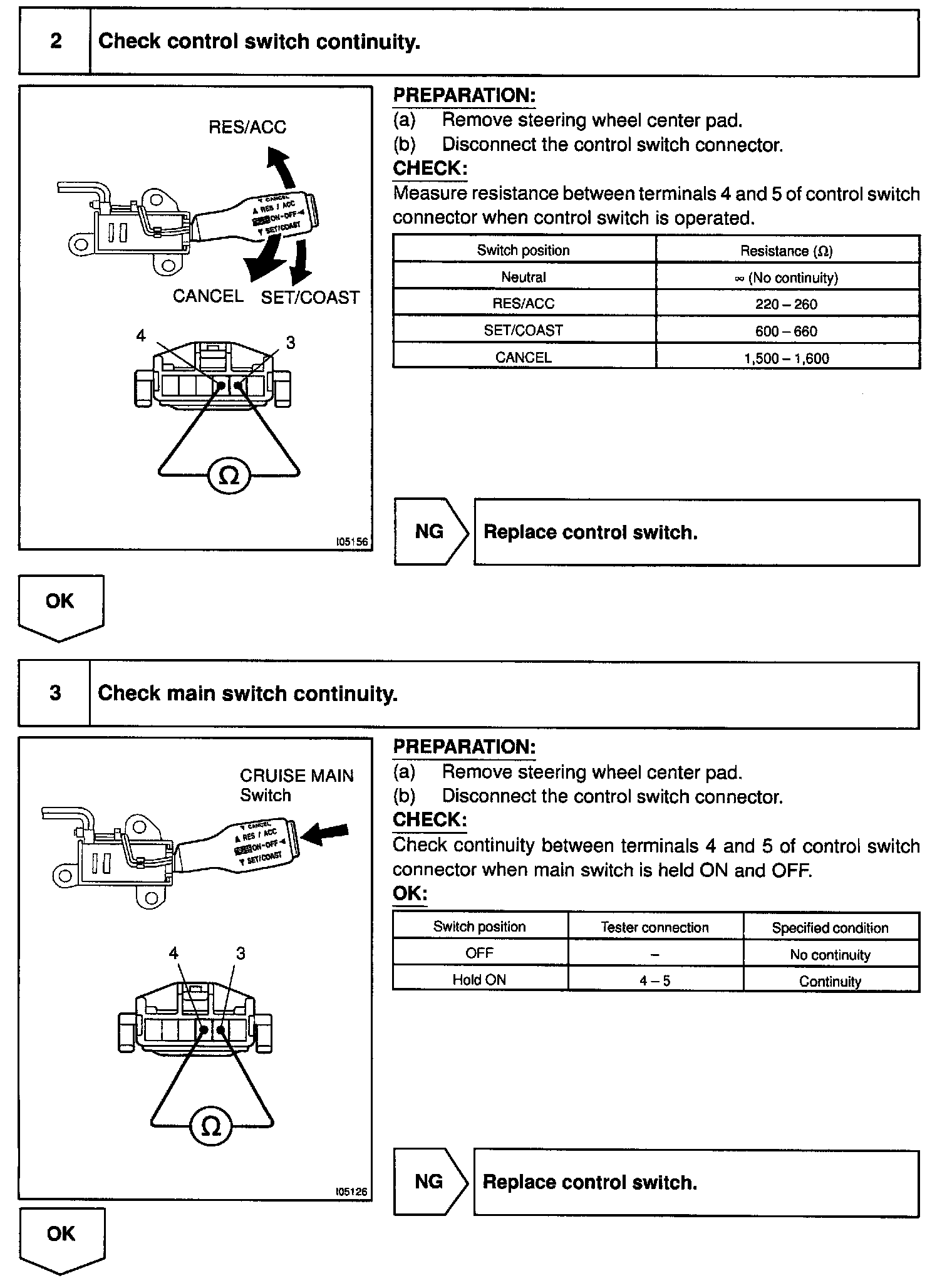

Steps 2 - 3:
Step 4:
INSPECTION PROCEDURE
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signal (each voltage) to the ECU.
INSPECTION PROCEDURE
