Speed Sensor, Front

REMOVAL





1. DISCONNECT SPEED SENSOR CONNECTOR
(a) Remove the front wheel
Torque: 103 Nm(1,050 kgf-cm, 76 ft. lbs.)
(b) Remove the fender liner.

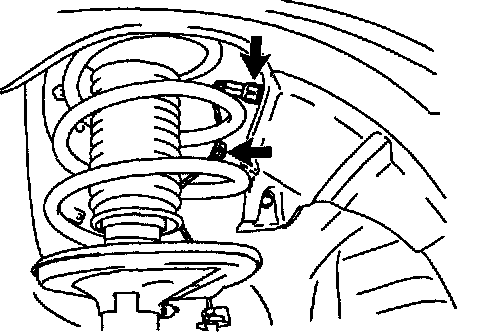

(c) Disconnect the speed sensor connector and resin clip.
2. REMOVE SPEED SENSOR

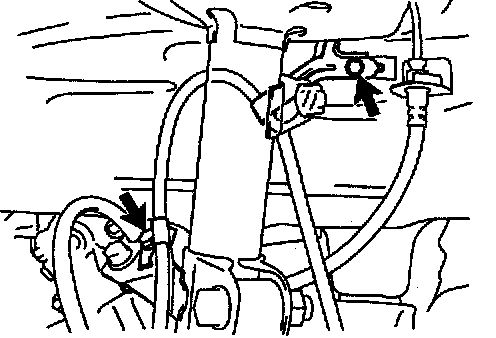

(a) Remove the 2 clamp bolts holding the sensor harness from the body and shock absorber.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)

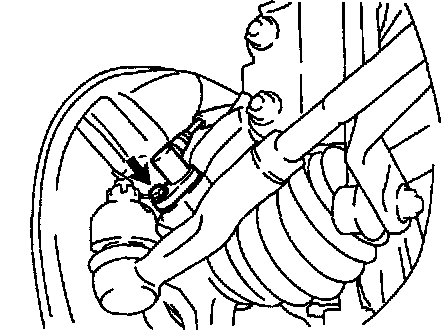

(b) Remove the installation bolt and front speed sensor from the steering knuckle.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

NOTICE: At the time of installation, please refer to the following item.
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be Installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check speed sensor signal.
