Related Tests, Information and Procedures

CIRCUIT DESCRIPTION

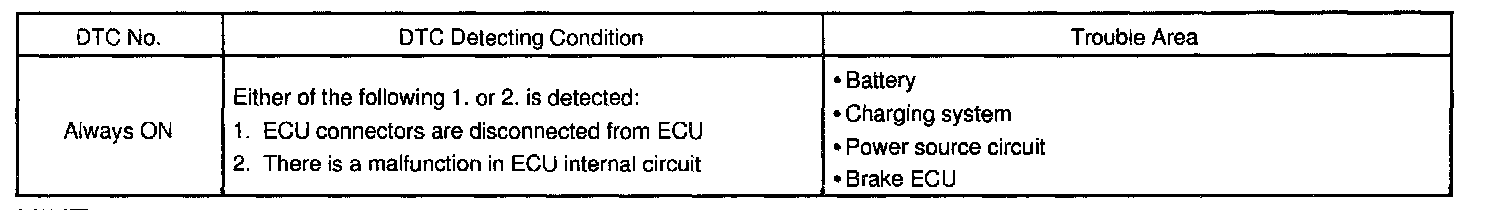

DTC Detecting Condition:

HINT: There is a case that TOYOTA hand-held tester cannot be used when ECU is abnormal.

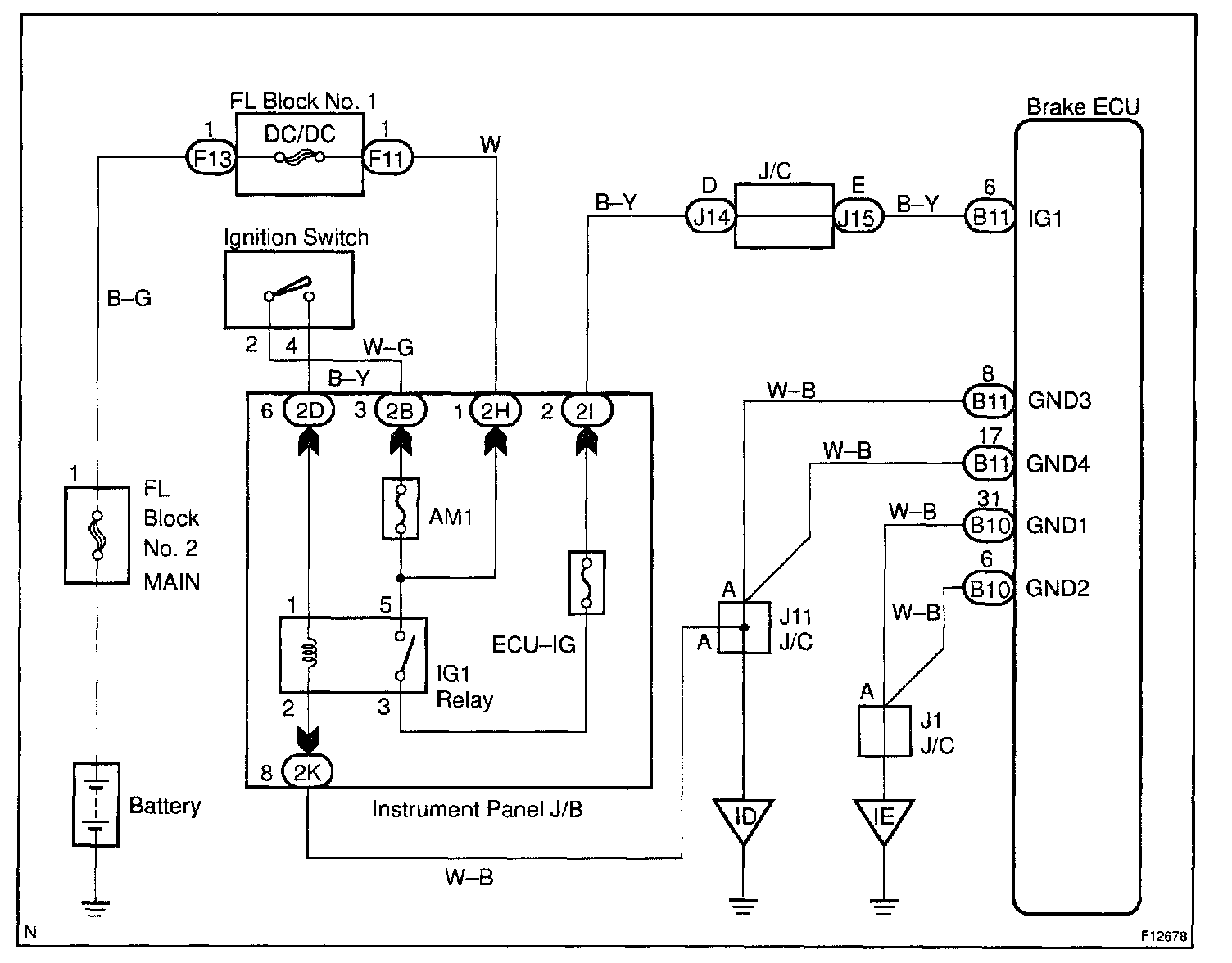

Wiring Diagram:

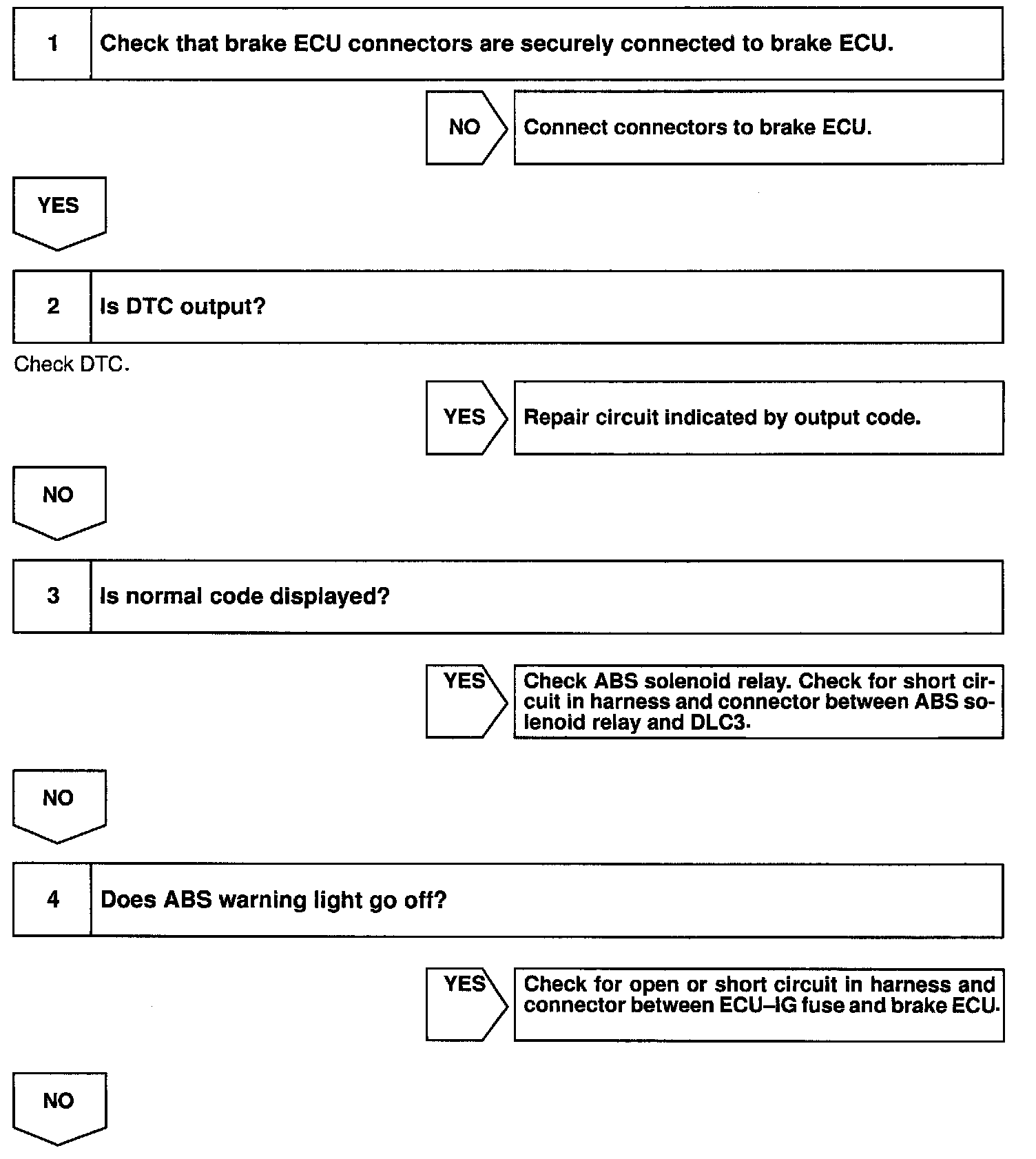

Steps 1 - 4:

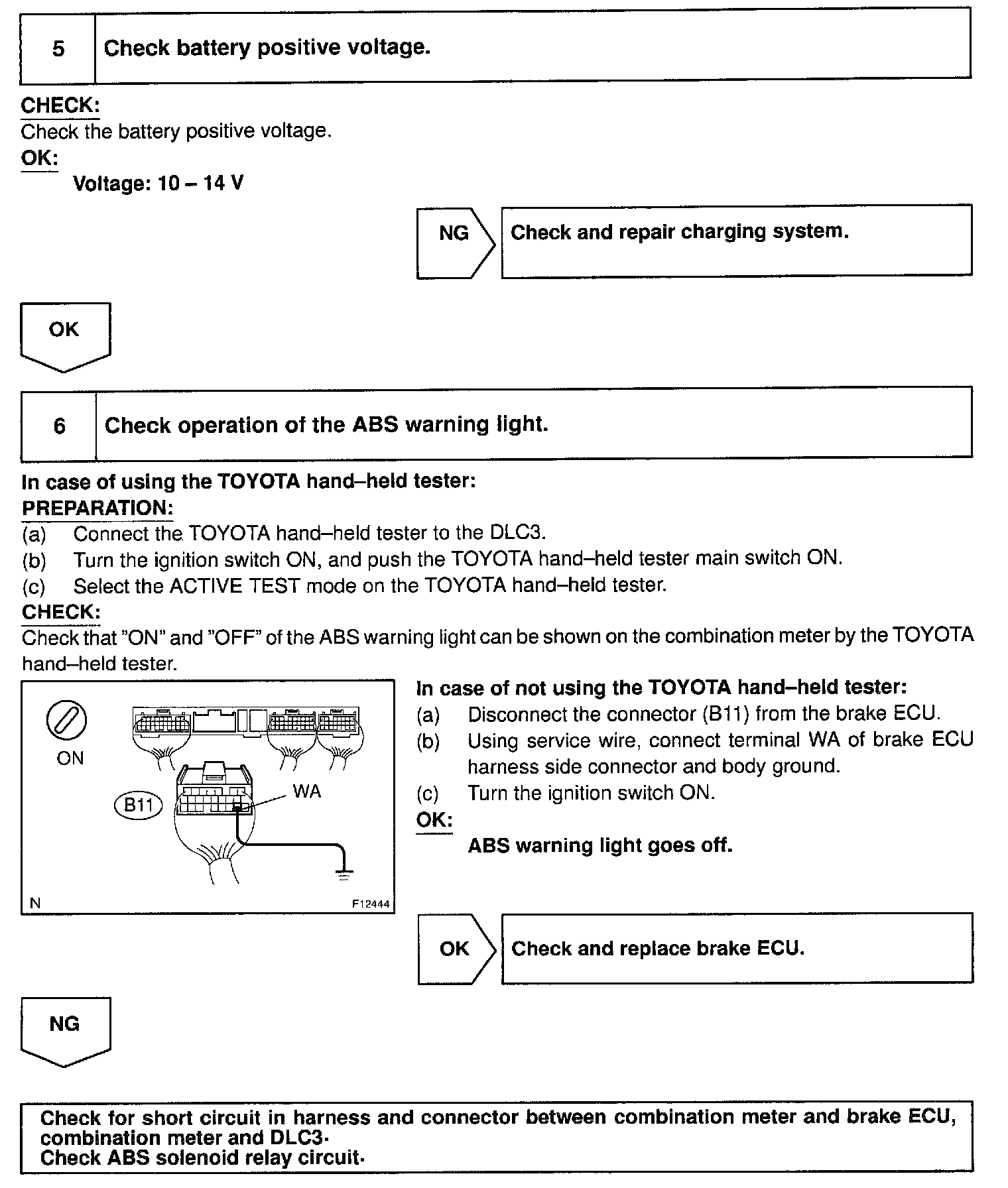

Steps 5 - 6:

INSPECTION PROCEDURE
