Brake Warning Buzzer Circuit

CIRCUIT DESCRIPTION

The brake warning buzzer sounds while the accumulator pressure is abnormally low.

Wiring Diagram:

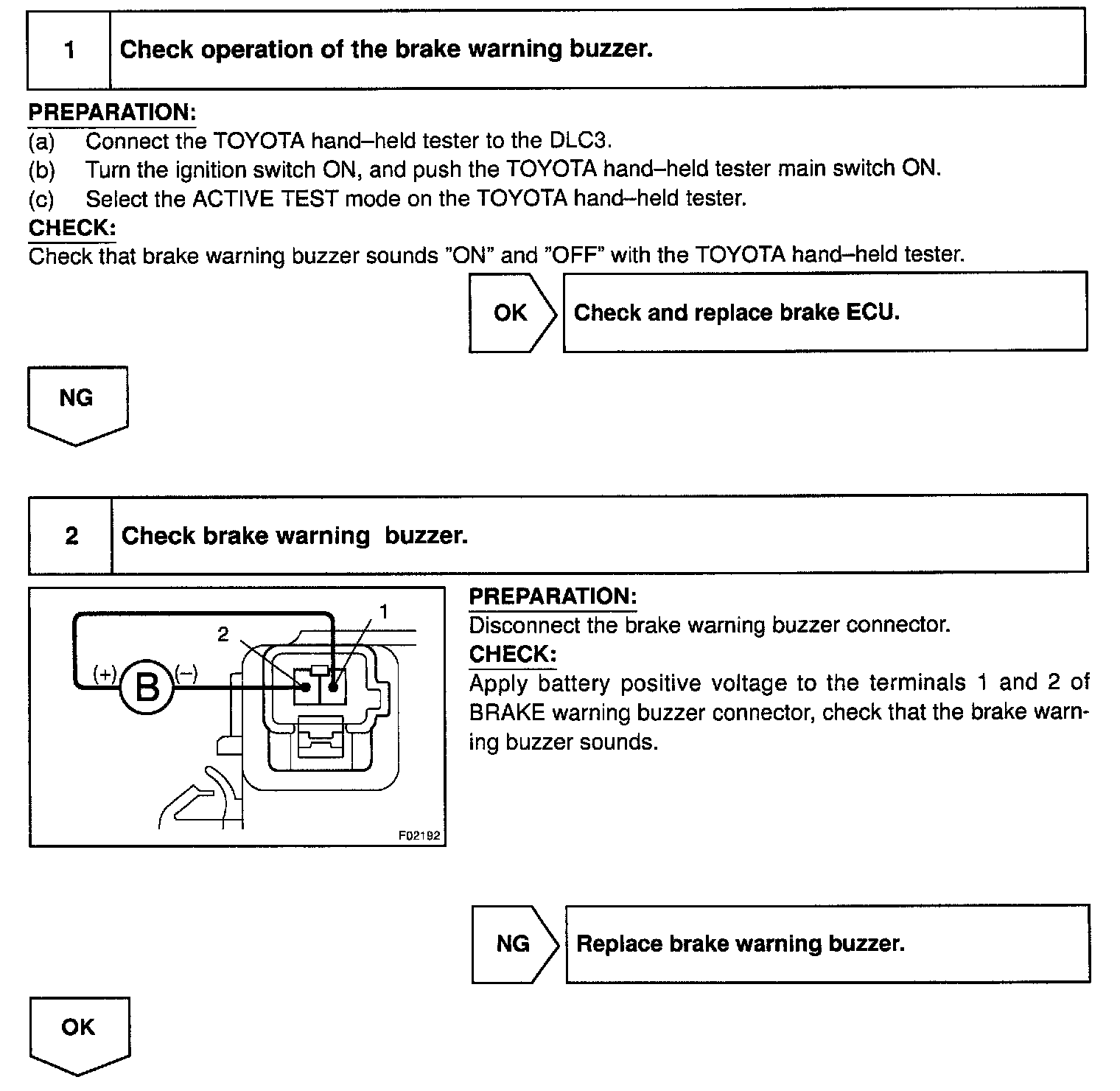

Steps 1 - 2:

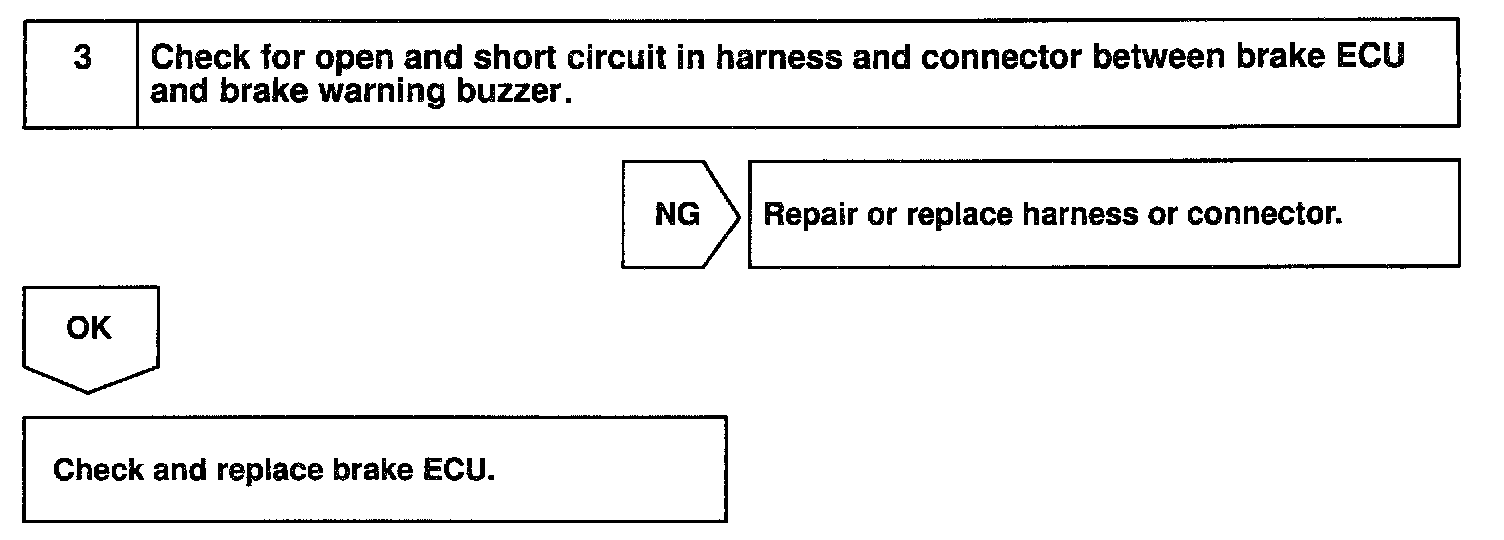

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the TOYOTA hand-held tester and start from step 2 in case of not using the TOYOTA hand-held tester.
