Hydraulic Control Assembly - Antilock Brakes: Service and Repair

REMOVAL
1. REMOVE OUTER FROM COWL TOP PANEL
2. REMOVE CONVERTER AND INVERTER ASSEMBLY

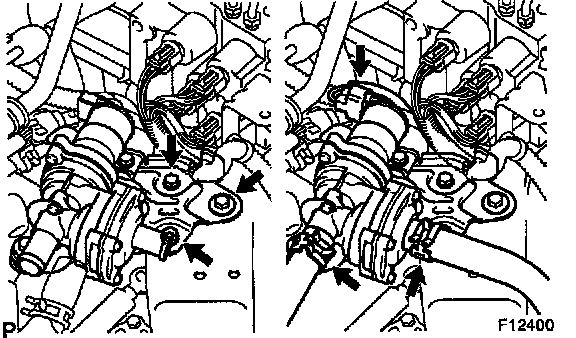

3. REMOVE WATER VALVE
(a) Disconnect the connector and 2 hoses from water valve.
(b) Remove the 3 bolts and water valve assembly.
Torque: 19 Nm (195 kgf-cm, 15 ft. lbs.)

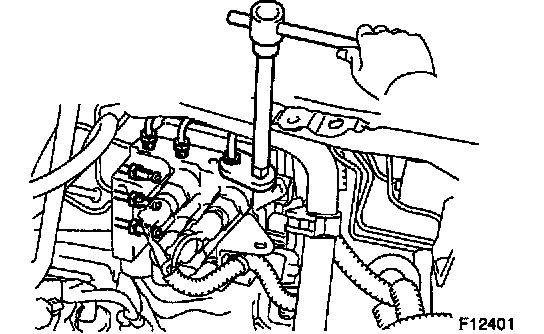

4. DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
5. DISCONNECT 3 CONNECTORS
6. REMOVE BRAKE ACTUATOR

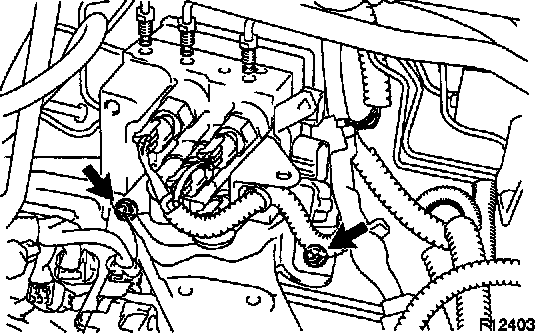

(a) Remove the 2 nuts and brake actuator assembly.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
(b) Remove the 3 bolts and brake actuator from the actuator bracket.
Torque: 11 Nm (120 kgf-cm, 8 ft. lbs.)
(c) Remove the 3 spacers and 3 cushions.





(d) Disconnect 4 connectors and 2 clips from the brake actuator.

NOTICE:
At the time of installation, please refer to the following item.

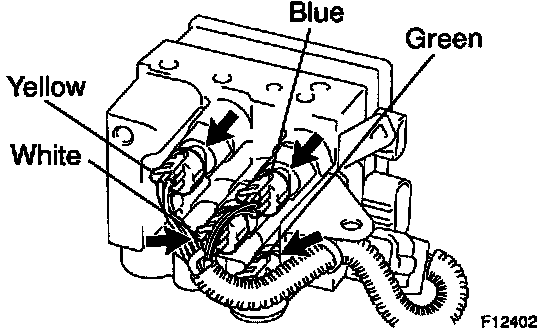

Install the connectors according the colors specified in the illustration.

(e) Remove 2 bolts and 2 brackets from the brake actuator.
Torque: 16 Nm (163 kgf-cm, 12 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill the brake reservoir with brake fluid and bleed brake system.
^ Check for leaks.
