Symptom Related Diagnostic Procedures

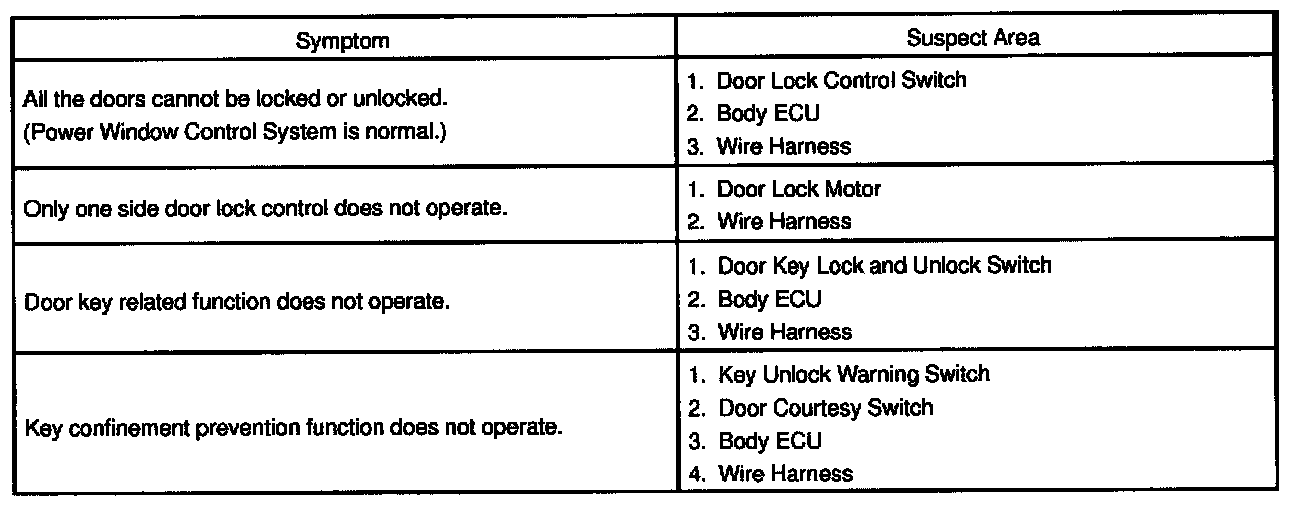

Problem Symptoms Table - Power Door Lock Control System:

POWER DOOR LOCK CONTROL SYSTEM
This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
